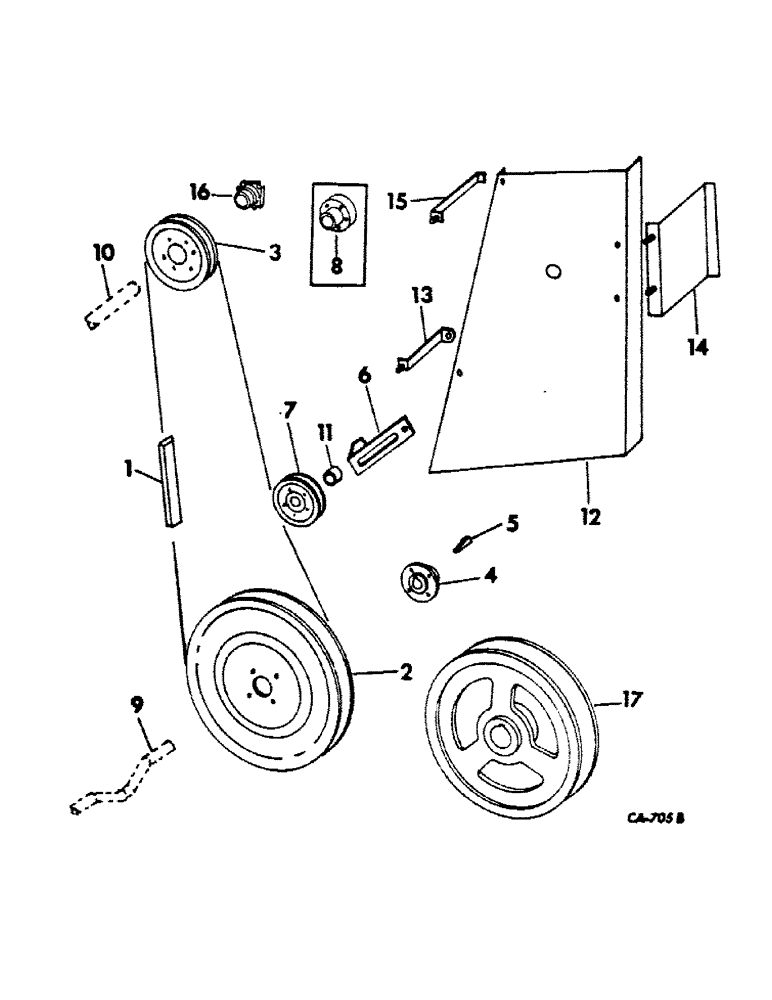

Запчасти Case IH 914 (23-08) - GRAIN PAN SHOE AND SHOE SIEVE, SHAKER SHAFT DRIVE Grain Pan, Shoe & Shoe Sieve

1

564494R2

V-BELT,0.88" W

Shaker shaft drive, Standard 265 rpm 0.88" W

1шт.

1

632702R1

V-BELT,0.88" W

Shaker shaft drive, Special fast speed 280 rpm 0.88" W

1шт.

2

167727C21

PULLEY ASSY, shaker shaft driven, 19.19 in OD, standard 265 RPM

1шт.

2

167728C21

PULLEY

ASSY, shaker shaft driven, 18.24 in OD, special fast speed 280 RPM

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

160446C11

PULLEY

ASSY, shaker shaft drive 7.04 in dia

1шт.

4

160757C2

HUB

shaker shaft driven pulley

1шт.

5

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2 gib

1шт.

6

160753C2

BRACKET, shaker shaft drive belt tightener pulley

1шт.

7

570265R91

PULLEY

ASSY, shaker shaft drive belt tightener, 7 OD

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 C-Z sq-nk crg

1шт.

124847

COLLAR

5/8 C-Z hex. jam

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

25/32 x 1-1/4 x 12 ga C-Z sq

1шт.

8

167729C2

HUB, shaker shaft drive pulley, serial no. 897 and below

1шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 znd hex-hd mach

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

9

SHAFT ASSY, shaker, refer to grain pan and shaker shaft unit for listing

1шт.

10

SHAFT ASSY, cylinder beater, refer to cylinder beater, grate and concave unit for listing

1шт.

11

450492R1

SPACER,1/2" Pipe x 1"

shaker shaft drive belt tightener bracket 1 in long, serial no. 897 and below

1шт.

11

VA17298

SPACER, shaker shaft drive belt tightener bracket 1-1/16 in long, serial no. 898 and above

1шт.

12

171790C1

SHIELD, shaker shaft drive

1шт.

159700C1

NUT

5/16 C-Z wing

4шт.

13

171792C11

SUPPORT ASSY, shaker shaft drive shield lower

1шт.

14

171791C11

SUPPORT ASSY, shaker shaft drive shield upper front

1шт.

15

171793C11

SUPPORT ASSY, shaker shaft drive shield top

1шт.

16

172301C1

HUB

shaker shaft drive pulley, serial no. 898 and above

1шт.

17

175226C1

PULLEY, shaker shaft driven, 10 in OD, special fast speed 389 to 778 RPM

1шт.
