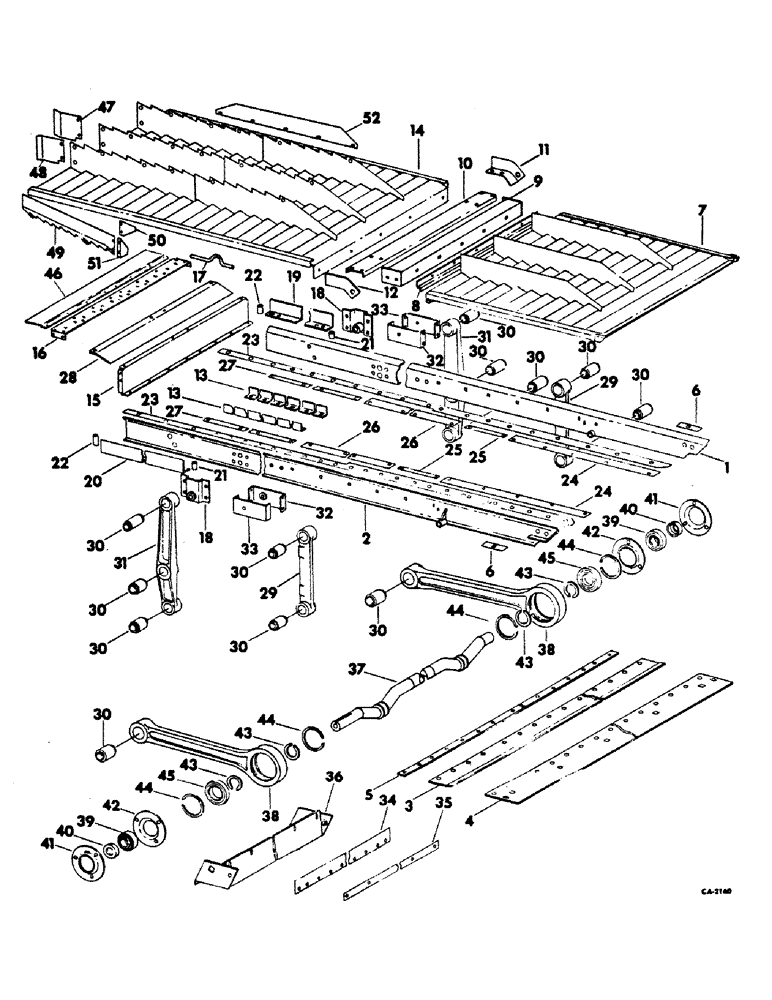

Запчасти Case IH 914 (23-05) - GRAIN PAN SHOE AND SHOE SIEVE, GRAIN PAN AND SHAKER SHAFT, SERIAL NUMBER 1440 AND ABOVE Grain Pan, Shoe & Shoe Sieve

1

175060C1

RAIL

ASSY, grain pan LH side

1шт.

2

175061C1

RAIL

ASSY, grain pan RH side

1шт.

3

158069C1

SEAL

grain pan front

1шт.

4

158071C1

BAR

grain pan front seal

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd mach

15шт.

445117

DIODE

1/4 PHC spring

15шт.

5

175067C1

SUPPORT, grain pan front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

175068C1

RETAINER, grain pan side rail

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

.344 x .75 x .12 C-Z

4шт.

7

175078C1

DOOR ASSY.

DOOR ASSY, grain pan bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

8

175095C1

RETAINER, grain pan bottom door

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

9

175099C1

SUPPORT ASSY, grain pan cross

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

172801C1

CHANNEL

grain pan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

172793C1

ANGLE

grain pan pivot LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

172794C1

ANGLE

grain pan pivot RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

175101C1

ANGLE, grain pan bottom support

2шт.

16897C1

BOLT, 5/16 x 3/4 C=Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

14

175107C1

BOTTOM

ASSY, grain pan

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z pan-hd mach

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z pan-hd mach

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

15

175111C1

SUPPORT, grain pan finger front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

175113C1

SUPPORT, grain pan finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

175114C1

FINGER,Formed, 1 Prong, 264mm L

grain pan

13шт.

18

172789C1

PIVOT

ASSY, grain pan rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

175116C1

SUPPORT

chaffer sieve LH

1шт.

20

175117C1

SUPPORT

chaffer sieve RH

1шт.

21

938828R1

SPACER

chaffer sieve support front

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

614452R1

WASHER

13/32 x 1-U04 x 11 ga C-Z

2шт.

22

172807C1

SPACER

chaffer sieve support rear

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

175125C1

SEAL

grain pan side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap washer faced

54шт.

24

175126C1

BAR

grain pan side rail seal front

2шт.

25

175127C1

BAR, grain pan side rail seal front center

2шт.

26

175128C1

BAR, grain pan side rail seal rear

2шт.

27

175129C1

BAR, grain pan side rail seal rear

2шт.

28

175130C1

SEAL, grain pan face

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

175131C91

ARM ASSY.

ARM ASSY, grain pan front hanger, includes ref. no. 30

2шт.

223517

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3 C-Z hex-hd type 8

2шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 C-Z hex-hd type 8

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

4шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

grain pan and shoe lever

10шт.

31

175133C91

LEVER

ASSY, grain pan and shoe, includes ref. no. 30

2шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 C-Z hex-hd type 8

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

4шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

16шт.

18574R1

BOLT,Short NK, 5/8"-11 x 3 1/2", G2

5/8 x 3-1/2 C-Z sq-nk crg

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

2шт.

32

175137C1

SUPPORT ASSY, grain pan pivot inner

2шт.

33

175140C1

SUPPORT, grain pan pivot outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

34

158083C1

SEAL

feeder housing lower

1шт.

35

175142C1

BAR, feeder housing lower seal

1шт.

450629

SCREW, 1/4 x 7/8 C-Z pan-hd mach

9шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

9шт.

30

165524C91

SUPPORT ASSY, grain pan front seal

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd self tap

2шт.

37

582754R91

SHAFT

ASSY, shaker

1шт.

38

175183C91

PITMAN W/BUSHING, shaker shaft, includes ref. no. 30

2шт.

39

939475R91

BEARING

ASSY, shaker shaft ball

2шт.

40

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

41

470745R91

FLANGED BEARING

FLANGE W/STR LUB FITTING SHAKER SHAFT BEARING

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

42

470746R1

FLANGE

shaker shaft brg grooved

2шт.

43

359894R1

RING, SNAP

RING, shaker shaft pitman brg ext-snap

4шт.

44

UA20551

RING

shaker shaft pitman brg int-snap

4шт.

45

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

46

172818C1

COVER

grain pan finger

1шт.

47

175188C1

SHIELD

chaffer divider LH

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange whiz lock

3шт.

48

175189C1

SHIELD, chaffer divider RH

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange whiz lock

3шт.

49

175193C1

RISER ASSY

2шт.

50

175187C1

DEFLECTOR, rubber

2шт.

51

175186C1

DEFLECTOR

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znd slt-pan-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

52

175192C1

EXTENSION, grain pan divider

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-z slt-tr-hd

12шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange whiz lock

12шт.
