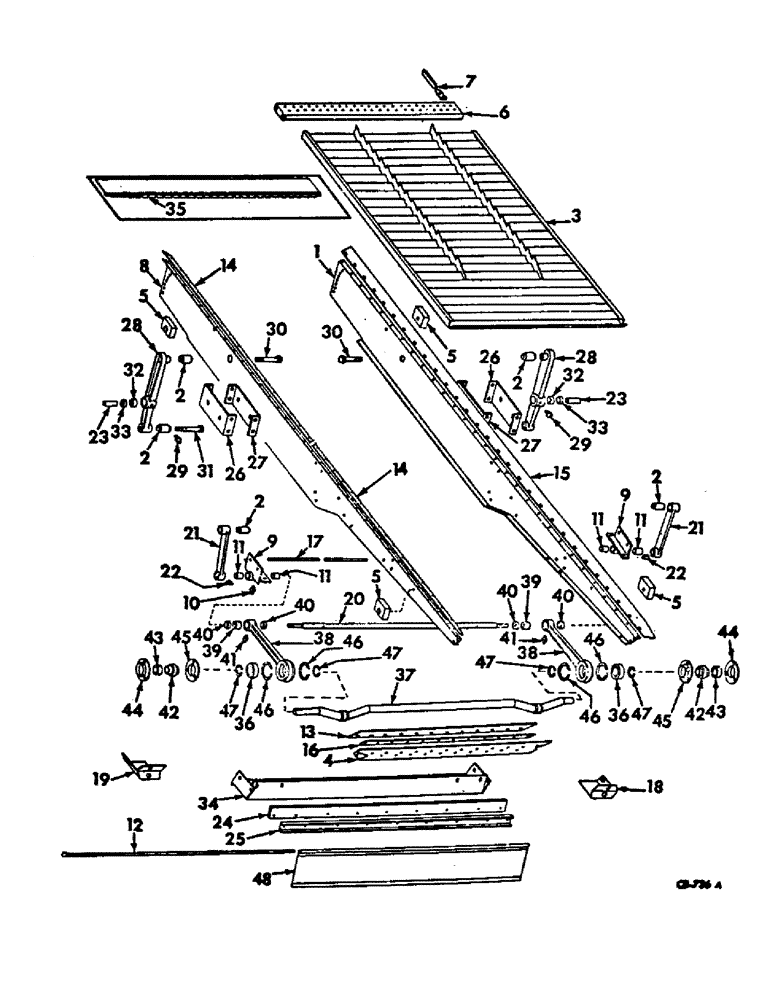

Запчасти Case IH 914 (23-02) - GRAIN PAN SHOE AND SHOE SIEVE, GRAIN PAN AND SHAKER SHAFT, SERIAL NUMBER 1439 AND BELOW Grain Pan, Shoe & Shoe Sieve

169871C91

PAN ASSY, grain, includes ref nos. 1 thru 19

1шт.

1

169872C91

RAIL ASSY, grain pan left, includes ref no. 2

1шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, grain pan hanger

4шт.

3

158047C92

BOTTOM

ASSY, grain pan

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

13шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

11шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

4

158057C1

REINFORCEMENT, grain pan frt

1шт.

5

158058C1

BOARD, grain pan rail

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

6

158060C1

REINFORCEMENT, grain pan finger

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

155214C1

FINGER

grain pan

14шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

28шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

28шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

28шт.

8

169873C91

RAIL ASSY, grain pan right, includes ref no. 2

1шт.

9

158063C91

HUB ASSY, grain pan support, includes ref no. 11

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28PTF str lub

2шт.

11

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

grain pan frt shaft hub

4шт.

120376

NUT,5/16"-18, G5

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

157177C1

ROD

grain pan check flap

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

158069C1

SEAL

grain pan frt

1шт.

14

158073C1

BAR, grain pan side seal

4шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap. washer face

56шт.

20824R1

WASHER

11/32 x 1-1/2 x 16 ga C-Z

2шт.

15

158072C1

SEAL

grain pan side

2шт.

16

158071C1

BAR

grain pan frt seal

1шт.

NLS

NO LONGER SERVICED

1/4-20 spring type-1B

15шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan hd mach

15шт.

17

158075C1

ROD, grain pan bottom cross

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

162010C1

FILLER, grain pan left

1шт.

19

162011C1

FILLER, grain pan right

1шт.

20

158077C1

SHAFT, grain pan frt

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

4шт.

20798R1

WASHER

1-1/32 x 2 x 16 ga C-Z

8шт.

21

158078C11

ARM ASSY, grain pan frt, includes ref no. 2

2шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex

2шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

SCREW, 5/8 x 2-3/4 C-Z hex-hd cap

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.

22

106751

KEY

3/16 x 3/4 woodruff

2шт.

23

158079C1

BUSHING

grain pan hanger arm

2шт.

24

158083C1

SEAL

feeder housing lower

1шт.

25

168596C1

CHANNEL, feeder housing lower seal

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 7/8 C-Z slt-pan-hd mach

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

9шт.

26

160334C1

REINFORCEMENT, grain pan rear lever outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

160334C11

REINFORCEMENT ASSY, grain pan rear lever inner

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21908R1

WASHER, 21/32 x 1-3/4 x 12 ga C-Z

2шт.

28

158085C11

LEVER ASSY, grain pan rear, includes ref nos. 32 and 33

2шт.

29

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 PTF 90 deg angle lub

2шт.

30

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld type 4

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 C-Z sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 C-Z slt hex

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

5шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

31

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld type 4

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 C-Z slt hex

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

32

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING ASSY, grain pan rear lever needle

4шт.

33

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

ASSY, grain pan lever oil

4шт.

34

165524C91

SUPPORT ASSY, grain pan frt seal & lower feeder

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

35

160219C2

COVER, grain pan finger, optional equipment

1шт.

36

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

37

582754R91

SHAFT

ASSY, shaker

1шт.

38

150863C11

PITMAN ASSY, shaker shaft, includes ref. nos. 39 and 40

2шт.

39

584164R91

NEEDLE BEARING

shaker shaft pitman needle

2шт.

40

584912R91

OIL SEAL

shaker shaft pitman bearing oil

4шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

42

939475R91

BEARING

ASSY, shaker shaft ball

2шт.

43

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

44

470745R1

FLANGE W/STR LUB FITTING SHAKER SHAFT BEARING

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

45

470746R1

FLANGE

shaker shaft brg grooved

2шт.

46

359894R1

RING, SNAP

RING, shaker shaft pitman brg ext-snap

4шт.

47

UA20551

RING

shaker shaft pitman brg int-snap

4шт.

48

582606R21

FLAP

ASSY, grain pan check

1шт.
