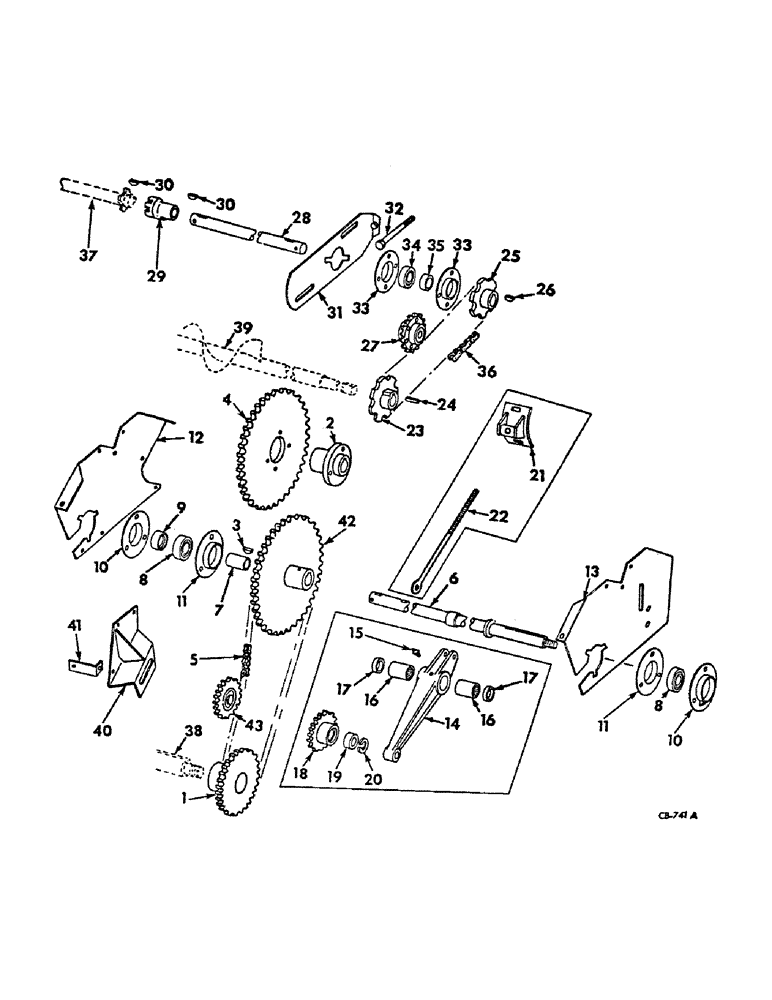

Запчасти Case IH 914 (25-06) - ELEVATORS, GRAIN ELEVATOR DRIVE Elevators

1

160237C91

SPROCKET ASSY.

SPROCKET ASSY, elev jackshaft drive 25T

1шт.

2

160622C1

HUB, elev jackshaft driven sprocket

1шт.

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

557266R1

WASHER, 15/32 x 1-3/4 x 16 ga

4шт.

3

124554

O-RING

5/16 x 1 Woodruff, hard

1шт.

4

160621C1

SPROCKET, elevator jackshaft driven 47T, serial no. 897 and below

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

CHAIN ASSY, elevator jackshaft drive, used 75 links from 10 ft roll marked 1793D and one connecting link 1786D

1шт.

6

160623C11

SHAFT

JACKSHAFT ASSY, elev dr, s.n. 897 & below

1шт.

6

172460C11

SHAFT

JACKSHAFT ASSY, elev dr, s.n, 898 & above

1шт.

22244R1

LOCK NUT

3/4 C-Z hex, nylon insert lock

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

20855R1

WASHER, 1-5/32 x 2 x 16 ga C-Z

7шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

2шт.

557274R1

WASHER

1-5/32 x 2 x 11 ga

1шт.

7

174439C1

SPACER, elevator jackshaft left

1шт.

8

939475R91

BEARING

ASSY, elevator jackshaft ball, serial no. 897 and below

2шт.

9

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, elevator jackshaft ball, serial no. 898 and above

2шт.

9

557115R11

COLLAR

COLLAR W/SET SCREW, jackshaft LH crg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/15 x 5/16 hex-soc-hd-cup pt set

1шт.

10

939460R91

FLANGE

W/65 DEG LUB FITTING JACKSHAFT

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

939461R1

FLANGE

jackshaft brg grooved

2шт.

12

169212C1

SUPPORT

jackshaft bearing inner

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

13

169289C1

SUPPORT, jackshaft brg outer

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

160678C11

LEVER W/BRG AND SEAL, jackshaft chain idler, serial no. 897 & below, includes ref nos. 16 and 17

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 897 and below 1/8"-27 x .66 lg

1шт.

16

454256R91

BEARING CUP,Needle, 28.56mm ID x 38.11mm OD x 19.05mm W

ASSY, chain idler lever, serial no. 897 and below

2шт.

17

460550R91

OIL RESERVOIR

SEAL, chain idler lever oil, serial no. 897 and below

2шт.

21885R1

WASHER

1-1/32 x 2 x 16 ga C-Z

8шт.

18

160679C91

SPROCKET ASSY, jackshaft driven chain tightener 16T, includes ref. no. 19, serial no. 897 and below

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga C-Z sq-hole

1шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, jackshaft drive chain tightener sprocket ball, serial no. 897 and below

1шт.

20

571393R1

SNAP RING

RING, jackshaft tightener sprkt snap, serial no. 897 and below

2шт.

21

160750C91

SUPPORT ASSY, jackshaft drive chain tightener draw bolt pivot, serial no. 897 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

160749C1

BOLT

jackshaft drive tightener draw, serial no. 897 and below

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-3/8 C-Z rod end

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

23

167448C1

SPROCKET ASSY, grain elevator drive 22T

1шт.

24

Q53

KEY,1/4" Sq x 1", Par

1шт.

25

167449C1

SPROCKET ASSY.

SPROCKET ASSY, grain elevator driven 16T

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

2шт.

26

113782

KEY

1/4 x 1 Woodruff

1шт.

27

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, grain elevator drive chain tightener 17T

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

M83536

WASHER

17/32 x 1-1/4 x 11 ga sq

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

28

160692C1

SHAFT

grain elevator drive ext

1шт.

29

939108R1

COUPLING

grain elevator drive extension shaft female

1шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

1/2 x 2-1/4 znd hex-hd mach

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

30

113782

KEY

1/4 x 1 Woodruff

2шт.

31

160428C11

SUPPORT

ASSY, grain elevator drive ext shaft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

grain elevator drive adj

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

33

155265C1

FLANGE

grain elev drive ext shaft brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING ASSY, grain elevator drive ext shaft ball

1шт.

35

564853R11

COLLAR

W/SET SCREW LKG

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

1шт.

36

CHAIN ASSY, grain elevator drive, grain tank extension for 120 bushel, use 53 links from 10 ft roll marked 1791D, one connecting link 1310D and two offset links 1315D

1шт.

36

CHAIN ASSY, grain elevator drive, grain tank extension for 150 bushel, use 45 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

37

HEADSHAFT, grain elevator, refer to grain elevator unit for listing

1шт.

38

SHAFT, cylinder beater, refer to cylinder beater grate and concave unit for listing

1шт.

39

AUGER, grain tank distributor, refer to grain tank extension and distributor auger unit for listing

1шт.

40

172461C1

BRACKET

ASSY, elev jackshaft dr chain, serial no. 898 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

41

174833C1

BRACE, elev jackshaft tightener bracket tightener, serial no. 898 & above

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z slt-tr-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT, 3/8 x 1 C-Z slt-tr-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

42

172465C1

SPROCKET ASSY.

SPROCKET ASSY, elev jackshaft driven 45T, serial no. 898 and above

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 hex. jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq-hd set

1шт.

43

154113C91

DRIVE SPROCKET

SPROCKET ASSY, jackshaft drive chain tightener 16T, serial no. 898 and above

1шт.
