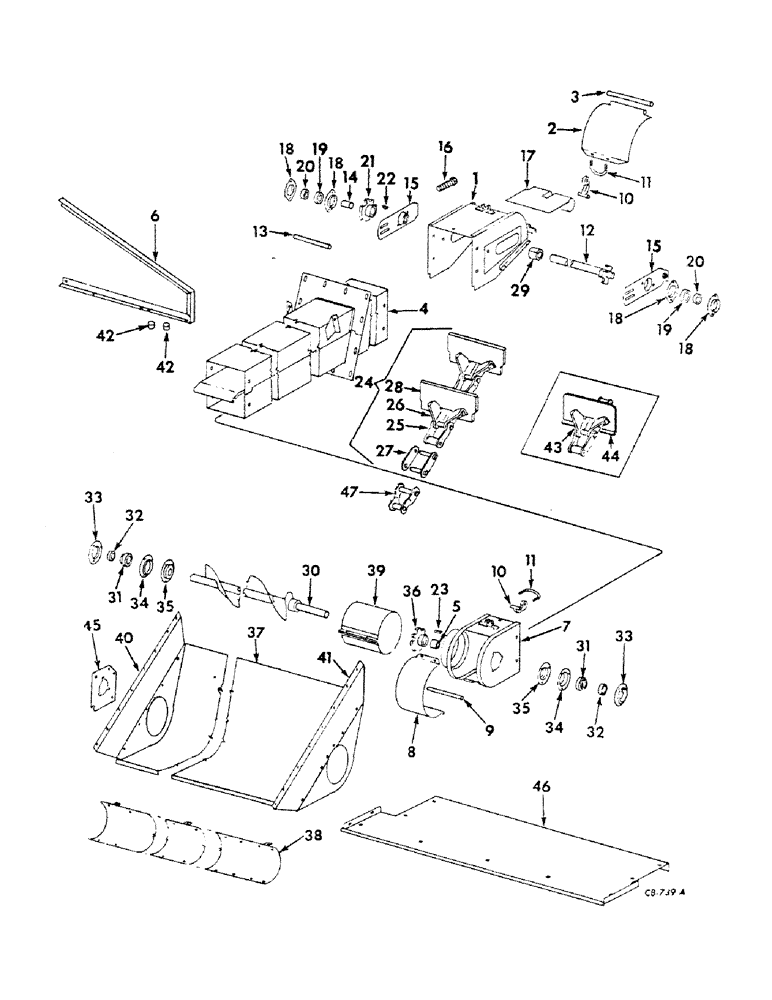

Запчасти Case IH 914 (25-02) - ELEVATORS, GRAIN ELEVATOR Elevators

1

160732C91

HEAD

ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

160737C1

DOOR

grain elevator hd

1шт.

3

160743C1

PIN

ROD, grain elevator hd door hinge

1шт.

4

169333C1

HOUSING ASSY, grain elevator, for standard grain tank

1шт.

4

169344C1

HOUSING ASSY, grain elevator, for high capacity grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

106969R1

WASHER

.344 x 1-1/4 x 16 ga C-Z

6шт.

5

157207C1

SPACER

grain auger

1шт.

6

160786C1

SUPPORT, grain elevator

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

160739C91

BOOT

ASSY, grain elevator, serial no. 897 and below

1шт.

7

160744C92

BOOT

ASSY, grain elevator, serial no. 898 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .68 x .06

2шт.

8

160741C1

DOOR

grain elevator boot, serial no. 897 and below

1шт.

8

160747C1

DOOR

grain elevator boot, serial no. 898 and above

1шт.

8

160742C1

DOOR

grain elevator boot, perforated, serial no. 897 and below

1шт.

8

174194C1

DOOR

grain elevator boot, perforated, serial no. 898 and above

1шт.

9

160743C1

PIN

grain elevator boot door hinge, serial no. 897 and below

1шт.

9

160748C1

PIN

grain elevator boot door hinge, serial no. 898 and above

1шт.

10

155909C1

LATCH

grain elevator door

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

2шт.

11

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, grain elevator door

2шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 lock

4шт.

12

170540C1

SHAFT

ASSY, grain elevator head

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

6шт.

13

160431C1

PIPE

SPACER, grain elevator hd

1шт.

14

160695C1

SPACER

grain elevator hd shaft sprocket LH

1шт.

15

170584C11

BRACKET

ASSY, grain elevator hd shaft brg

2шт.

19389R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9", Gr 2

BOLT, 5/16 x 9 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

1-1/32 x1 x 16 ga C-Z

2шт.

16

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

grain elevator hd shaft

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

17

160697C1

SHIELD

grain elevator hd

1шт.

18

155265C1

FLANGE

grain elevator hd shaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, grain elevator hd shaft

2шт.

20

564853R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

21

168683C1

SPROCKET

grain elevator conveyor chain upper 7T

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

155308C1

KEY

1/4 x 1-5/16 sq parallel

1шт.

24

160698C91

CONVEYOR

W/FLIGHT, grain elevator, for standard grain tank ext

1шт.

24

169374C91

CONVEYOR

W/FLIGHT, grain elevator, for high capacity grain tank ext

1шт.

25

588566R91

LINK

grain elevator conveyor chain roller

1шт.

26

150722C91

LINK

grain elevator conveyor chain attaching

1шт.

27

588564R11

LINK

grain elevator conveyor chain connecting

1шт.

28

160709C91

RUBBER FLIGHT

FLIGHT ASSY, grain elevator conveyor

1шт.

581290R1

RIVET

conveyor chain flight

2шт.

29

157207C1

SPACER

grain elevator headshaft sprocket right

1шт.

30

160676C91

AUGER

ASSY, grain

1шт.

31

165333C91

BALL BEARING

BEARING ASSY, grain auger ball

2шт.

32

564853R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt

1шт.

33

937518R91

FLANGE

W/STR LUB FITTING, grain auger brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

34

937517R1

FLANGE

grain auger brg grooved

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

35

589389R1

CYLINDER END CAP

SHIELD, grain auger brg

2шт.

36

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator conveyor chain lower 6T

1шт.

37

157212C92

TROUGH ASSY, grain auger

1шт.

37

161911C91

TROUGH ASSY, grain auger, perforated

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

18шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

26шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

26шт.

38

161914C11

COVER

ASSY, grain auger trough

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

39

162120C91

CLAMP

ASSY, grain auger trough

1шт.

39

168008C1

CLAMP

ASSY, grain auger trough, perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

169732C11

DEFLECTOR ASSY, grain auger trough LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

120376

NUT,5/16"-18, G5

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

41

169733C11

DEFLECTOR ASSY, grain auger trough RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

42

482372R1

SPACER, grain elevator support

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

43

150722C91

LINK

attachment

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 rd-hd

2шт.

44

160710C91

STEEL FLIGHT

FLIGHT ASSY, grain elevator chain, steel

1шт.

45

157168C1

SUPPORT

REINFORCEMENT, grain auger trough end LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

46

157220C1

SECTION, grain auger trough bottom rear ext

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

47

588562R91

CHAIN LINK

LINK, grain elevator conveyor offset

1шт.
