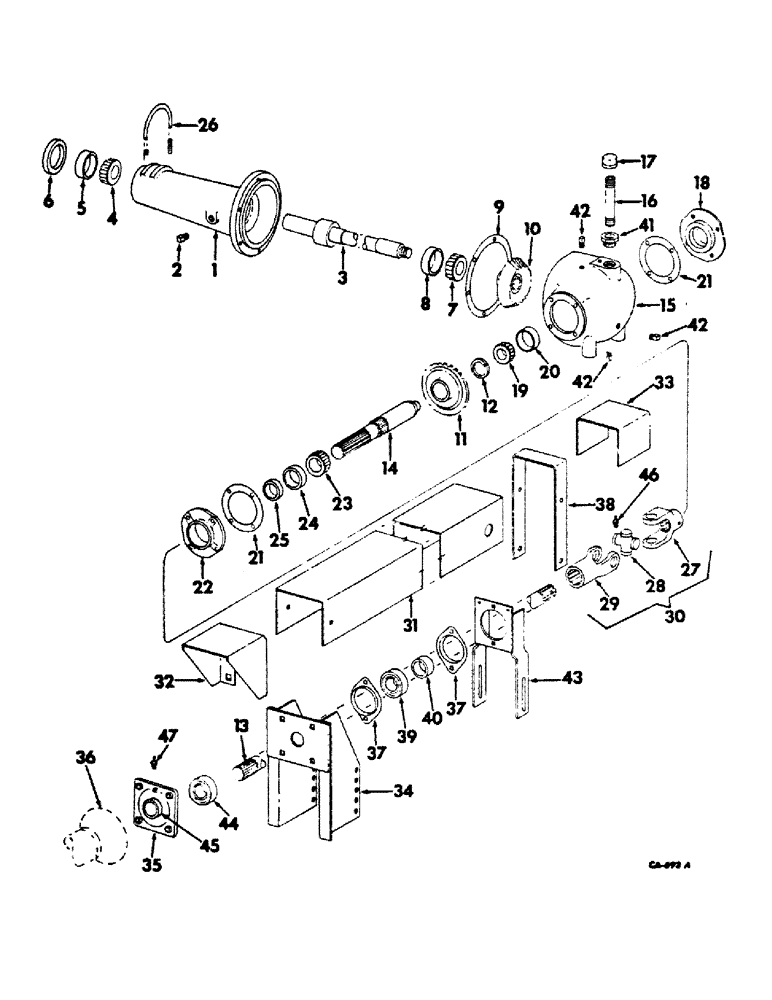

Запчасти Case IH 914 (07-2) - DRIVE TRAIN, MAIN DRIVE GEAR CASE Drive Train
№
Артикул
Название
Примечание
Количество
169907C91
CASE ASSY, main drive, includes ref. nos. 2 thru 12, 20 thru 25, 41 and 42
1шт.
1
169908C1
HOUSING, main drive output shaft
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 znd hex-hd cap
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
2
444619
PIPE CLAMP
PLUG, 1/4-18 C-Z hex-hd pipe
1шт.
3
169909C1
SHAFT ASSY, main drive output
1шт.
427646
SLOTTED NUT,7/8"-14, G5
NUT, 7/8-14 C-Z slt. hex.
1шт.
137214
COTTER PIN
1/8" x 1-3/4"
1шт.
21846R1
WASHER, 2-/32 x 2 x 3 ga, C-Z
1шт.
4
160558C91
BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"
main drive output shaft outer cone
1шт.
5
478793R1
BEARING CUP
BEARING, main drive output shaft outer cup
1шт.
6
169948C91
SEAL
main drive output shaft outer brg oil
1шт.
7
13330DB
BEARING
ASSY, main drive output shaft inner cone
1шт.
8
13324D
BEARING CUP,2.391" ID x 3.001" OD x 0.952"
main drive output shaft inner cup
1шт.
9
673359R91
KIT
gear case large shim
1шт.
10
472890R2
GEAR
main driven 21T
1шт.
11
169915C1
GEAR, main drive 21T
1шт.
12
169916C1
SNAP RING
RING, main drive gear retainer
1шт.
13
169926C1
SHAFT
PTO drive
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21992R1
HEADED PIN,5/16" x 2 3/4"
PIN, 5/16 x 2-3/4 znd std-hd dld
1шт.
14
169918C1
SHAFT
main drive output
1шт.
15
674403R1
HOUSING
CASE, main drive gear
1шт.
19532R1
BOLT,Hex, 3/8" - 16 x 1/2", Gr 2
3/8 x 1/2 znd hex-hd mach
1шт.
18821R1
BOLT
5/8 x 1-1/4 znd hex-hd mach
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
121524
WASHER, 5/8 C-Z med lock
2шт.
16
192078
NIPPLE, LUBE,Nipple, 1/2" NPT x 3"
NIPPLE, 1/2 x 3 C-Z pipe
1шт.
17
169919C1
CAP, gear case filler and vent
1шт.
18
466298R1
COVER, main drive gear case
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 znd hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
19
573324R91
ROLLER BEARING,1" ID
ASSY, main drive input shaft gear cone
1шт.
20
642954R1
BEARING ASSY,1" ID x 2.441" OD x 0.8125"
BEARING, main drive input shaft rear cup
1шт.
21
673358R91
PACKAGE
KIT, gear case small shim
1шт.
22
169923C1
CAP
gear case front brg
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 znd hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
23
459454R91
ROLLER BEARING,1.563" ID x 1.01"
BEARING ASSY, gear case front cup cone
1шт.
24
13324D
BEARING CUP,2.391" ID x 3.001" OD x 0.952"
gear case front cup
1шт.
25
385766R91
OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk
SEAL, gear case front brg oil
1шт.
26
169924C1
BOLT,1/2" - 13 x 4.50" W x 5.50" L
U-BOLT, main drive gear case
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
27
171859C1
YOKE
Rockwell
1шт.
27
173851C1
YOKE, Dana
1шт.
28
493849R91
KIT
center cross, Rockwell
1шт.
28
154073H1
KIT
center cross, Dana
1шт.
29
171860C1
YOKE
Rockwell
1шт.
29
173850C1
YOKE, Dana
1шт.
30
171858C91
JOINT
KNUCKLE ASSY, PTO drive shaft, Rockwell, includes ref. nos. 27, 28 and 29
1шт.
30
173849C91
JOINT
KNUCKLE ASSY, PTO drive shaft, Dana, includes ref. nos. 27, 28 and 29
1шт.
18772R1
BOLT
5/16 x 3-1/2 znd hex-hd mach.
1шт.
231-1445
NUT,5/16"-18, GB
NUT, 5/16 C-Z hex. lock
1шт.
31
169930C1
SHIELD ASSY, PTO drive shaft
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
32
173846C1
SHIELD, PTO drive front
1шт.
33
169935C1
SUPPORT ASSY, PTO drive shield rear
1шт.
34
169940C1
BRACKET ASSY, PTO drive shaft front brg mounting
1шт.
18817R1
BOLT,Hex, 1/2" - 13 x 6", Gr 2
1/2 x 6 znd hex-hd mach
3шт.
18819R1
BOLT (SPREADER),Hex, 1/2"-13 x 8", G2
BOLT, 1/2 x 8 znd hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
35
597502R91
BEARING ASSY,1.375" ID x 2.109375" OD x 2.125"
HOUSING ASSY, PTO drive shaft front brg, includes ref. nos. 44, 45 and 47
1шт.
18708R1
BOLT,Short NK, 1/2"-13 x 1 3/4", G2
1/2 x 1-3/4 znd sq-nk crg
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
36
KNUCKLE W/INTEGRAL SHIELD, refer to power take-off unit for listing
1шт.
37
599382R1
FLANGED BEARING
GLANGE, drive shaft center brg
4шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
4шт.
18812R1
BOLT,Hex, 1/2" - 13 x 3", Gr 2
1/2 x 3 znd hex-hd mach
2шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
38
169946C1
SUPPORT, drive shaft shield rear
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 hex-hd mach
2шт.
19279R1
BOLT, 1/2 x 5-3/4 znd hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
39
571588R91
BALL BEARING
BEARING ASSY, PTO shaft center
2шт.
40
517645R11
COLLAR
W/SET SCREW LKG
2шт.
41
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
BUSHING, 1 x 1/2 reducer pipe
1шт.
42
444571
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG, 1/8-27 C-Z sq-hd
4шт.
43
169937C1
BAR, PTO drive shaft center brg
2шт.
20175R1
BOLT, 1/2 x 6-1/2 znd hex-hd mach
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
44
470597R91
BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"
BEARING, PTO drive shaft front ball
1шт.
45
517645R11
COLLAR
W/SET SCREW, locking
1шт.
46
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg
1шт.
47
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg
1шт.
Выбрано товаров: 98
