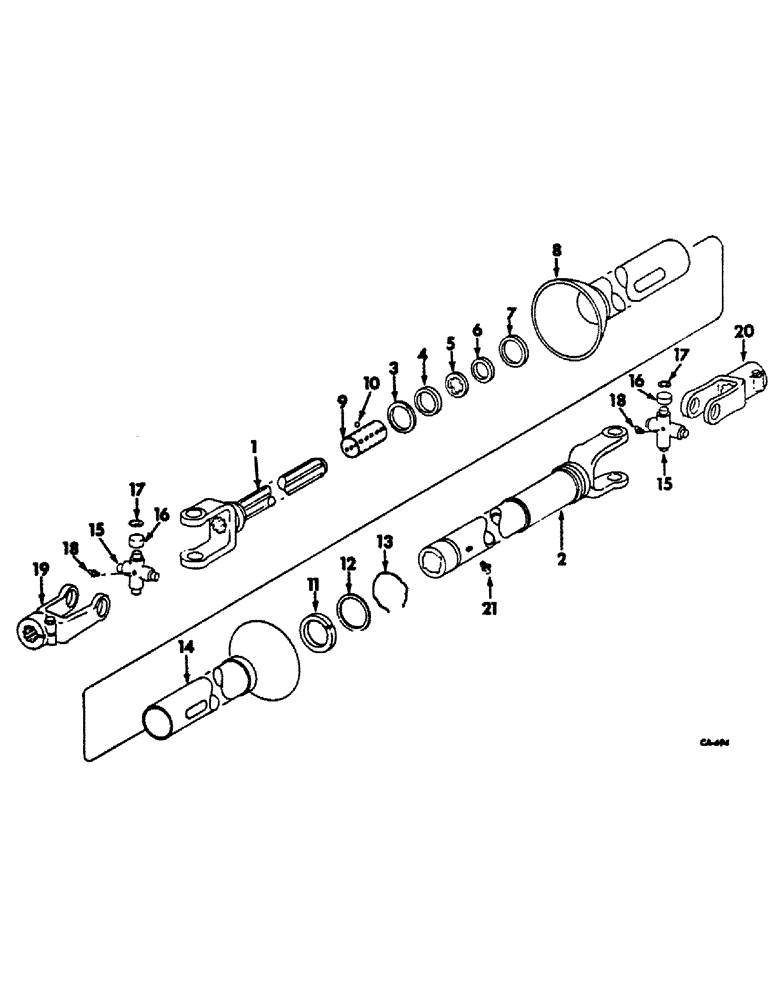

Запчасти Case IH 914 (07-04) - DRIVE TRAIN, POWER TAKE-OFF KNUCKLE, ROCKWELL, WITH METAL SHEILD Drive Train

169944C91

JOINT

KNUCKLE W/INTEGRAL SHIELD, PTO drive, Serial Range: tractor-combine

1шт.

1

170159C2

JOINT, power drive hitch

1шт.

2

170160C2

JOINT

power drive hitch

1шт.

3

631449R1

RING, SNAP

RING, retaining

1шт.

4

631977R1

WASHER, guide

1шт.

5

673157R1

SEAL

1шт.

6

673156R1

WASHER, stop

1шт.

7

613439R1

BRACKET

BEARING, nylon support

1шт.

8

170162C2

SHIELD, outer

1шт.

9

673154R1

GAGE, bail

1шт.

10

673155R1

BALL

steel

24шт.

11

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

BEWARING, nylon

1шт.

12

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

1шт.

13

613436R1

CLAMP

RING, retaining

1шт.

14

170161C1

SHIELD, inner

1шт.

15

347960R91

U-JOINT SPIDER

KIT ASSY, center cross, includes ref. nos. 16, 17 & 18

2шт.

16

669563R91

NEEDLE BEARING

CUP ASSY, needle

8шт.

17

495962R1

RING

snap

8шт.

18

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

19

169950C1

YOKE

power drive hitch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 znd hex-hd cap

1шт.

131101

LOCK WASHER

1/2"

1шт.

20

169949C1

YOKE

power drive hitch

1шт.

120371

NUT,1/2"-20, G5

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

SCREW, 1/2 x 2-3/4 znd hex-hd cap

1шт.

131101

LOCK WASHER

1/2"

1шт.

21

102467H

FITTING

1/4-28NF-2 straight

1шт.
