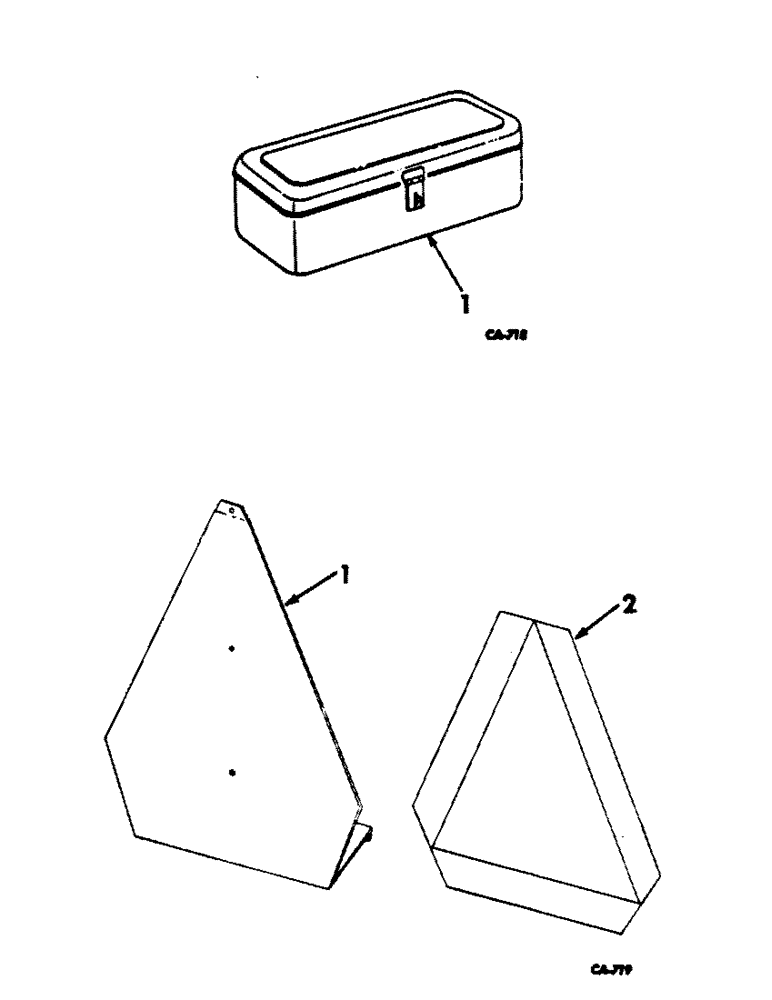

Запчасти Case IH 914 (02-06) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous

1

400455R1

BOX, TOOL

BOX ASSY, tool

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

19289R1

BOLT, 1/2 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

1

170508C1

SUPPORT, slow moving vehicle emblem, serial no. 725 and below

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 C-Z hex-hd tapping type B, slow moving vehicle

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

slow moving vehicle emblem

1шт.

547494R91

DECAL

KIT, product graphic, trademark IH, product graphics delcomanias

1шт.

547495R91

DECAL

KIT, product graphic, IH International, product graphics delcomanias

1шт.

547497R91

PACKAGE

KIT, product graphic, model designation, product graphics delcomanias

1шт.

174732C1

REFLECTOR

amber, product graphics delcomanias

1шт.

175311C1

REFLECTOR

red, product graphics delcomanias

1шт.

173039C91

KIT

product graphics delcomanias

1шт.

KIT, product graphic service, consists of the following, product graphic, chain diagram windrow special, product graphic, belt & chain dia LH, product graphic, belt & chain dia RH, product graphic, fan speed control, product graphic, concave clearance, product graphic, switch box control, product graphic, windrow special, product graphic, safety & operating ins, (2) product graphic, safety, (2) product graphic, wheel bolt nut torque, product graphic, danger keep off mach, product graphic, danger do not ride

1шт.
