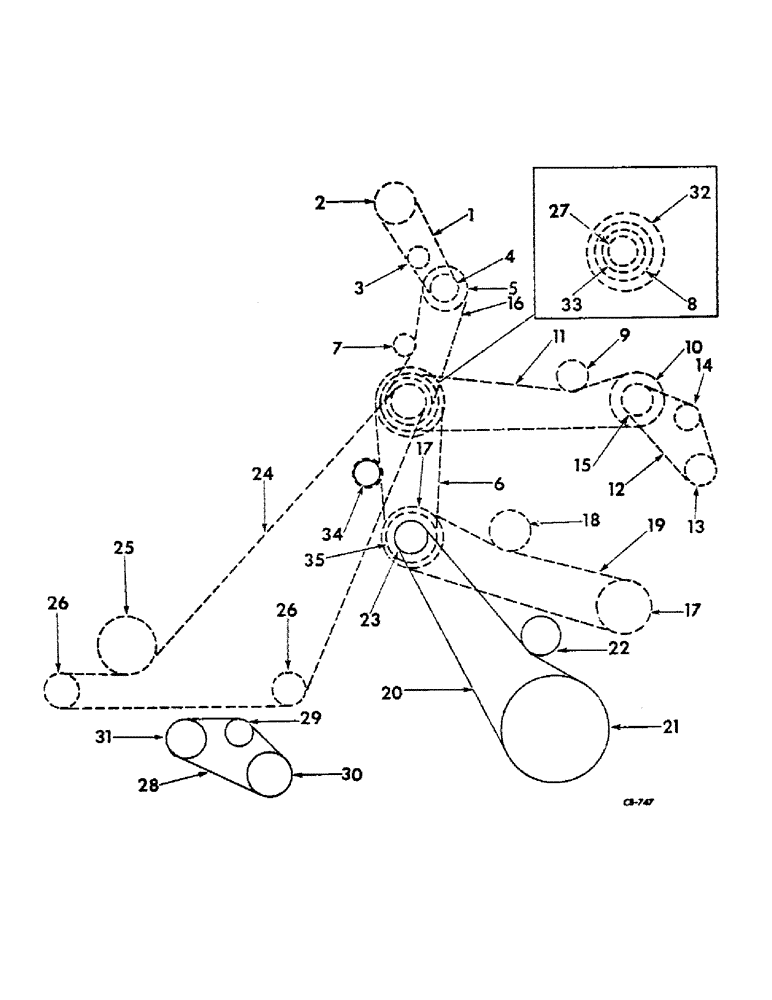

Запчасти Case IH 914 (02-04) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE Accessories & Attachments / Miscellaneous

1

CHAIN ASSY, grain elevator drive, refer to grain elevator drive unit for listing

1шт.

2

SPROCKET ASSY, grain elevator driven, refer to grain elevator drive unit for listing

1шт.

3

SPROCKET ASSY, grain elevator drive tightener, refer to grain elevator drive unit for listing

1шт.

4

SPROCKET ASSY, grain elevator drive, refer to grain elevator drive unit for listing

1шт.

5

SPROCKET, grain tank distributor auger driven, refer to grain tank extension and distributor auger unit for listing

1шт.

6

CHAIN ASSY, elevator jackshaft drive, refer to grain elevator drive unit for listing

1шт.

7

SPROCKET ASSY, grain tank distributor and tightener, refer to grain tank extension and distributor auger unit for listing

1шт.

8

SPROCKET, tailings elevator drive, refer to tailings elevator, trough and drive unit for listing

1шт.

9

SPROCKET ASSY, tailings elevator, refer to tailings elevator, trough and drive unit for listing

1шт.

10

SPROCKET, tailings elevator driven, refer to tailings elevator, trough and drive unit for listing

1шт.

11

CHAIN ASSY, tailings elevator drive, refer to tailings elevator, trough and drive unit for listing

1шт.

12

CHAIN ASSY, tailings delivery auger drive, refer to tailings delivery auger and drive unit for listing

1шт.

13

SPROCKET, tailings delivery auger driven, refer to tailings delivery auger and drive unit for listing

1шт.

14

SPROCKET ASSY, tailings delivery auger drive chain tightener, refer to tailings delivery auger and drive unit for listing

1шт.

15

SPROCKET, tailings delivery auger drive, refer to tailings delivery auger and drive unit for listing

1шт.

16

CHAIN ASSY, grain tank leveling auger drive, refer to grain tank extensions and distributor auger unit for listing

1шт.

17

SPROCKET, cylinder drive, refer to cylinder drive unit for listing

1шт.

18

SPROCKET W/BRG CYLINDER DRIVE TIGHTENER, refer to cylinder drive unit for listing

1шт.

19

CHAIN ASSY, cylinder drive, refer to cylinder drive unit for listing

1шт.

20

BELT, shaker shaft drive, refer to shaker shaft drive unit for listing

1шт.

21

PULLEY ASSY, shaker shaft driven, refer to shaker shaft drive unit for listing

1шт.

22

PULLEY ASSY, shaker shaft drive belt tightener, refer to shaker shaft drive unit for listing

1шт.

23

PULLEY ASSY, shaker shaft drive, refer to shaker shaft drive unit for listing

1шт.

24

CHAIN ASSY, straw rack drive, refer straw rack drive unit for listing

1шт.

25

SPROCKET, straw rack driven, refer straw rack drive unit for listing

1шт.

26

SPROCKET ASSY, straw rack drive idler and tightener, refer to straw rack drive unit for listing

1шт.

27

SPROCKET ASSY, straw rack drive, refer to straw rack drive unit for listing

1шт.

28

BELT, fan, refer to fan drive for listing

1шт.

29

PULLEY, fan drive belt tightener, refer to fan drive unit for listing

1шт.

30

PULLEY, fan driven refer to fan drive unit for listing

1шт.

31

PULLEY, fan drive, refer to fan drive unit for listing

1шт.

32

SPROCKET, elevator jackshaft driven, refer to grain elevator drive unit for listing

1шт.

33

SPROCKET, elevator drive slip clutch, refer to tailings elevator, trough and drive unit for listing

1шт.

34

SPROCKET ASSY, jackshaft drive chain tightener, refer to grain elevator drive unit for listing

1шт.

35

SPROCKET ASSY, elevator jackshaft drive, refer to grain elevator drive unit for listing

1шт.
