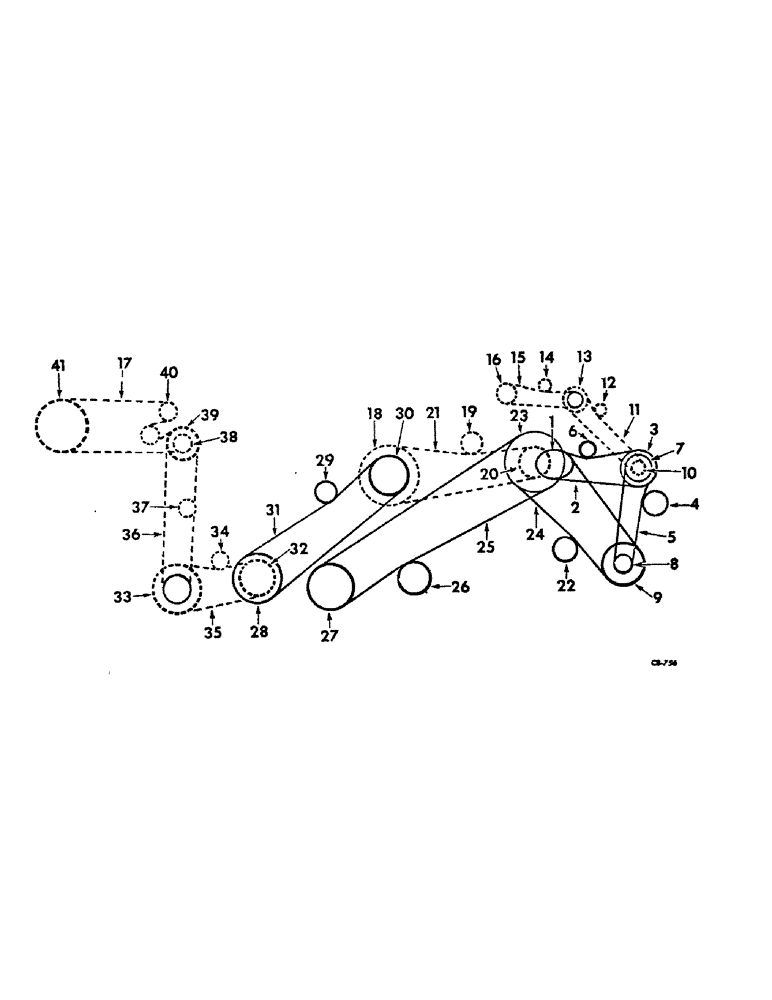

Запчасти Case IH 914 (02-02) - MISCELLANEOUS Accessories & Attachments / Miscellaneous

1

PULLEY, unloader auger driven, refer to grain tank unloader auger drive unit for listing

1шт.

2

BELT, unloader auger drive, refer to grain tank unloader auger drive unit for listing

1шт.

3

PULLEY, unloader auger drive, refer to grain tank unloader auger drive unit for listing

1шт.

4

PULLEY, jackshaft drive belt tightener, refer to grain tank unloader auger drive unit for listing

1шт.

5

BELT, unloader jackshaft drive, refer to grain tank unloader auger drive unit for listing

1шт.

6

PULLEY ASSY, unloader auger drive belt tightener, refer to grain tank unloader auger drive unit for listing

1шт.

7

PULLEY ASSY, unloader upper jackshaft driven, refer to grain tank unloader auger drive unit for listing

1шт.

8

PULLEY, unloader upper jackshaft drive, refer to grain tank unloader auger drive unit for listing

1шт.

9

PULLEY, fan cross shaft driven, refer to fan drive unit for listing

1шт.

10

SPROCKET ASSY, grain tank bottom rear auger drive, refer to grain tank, supports, bottom auger and drive for unit listing

1шт.

11

CHAIN ASSY, grain tank rear auger drive, refer to grain tank, supports, bottom auger and drive for unit listing

1шт.

12

SPROCKET ASSY, grain tank bottom rear auger drive chain tightener, refer to grain tank, supports, bottom auger and drive for unit listing

1шт.

13

SPROCKET ASSY, grain tank bottom auger driven, refer to grain tank supports, bottom auger and drive unit for listing

1шт.

14

SPROCKET ASSY, grain tank bottom front auger drive chain tightener, refer to grain tank, supports, bottom auger and drive unit for listing

1шт.

15

CHAIN ASSY, grain tank front auger drive, refer to grain tank, supports, bottom auger and drive unit for listing

1шт.

16

SPROCKET ASSY, grain tank front auger driven, refer to grain tank supports, bottom auger and drive for unit listing

1шт.

17

CHAIN ASSY, reel drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

18

SPROCKET, feeder driven, refer to PFM-1 parts catalog section A for unit listing

1шт.

19

SPROCKET ASSY, feeder drive tightener, refer to PFM-1 parts catalog section A for unit listing

1шт.

20

SPROCKET, feeder drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

21

CHAIN ASSY, feeder drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

22

PULLEY ASSY, fan cross shaft drive belt tightener, refer to fan drive unit for listing

1шт.

23

PULLEY, cylinder beater, refer to cylinder beater drive unit for listing

1шт.

24

BELT, fan drive cross shaft, refer to fan drive unit for listing

1шт.

25

BELT, cylinder beater drive, refer to cylinder beater drive unit for listing

1шт.

26

PULLEY ASSY, cylinder beater drive belt tightener, refer to cylinder beater drive unit for listing

1шт.

27

PULLEY, cylinder beater driven, refer to cylinder beater drive unit for listing

1шт.

28

PULLEY, platform jackshaft driven, refer to PFM-1 parts catalog section A for unit listing

1шт.

29

PULLEY ASSY, platform jackshaft drive tightener, refer to PFM-1 parts catalog section A for unit listing

1шт.

30

PULLEY ASSY, platform jackshaft drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

31

BELT, platform jackshaft drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

32

SPROCKET ASSY, platform auger and reel drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

33

SPROCKET, platform auger driven and reel jackshaft drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

34

SPROCKET ASSY, platform auger drive chain tightener, refer to PFM-1 parts catalog section A for unit listing

1шт.

35

CHAIN ASSY, platform auger drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

36

CHAIN ASSY, reel jackshaft drive, refer to PFM-1 parts catalog section A for unit listing

1шт.

37

SPROCKET ASSY, reel jackshaft drive chain tightener, refer to PFM-1 parts catalog section A for unit listing

1шт.

38

SPROCKET ASSY, reel drive idler, refer to PFM-1 parts catalog section A for unit listing

1шт.

39

SPROCKET, reel driven idler, refer to PFM-1 parts catalog section A for unit listing

1шт.

40

SPROCKET ASSY, reel drive chain tightener, refer to PFM-1 parts catalog section A for unit listing

1шт.

41

SPROCKET, reel shaft, refer to PFM-1 parts catalog section A for unit listing

1шт.
