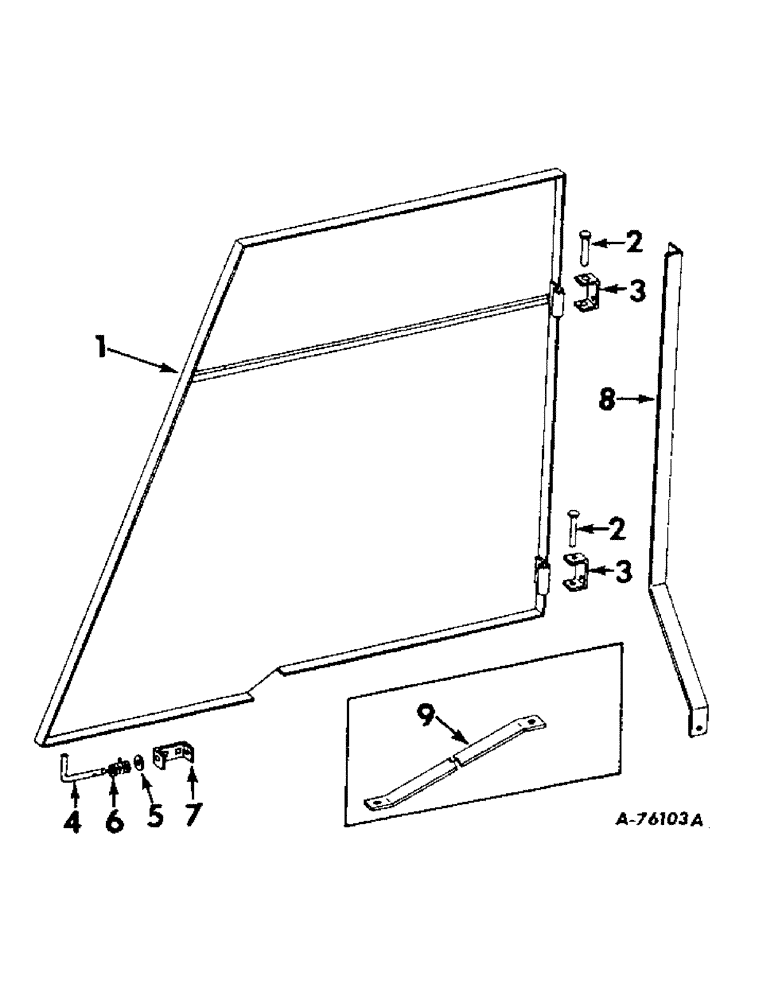

Запчасти Case IH 82 (33) - SAFETY SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

153960C91

SHIELD ASSY, right safety

1шт.

2

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4 dld-std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

153965C1

CHANNEL, safety shield latch

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd cap

4шт.

4

153966C1

ROD, safety shield latch

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

5

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

6

359109R1

SPRING

safety shield latch

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

10шт.

7

153967C1

CHANNEL, right belt shield lower

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

153968C1

SUPPORT, safety shield hinge

1шт.

9

156057C1

BRACE, safety shield support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
