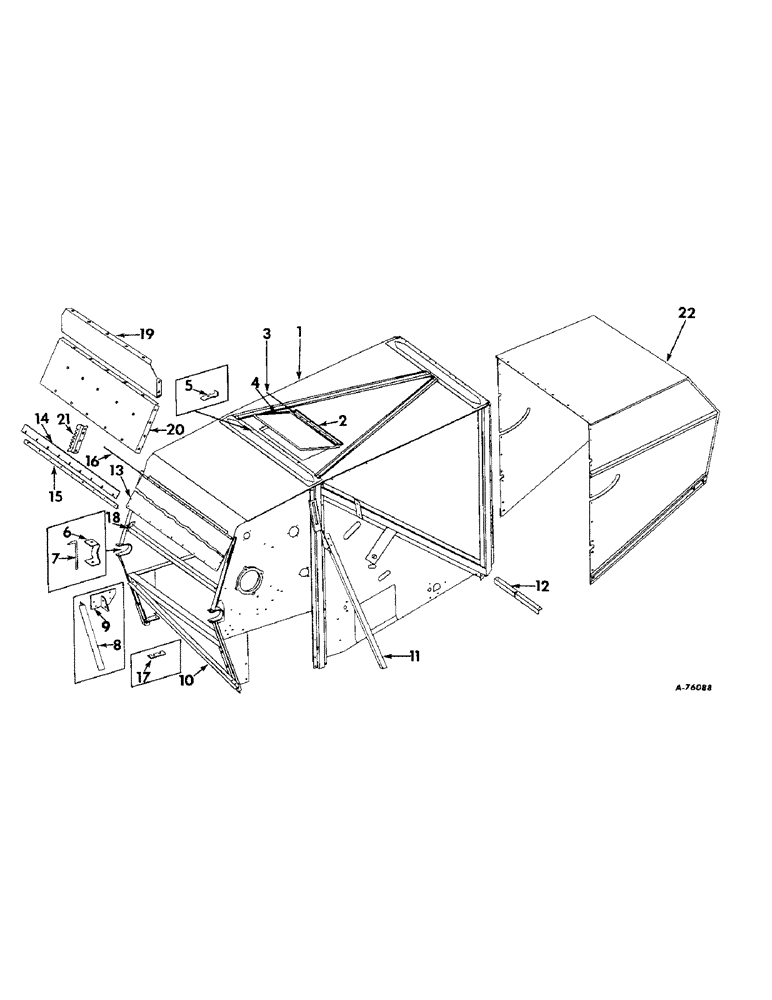

Запчасти Case IH 82 (30) - SEPARATOR SHELL AND HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
153923C91
BODY ASSY, separator
1шт.
1
153952C91
BODY ASSY, separator, bean special
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
10шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
6шт.
15053R1
BOLT,Short NK, 5/16"-18 x 1 3/4", G2
5/16 x 1-3/4 sq-nk crg
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
12шт.
102635
NUT,3/8"-16, G5
16шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
16шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
2
584872R1
HINGE, separator top door
1шт.
440-1258
SCREW,Cross Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 slt-rd-hd mach
4шт.
109084
NUT,1/4"-20, G5
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
3
580542R1
ROD, separator top door hinge
1шт.
4
583857R91
DOOR ASSY, separator top
1шт.
5
565449R1
CLIP
LATCH, separator top door
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
935736R1
NUT, WING
NUT, 5/16 wing
2шт.
6
583749R1
CAP, feeder retainer
2шт.
7
583750R1
PIN, feeder retainer locking
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
8
629042R1
BRACE, feeder pivot
1шт.
15009R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd
3шт.
NLS
NO LONGER SERVICED
7/16 hex.
3шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
3шт.
9
629040R91
PLATE ASSY, feeder pivot
1шт.
10
583901R1
BRACE, separator lower front
1шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 x 3/4 hex-hd mach.
2шт.
17448R1
BOLT (SPREADER)
BOLT, 1/2 x 1-1/4 hex-hd mach.
1шт.
102635
NUT,3/8"-16, G5
2шт.
102637
NUT,1/2"-13, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
11
588628R1
BRACE, separator left side
1шт.
15009R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd
2шт.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
1/2 x 1 hex-hd mach.
4шт.
102637
NUT,1/2"-13, G5
4шт.
NLS
NO LONGER SERVICED
7/16 hex.
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
12
584863R1
ANGLE, separator rear tie
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
13
584848R1
DOOR, separator lower front
1шт.
14985R1
BOLT
1/4 x 1/2 sq-nk crg
9шт.
109084
NUT,1/4"-20, G5
9шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
9шт.
14
584860R1
SEAL, feeder upper
1шт.
15
584861R1
STIFFENER, feeder upper seal
1шт.
16
584862R1
ROD
front door hinge
1шт.
17
626738R1
SHIM, separator front lower support
1шт.
18
153948C91
CROSSMEMBER ASSY, separator front
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
935736R1
NUT, WING
NUT, 5/16 wing
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
19
153949C1
SECTION, cyl cover rear
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
11шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
11шт.
20
153950C1
SECTION, cyl cover
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
17шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
17шт.
21
153951C1
BRACKET, cyl adj quadrant right
1шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
4шт.
22
154030C91
HOOD ASSY, separator
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 truss-hd whiz lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 truss-hd whiz lock
4шт.
632225R1
LOCK NUT
5/16 flange whiz lock
8шт.
Выбрано товаров: 78
