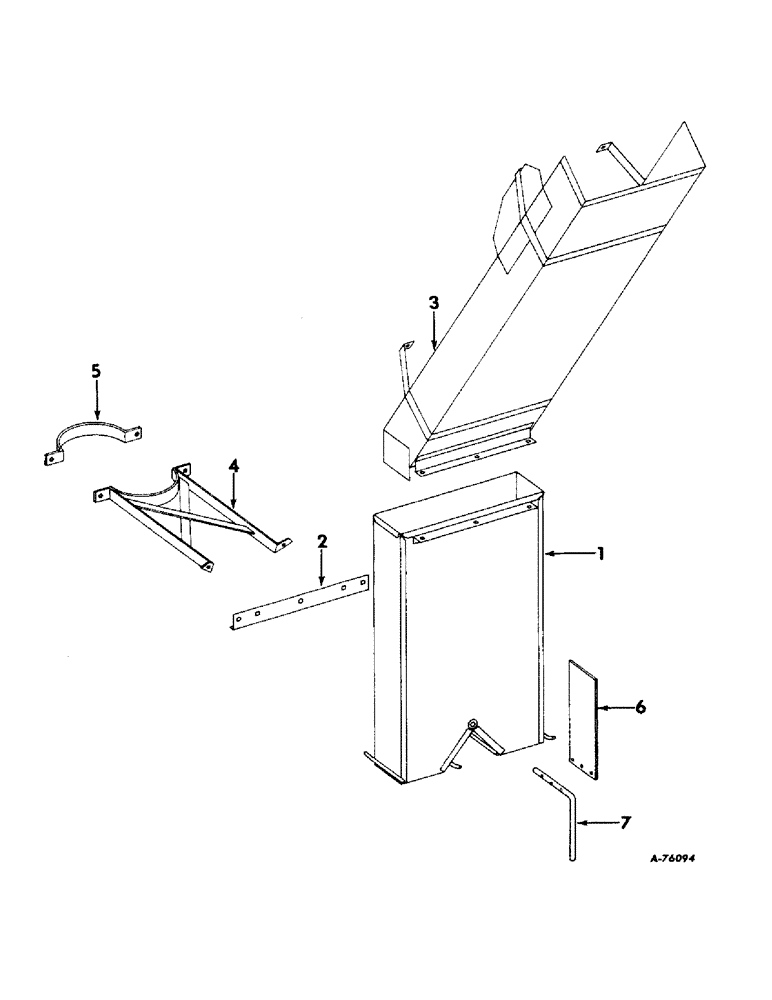

Запчасти Case IH 82 (62) - GRAIN TANK BAGGER ATTACHMENT (80) - CROP STORAGE/UNLOADING

1

588851R91

HOPPER ASSY, unloader chute

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

588855R1

STIFFENER, hopper

1шт.

3

588856R91

CHUTE ASSY, unloader

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

588860R91

BRACKET ASSY, chute support

1шт.

5

588864R1

CLAMP, support bracket

5шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

6

563996R92

VALVE ASSY, hopper

1шт.

7

563995R2

HANDLE, hopper valve

1шт.

132848

SCREW,Sl Rnd Hd, #10 - 24 x 1"

3/16 x 1 C-Z slt-rd-hd mach

3шт.

120619

NUT

3/16 C-Z hex

3шт.

131182

WASHER, LOCK

WASHER, 3/16 C-Z med lock

3шт.
