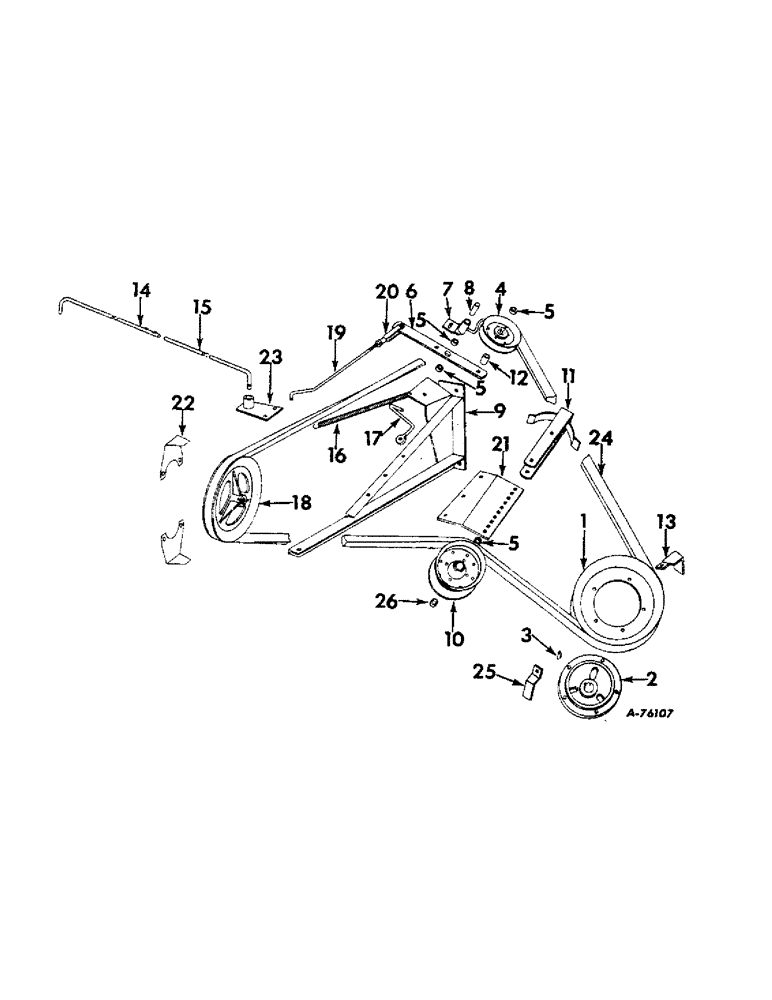

Запчасти Case IH 82 (60) - UNLOADER AUGER DRIVE (80) - CROP STORAGE/UNLOADING

1

553605R91

PULLEY

ASSY, unloader auger driven

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach.

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

2

585383R1

HUB, unloader auger driven pulley

1шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 woodruff, unloader auger driven pulley hub

1шт.

4

567872R91

PULLEY

ASSY, unloader auger drive belt idler

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

5

585389R1

BUSHING, auger drive belt tightener arm

5шт.

6

585388R1

ARM, auger drive belt tightener

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32 x 1

1шт.

7

585513R91

GUARD ASSY, unloader auger drive, belt tightener pulley

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

3шт.

8

568384R1

SLEEVE, unloader auger drive belt tightener guard

1шт.

9

585371R91

SUPPORT ASSY, unloader idler pulley

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

566517R91

PULLEY

ASSY, auger drive belt tightener

1шт.

15160R1

BOLT

1/2 x 3-1/4 sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

154678C91

BRACKET ASSY, drive belt idler pulley

1шт.

15160R1

BOLT

1/2 x 3-1/4 sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

M73998

SPACER, idler pulley brkt

1шт.

13

584088R1

BRACKET, auger drive belt retainer

1шт.

14

936699R11

HANDLE ASSY, unloader control rod

1шт.

102583

SET SCREW,Hex Skt, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 hex-soc-hd cup-pt set

2шт.

15

936700R1

ROD, unloader control

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

Q1505

WASHER

13/32 x 3/4 x 16 ga

1шт.

16

12165D

SPRING, unloader control bellcrank

1шт.

17

583924R1

BRAKE, unloader upper pulley

1шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

585370R2

PULLEY, unloader auger drive

1шт.

19

585399R1

ROD, unloader control rear

1шт.

103026

NUT,3/8"-24, G5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, unloader control rear rod

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1 3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

585373R1

ANCHOR, unloader lower pulley

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

936221R1

ANGLE, unloader drive blet guide

2шт.

23

585375R91

BELLCRANK, cp, unloader control

1шт.

24

13988K

V-BELT,115.23" L

Unloader Drive 115.23" L

1шт.

24

935721R1

V-BELT,0.63" W

Unloader drive, 1000 rpm 0.63" W

1шт.

25

581889R1

RETAINER, unloader drive belt lower

1шт.

26

555634R1

SPACER, lower pulley anchor, 1000 rpm

1шт.
