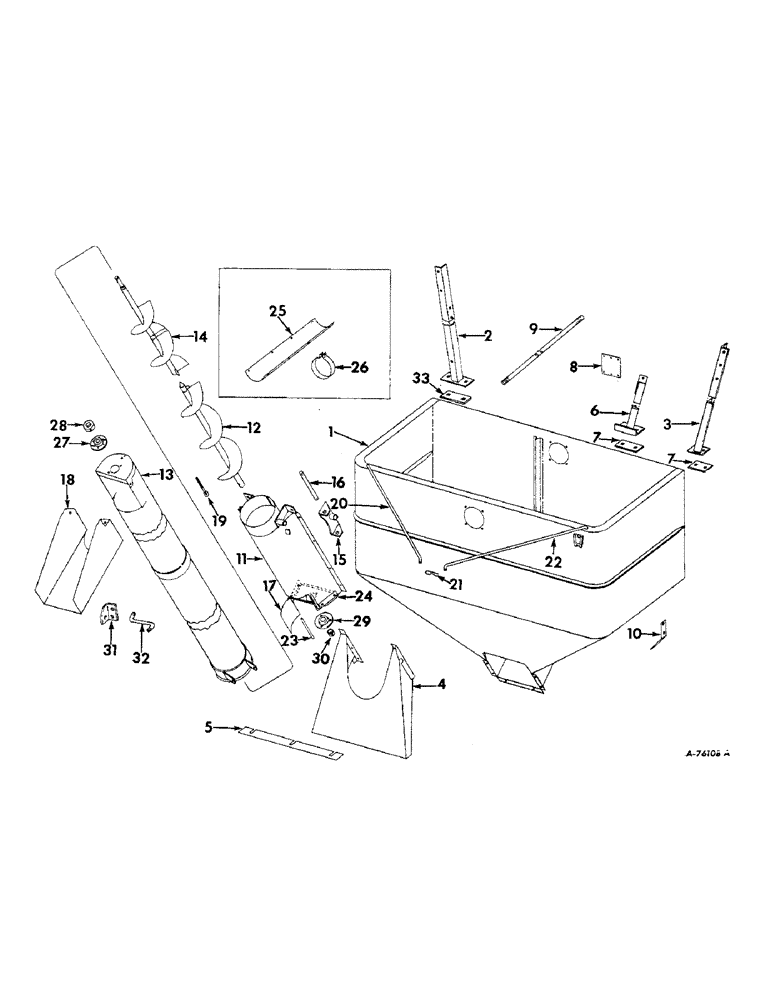

Запчасти Case IH 82 (58) - GRAIN TANK HOPPER AND UNLOADER AUGER (80) - CROP STORAGE/UNLOADING

1

154043C91

HOPPER ASSY, grain

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

6шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

102637

NUT,1/2"-13, G5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

585332R91

POST ASSY, hopper front

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

15286R1

BOLT, 1/2 x 5-1/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

585335R91

POST ASSY, hopper rear

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

2шт.

15286R1

BOLT, 1/2 x 5-1/4 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

585528R91

BRACKET ASSY, unloader lower tube support

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

584345R1

SHIM, lower tube support bracket

4шт.

6

583863R91

BRACE ASSY, hopper rear support

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach.

2шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

585337R1

PLATE, rear support brace

2шт.

15286R1

BOLT, 1/2 x 5-1/4 sq-nk crg

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

631010R1

COVER, right side brg hole, not used when scour kleen is installed at factory

1шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2 rd-hd slt mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

154053C1

ROD, hopper reinforcement tie

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

10

154054C1

REINFORCEMENT, hopper front and rear

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

585354R91

TUBE ASSY, unloader lower auger 22.06" Length

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd mach.

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach.

4шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach.

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

12

588239R91

AUGER ASSY, unloader lower

1шт.

13

585364R91

TUBE ASSY, unloader upper auger 41.062" Length

1шт.

13

628150R91

TUBE ASSY, unloader upper auger, bean special 41.06" Length

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

588242R91

AUGER ASSY, unloader upper

1шт.

15

584342R91

BRACKET ASSY, unloader tube hinge, lower

1шт.

16

619765R1

ROD, unloader tube hinge

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

17

583822R91

DOOR ASSY, lower tube clean out

1шт.

15037R1

SCREW,Sq Nk, 1/4" x 1 1/2"

BOLT, 1/4 x 1-1/2 sq-nk crg

1шт.

935735R1

WING NUT

1/4 wing

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

18

619772R1

DOWNSPOUT, unloader tube 22" Length

1шт.

19

585385R1

BOLT, tube hinge eye

1шт.

129-410

WING NUT,3/8"-16

3/8 wing

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 16 ga

1шт.

Q1299

HEADED PIN,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

585386R1

ROD, unloader tube front retainer

1шт.

21

153528C1

COTTER PIN

quick attaching

1шт.

22

585387R1

ROD, unloader tube rear retainer

1шт.

23

564457R1

PIN, unloader lower auger clean out door hinge

1шт.

24

585397R91

SUPPORT ASSY, unloader lower auger bearing

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

25

567238R1

COVER, unloader tube screen, bean special

1шт.

26

587927R1

STRAP, unloader tube cover, bean special

4шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

565617R91

BALL BEARING

ASSY, unloader upper auger

1шт.

28

565618R11

RETAINER

COLLAR W/SET SCREW LKG

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

1шт.

29

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ASSY, unloader lower auger

1шт.

30

564853R11

COLLAR

W/SET SCREW LKG

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

1шт.

31

154002C1

ANGLE, unloader tube latch

1шт.

32

154003C1

ROD, unloader tube latch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

586591R1

COTTER PIN

PIN, 1/8 x 2-1/8 quick attachable

1шт.

33

585334R1

PAD, front post lower

1шт.
