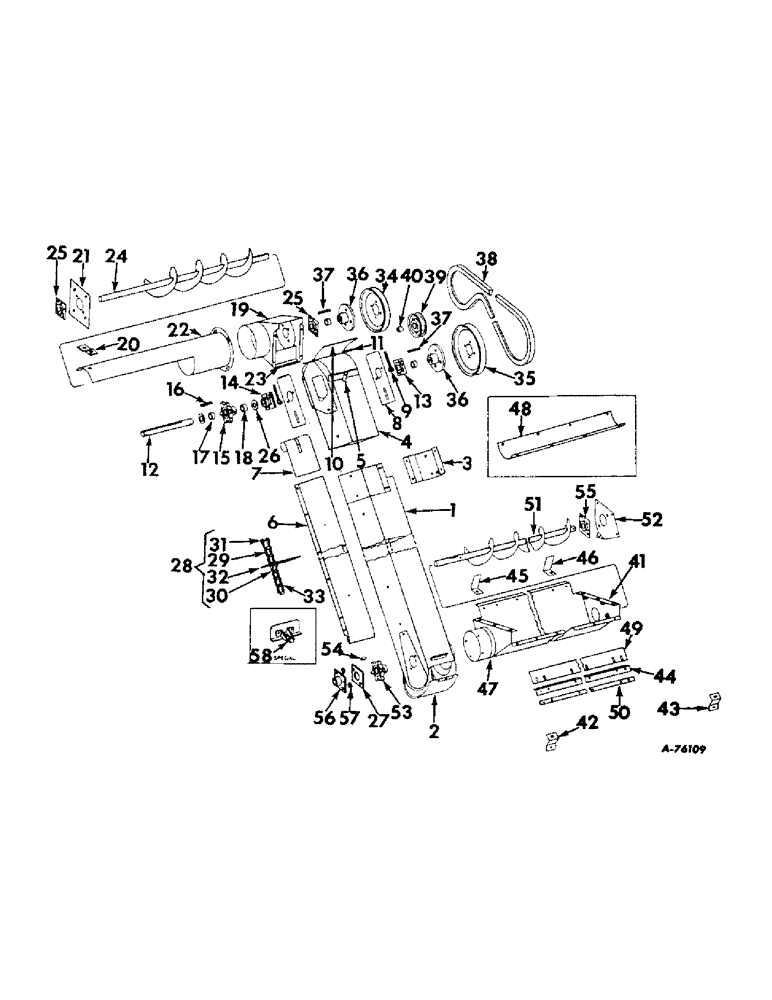

Запчасти Case IH 82 (48) - GRAIN ELEVATOR, DRIVE, AUGER, TROUGH AND SPECIAL CONVEYOR CHAIN FLIGHT (80) - CROP STORAGE/UNLOADING

1

153976C91

HOUSING ASSY, grain elevator lower

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 sq-nk crg

2шт.

15296R1

BOLT, 5/16 x 5-1/2 sq-nk crg

4шт.

15297R1

BOLT, 3/8 x 5-1/2 sq-nk crg

1шт.

15310R1

BOLT, 3/8 x 5-3/4 sq-nk crg

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

102635

NUT,3/8"-16, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

561807R91

NO LONGER SERVICED

DOOR ASSY, elevator lower housing

1шт.

2

567296R91

DOOR ASSY, elevator lower housing, bean special

1шт.

15052R1

BOLT, 1/4 x 1-3/4 sq-nk crg

1шт.

935735R1

WING NUT

1/4 wing

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

1шт.

3

572435R1

CLAMP, housing right support

1шт.

15324R1

BOLT, 3/8 x 6 sq-nk crg

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

102635

NUT,3/8"-16, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

4

583726R91

HOUSING ASSY, grain elevator upper

1шт.

5

2775N

LATCH, housing upper door

1шт.

135331

RIVET,Truss Hd, 1/4" x 5/8"

1/4 x 9/16 wagon box-hd

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

6

153978C91

BOTTOM ASSY, elevator false

1шт.

7

557477R1

EXTENSION, elevator false bottom

1шт.

8

584984R1

BRACKET, elevator head shaft brg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

15323R1

BOLT, 5/16 x 6 sq-nk crg

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

9

585019R1

BOLT, 5/16 x 3-1/2 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

10

554186R1

DOOR, elevator housing upper

1шт.

11

554187R1

PIN, housing upper door hinge

1шт.

12

631383R1

SHAFT, grain elevator head

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga

4шт.

13

631527R91

BALL BEARING

ASSY, head shaft right

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

14

584300R91

BEARING ASSY,0.883" ID x 2.8125" OD x 1.25"

ASSY, head shaft left

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

15

1811K

SPROCKET ASSY.

SPROCKET, grain conveyor chain

1шт.

16

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1/4 x 1-1/2 sq-parallel, grain conveyor chain sprocket

1шт.

17

584963R1

SPACER, head shaft left

1шт.

18

584964R1

SPACER,1 1/8" Tube x 3/4"

head shaft right

1шт.

19

585298R91

DOWNSPOUT ASSY, grain elevator

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 rd-hd slt mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

585303R1

CLIP, auger cover support

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

585304R1

PLATE, delivery auger brg

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

585305R91

COVER ASSY, delivery auger

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

585308R1

BAFFEL, delivery auger downspout

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 rd-hd slt mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

631394R91

AUGER ASSY, grain delivery

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga

3шт.

25

631527R91

BALL BEARING

ASSY, delivery auger shaft

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

583387R1

WASHER, head shaft brg spacer, not for bean

2шт.

27

633018R1

SHIELD, elevator lower brg

1шт.

28

153980C91

CONVEYOR ASSY, grain elevator

1шт.

28

153982C91

CONVEYOR ASSY, grain elevator, bean special

1шт.

29

NLS

NO LONGER SERVICED

LINK, plain

62шт.

29

NLS

NO LONGER SERVICED

LINK, plain, bean special

51шт.

30

55SE

LINK

attaching

15шт.

30

55SE

LINK

attaching, bean special

25шт.

31

55CO

LINK

coupler

1шт.

31

55CO

LINK

coupler, bean special

1шт.

32

16724K

RUBBER FLIGHT

FLIGHT, elevator conveyor

15шт.

21360K

RIVET

5/16 x 1/2 ov-hd tubular

30шт.

32

16724K

RUBBER FLIGHT

FLIGHT, elevator conveyor, bean special

25шт.

21360K

RIVET

5/16 x 1/2 ov-hd tubular

50шт.

33

CHAIN, grain elevator conveyor use 62 no. 55 steel links from 10 ft. roll no. CS55

1шт.

33

CHAIN, grain elevator conveyor use 52 no. 55 steel links from 10 ft. roll no. CS55, bean special

1шт.

34

564696R11

PULLEY

ASSY, delivery auger driven

1шт.

35

584967R11

PULLEY

ASSY, elevator driven

1шт.

36

631387R1

HUB, elevator and delivery auger pulley driven

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

36

631387R1

HUB, delivery auger driven pulley, scour kleen

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

37

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq-parallel, elevator and delivery auger driven pulley

2шт.

38

610521R1

V-BELT

Grain elevator and delivery

1шт.

39

585255R91

PULLEY

ASSY, elevator drive idler

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

31696H

WASHER, 17/32 x 1-1/2 x 16 ga

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

Q303

WASHER, 17/32 sq x 1-1/2 x 11 ga

1шт.

40

H39668

SPACER, drive belt idler pulley

1шт.

41

585167R91

TROUGH ASSY, grain auger

1шт.

41

628148R91

TROUGH ASSY, grain auger, bean special

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 rd-hd slt mach.

16шт.

102635

NUT,3/8"-16, G5

6шт.

109084

NUT,1/4"-20, G5

16шт.

550827R1

NUT, 5/16-18 std weld

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

42

585175R1

SHIELD, auger trough left rear

1шт.

43

585176R1

SHIELD, auger trough right rear

1шт.

44

585177R1

STIFFENER, auger trough to shoe bottom seal

1шт.

45

583336R1

SHIELD, auger trough rear upper left

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

46

583337R1

SHIELD, auger trough rear upper right

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

589695R1

SEAL, auger, Serial Range: trough-elevator

1шт.

48

567238R1

COVER, grain auger trough bottom, bean special

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

49

584997R1

SEAL, auger trough to shoe bottom

1шт.

50

585163R1

STRAP, auger trough to shoe bottom seal

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 rd-hd slt mach

11шт.

109084

NUT,1/4"-20, G5

11шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

51

631388R91

AUGER ASSY, grain

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

52

585172R1

PLATE, auger shaft right brg

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-d mach.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

53

1811K

SPROCKET ASSY.

SPROCKET, conveyor chain drive

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

54

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 woodruff

1шт.

55

584300R91

BEARING ASSY,0.883" ID x 2.8125" OD x 1.25"

ASSY, grain auger shaft RH

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

56

631527R91

BALL BEARING

ASSY, grain auger shaft LH

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/2 hex-soc-hd cup-pt set

2шт.

57

568257R1

SPACER,1/2" Tube x 3/8"

auger shaft brg

2шт.

58

557008R91

CONVEYOR

FLIGHT ASSY, conveyor chain steel, special

1шт.
