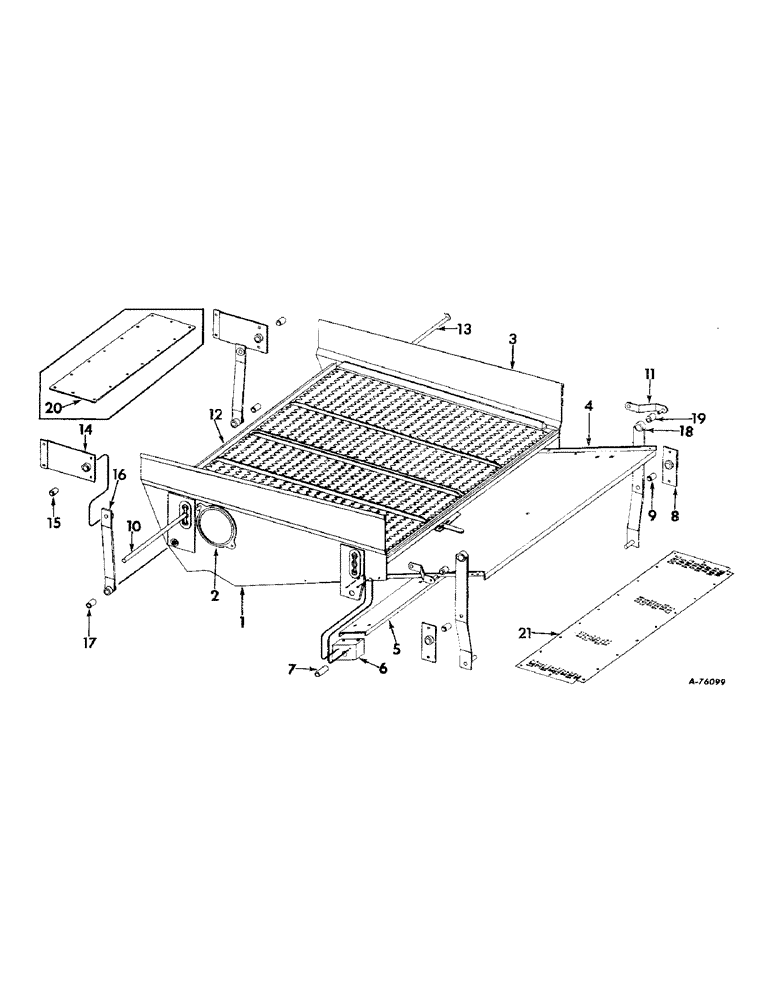

Запчасти Case IH 82 (46) - SHOE, SHOE SIEVES AND SHOE BOTTOM SCREEN (74) - CLEANING

1

584942R91

SIDE ASSY, shoe left

1шт.

2

551104R1

FLAP

DOOR, inspection

1шт.

135330

SHIELD

RIVET, 1/4 x 7/16 wagon-box-hd solid

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

3

584943R91

SIDE ASSY, shoe right

1шт.

4

619756R1

SHEET, shoe bottom

1шт.

4

628152R1

SHEET, shoe bottom, bean special

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

15107R1

BOLT

5/16 x 2-1/2 sq-nk crg

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

5шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

5

619746R1

CHANNEL, shoe bottom rear cross

1шт.

6

588036R1

BOARD

BLOCK, shoe rear hanger brg

2шт.

7

NA32291

BUSHING

rear hanger brg block

2шт.

8

584946R91

BRACKET ASSY, shoe rear hanger pivot

1шт.

9

554547R91

COMPOSITE RING

BUSHING ASSY, hanger pivot bracket

2шт.

17549R1

BOLT, 7/16 x 2-1/4 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

10

558751R1

SPACER, shoe sieve hanger bracket

1шт.

11

619742R11

STRAP ASSY, shoe rear hanger

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

12

612660R92

SIEVE ASSY, adjustable shoe

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga

2шт.

13

558754R91

BOLT ASSY, shoe sieve adjusting

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

14

584948R91

SUPPORT ASSY, shoe front hanger

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

SCREW, 7/16 x 2 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga

2шт.

15

554547R91

COMPOSITE RING

BUSHING ASSY, front hanger support

2шт.

16

584950R91

ARM ASSY, shoe front hanger

2шт.

17

554547R91

COMPOSITE RING

BUSHING, shoe front hanger pivot

2шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

7/16 x 1-3/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

18

584953R91

HANGER ASSY, shoe rear

2шт.

19

619748R91

BUSHING

shoe rear hanger

2шт.

20

628153R1

COVER, shoe bottom, bean special

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10 x 1/2 slt-rd-hd mach

20шт.

110633

NUT,#10-24

20шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

20шт.

21

563956R1

SCREEN, shoe bottom, special

1шт.
