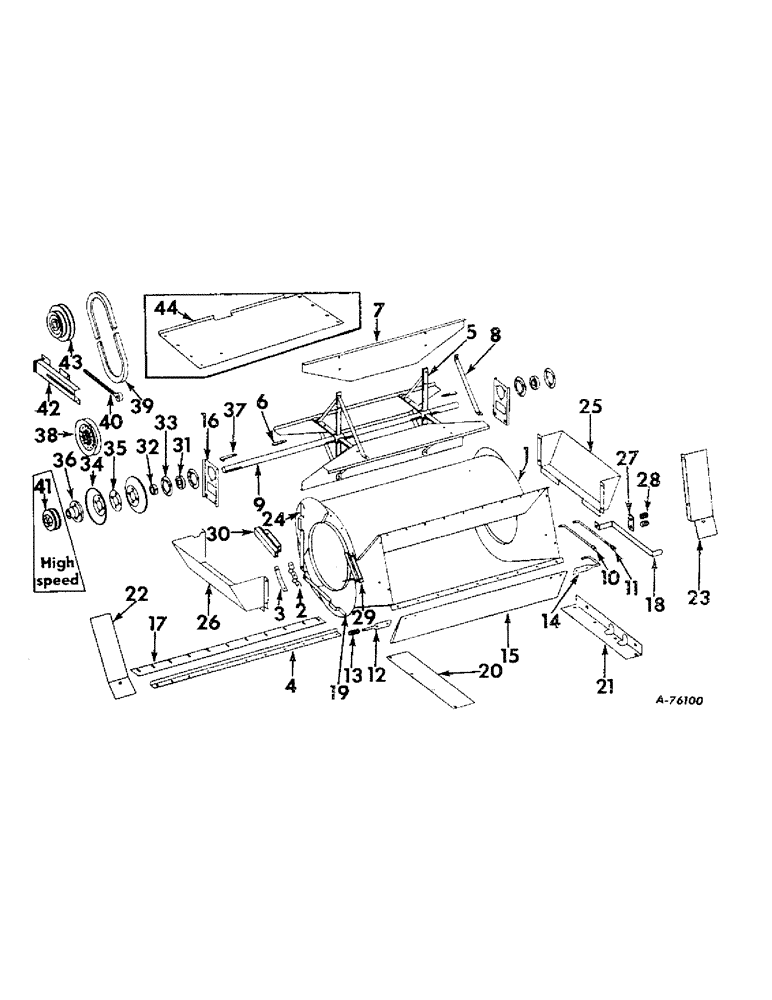

Запчасти Case IH 82 (44) - FAN, FAN DRIVE AND LOWER SHIELD ATTACHMENT (74) - CLEANING

1

153992C91

HOUSING ASSY, fan

1шт.

14986R1

BOLT, 5/16 x 1/2 hex-hd mach

6шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

8шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

36шт.

109084

NUT,1/4"-20, G5

40шт.

587640R1

NUT, 1/4 hex.

40шт.

587640R1

NUT, 1/4 spring

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16 hex.

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

44шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

14688K

PLATE, wind regulator rod outer

2шт.

3

14690K

PLATE, wind regulator rod inner

2шт.

4

583731R1

REINFORCEMENT, fan to grain pan seal

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach.

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

572021R91

SPIDER ASSY, fan

2шт.

6

Q3933

KEY,Gib, 5/16" Sq x 2 1/8"

5/16 x 5/16 x 2-1/8 sq-tapered, fan spider hub

2шт.

7

572023R1

BLADE

fan

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

8шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

16шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

8

572024R1

SUPPORT

BRACE, fan spoke

8шт.

9

585228R1

SHAFT, fan

1шт.

10

585229R1

ROD, wind regulator front connecting

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

11

585230R1

ROD, wind regulator rear connecting

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

551010R1

PIN, 5/16 x 5/8 dld-std-hd

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

12

553460R1

ROD

wind deflector blade left

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

13

7422T

SPRING

wind deflector blade left rod

1шт.

14

553461R1

ROD, wind deflector blade right

1шт.

15

562761R1

BLADE, wind deflector

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach.

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

585231R1

BRACKET, fan shaft brg support

2шт.

17

553242R1

SEAL

SEAL, fan housing to grain pan

1шт.

18

153994C1

LEVER, fan wind regulator

1шт.

103405

PIN, 3/16 x 1/2 cot.

1шт.

19

585239R91

REGULATOR ASSY, fan wind rear

1шт.

20

585243R1

SHIELD, fan lower left

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

153997C1

ANGLE, fan lower right shield

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 sq-nk crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

153995C1

SHIELD, fan rear left

1шт.

23

153996C1

SHIELD, fan rear right

1шт.

24

572026R91

REGULATOR ASSY, fan wind front

1шт.

25

583316R91

SHIELD ASSY, fan right straw

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach.

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach.

2шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

583320R91

SHIELD ASSY, fan left straw

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach.

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

583332R1

PLATE, wind control lever retainer

1шт.

17495R1

BOLT, 5/16 x 1-3/4 hex-hd mach.

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

4шт.

28

135DS

SPRING, control lever retainer plate

2шт.

29

587734R91

GUIDE ASSY, wind regulator rear

2шт.

30

587737R91

GUIDE ASSY, regulator left front

1шт.

30

587738R91

GUIDE ASSY, regulator right front

1шт.

31

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, fan shaft

2шт.

32

455102R11

COLLAR

W/SET SCREW FAN SHAFT BRG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

33

571424R1

FLANGE

fan shaft brg mounting

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

34

587768R91

PULLEY ASSY, fan driven half

2шт.

35

21659K

RING

fan driven half pulley, use loose as a spacer

5шт.

36

584067R1

HUB, fan driven pulley

1шт.

17470R1

BOLT

5/16 x 1-1/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

37

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib, fan driven pulley hub

1шт.

38

154742C91

PULLEY

fan driven belt tightener

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

39

561133R1

BELT

fan and shaker shaft drive

1шт.

40

585250R1

BOLT, fan drive belt tightener draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

41

588821R1

PULLEY, fan driven, special grain, regular bean

1шт.

42

629044R11

BRACKET ASSY, fan drive belt tightener

1шт.

43

585234R1

PULLEY, grain conveyor and fan drive

1шт.

44

585280R1

SHIELD, fan lower, special

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.
