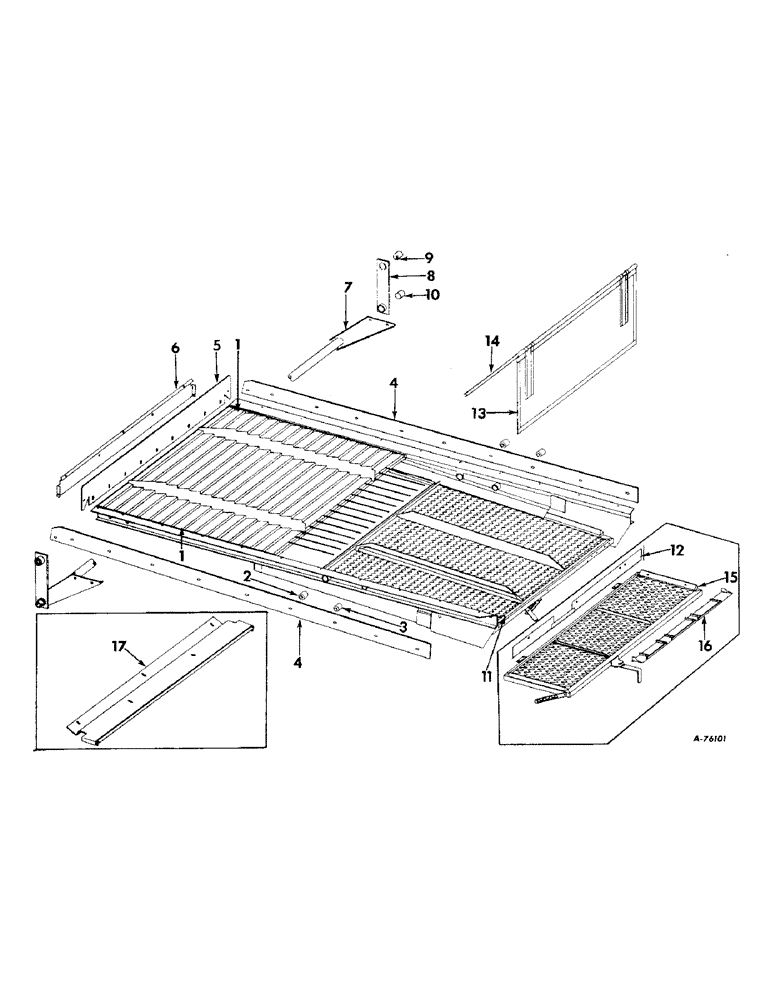

Запчасти Case IH 82 (42) - GRAIN PAN, GRAIN PAN BOTTOM EXTENSION AND CHAFFER SIEVE (74) - CLEANING

1

584955R91

PAN ASSY, grain

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

554547R91

COMPOSITE RING

BUSHING, shoe rear hanger

2шт.

17549R1

BOLT, 7/16 x 2-1/4 hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

3

564103R91

COMPOSITE RING

BUSHING, hanger housing

2шт.

17748R1

BOLT

1/2 x 4-1/4 hex-hd mach.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

550610R1

WASHER

17/32 x 1-1/2 x 3/16

2шт.

4

939926R1

SEAL, grain pan side rail

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 washer face self tapping

20шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 rd-hd slt mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

366661H

WASHER, 17/64 x 1 x 16 ga

22шт.

5

619784R1

SEAL, grain pan front

1шт.

6

619790R1

STIFFENER, grain pan front lower

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach.

9шт.

109084

NUT,1/4"-20, G5

9шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

7

583349R91

SUPPORT ASSY, grain pan front

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

8шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

8

583347R91

HANGER ASSY, grain pan front

2шт.

9

564103R91

COMPOSITE RING

BUSHING ASSY, grain pan front hanger upper hub

2шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 hex-hd mach.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

550610R1

WASHER

17/32 x 1-1/2 x 16 ga

2шт.

10

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

front hanger lower hub

2шт.

11

571327R93

SIEVE

ASSY, adjustable chaffer

1шт.

12

569463R91

DEFLECTOR ASSY, adjustable chaffer

1шт.

113995

BRACKET

1/4 x 1-1/4 slt-f-hd mach.

5шт.

109084

NUT,1/4"-20, G5

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

13

153990C1

FLAP ASSY, grain pan check

1шт.

14

153991C1

ROD, grain pan check flap

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

15

619847R91

EXTENSION

ASSY, chaffer sieve

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4 x 1-1/4 slt-f-hd mach.

4шт.

109084

NUT,1/4"-20, G5

4шт.

935763R1

NUT, 5/16 wing

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

16

558011R91

DEFLECTOR ASSY, chaffer sieve

1шт.

145146

ARM

SCREW, 10 x 7/8 slt-rd-hd tap

8шт.

558012R1

NUT

10 u-type spring

6шт.

558268R1

NUT, 10 flat spring

2шт.

17

633702R1

EXTENSION, grain pan bottom, special

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, no. 10 x 1/2 C-Z slt-pan-hd self tapping

5шт.

20310R1

SCREW

1/4 x 1/2 C-Z slt-pan-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
