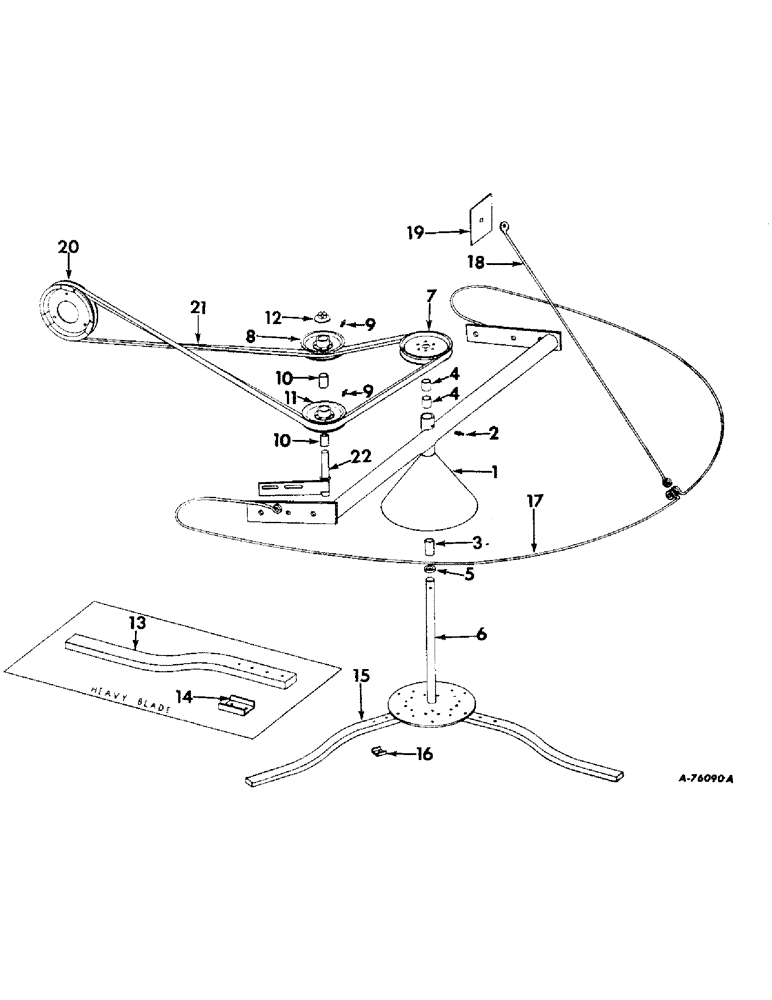

Запчасти Case IH 82 (32) - STRAW SPREADER ATTACHMENT (73) - RESIDUE HANDLING

1

153955C91

SUPPORT ASSY, straw spreader

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Bearing tube 1/8"-27 x .66 lg

1шт.

3

589813R1

BUSHING

spreader shaft lower

1шт.

4

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

spreader shaft upper

2шт.

5

565873R91

SEAL

spreader shaft lower oil

1шт.

6

568191R91

ROD

SHAFT ASSY, spreader

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

4шт.

551659R1

WASHER

29/32 z 1-1/2 x 22 ga

1шт.

7

21712K

PULLEY ASSY.

PULLEY ASSY, spreader driven

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

48252K

PULLEY ASSY.

PULLEY ASSY, drive belt tightener

1шт.

9

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

10

18523K

BUSHING

tightener pulley

2шт.

11

17876K

PULLEY ASSY.

PULLEY ASSY, drive belt idler

1шт.

12

20362K

COLLAR

spreader shaft

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

13

566470R1

BAT

BLADE, spreader heavy

3шт.

14

566475R1

CHANNEL

CLAMP, blade

3шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

565870R1

BLADE, spreader light

3шт.

16

565871R1

CHANNEL

CLAMP, blade

6шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

585285R1

GUARD, spreader half

2шт.

17523R1

BOLT, 1/2 x 2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

585286R1

SUPPORT, spreader guard

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

153909C1

PLATE, spreader guard support

1шт.

20

585290R1

PULLEY, spreader drive

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

154065C1

V-BELT, 0.63" W x 286.29" L, Spreader Drive 0.63" W x 286.29" L

1шт.

22

153958C91

SUPPORT ASSY, spreader idler pulley

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

551659R1

WASHER

29/32 x 1-1/2 x 22 ga

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

3шт.
