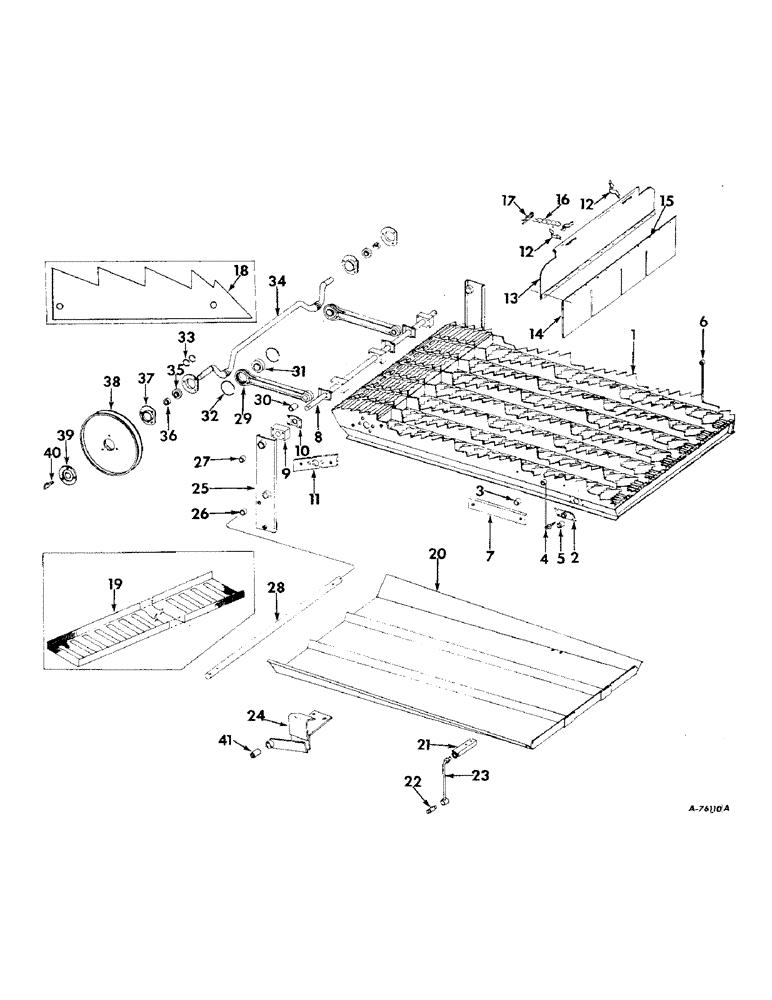

Запчасти Case IH 82 (40) - STRAW RACK, STRAW RACK RISERS AND SCREENS, RETURN PAN, SHAKER SHAFT AND DRIVE (72) - SEPARATION

1

155461C91

RACK ASSY, straw

1шт.

2

610483R91

SUPPORT ASSY, straw rack rear

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach.

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

564103R91

COMPOSITE RING

BUSHING ASSY, straw rack support

4шт.

4

156058C91

HANGER ASSY, straw rack left rear

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

564103R91

COMPOSITE RING

BUSHING ASSY, straw rack hanger

2шт.

17523R1

BOLT, 1/2 x 2 hex-hd mach.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

6

156059C91

HANGER ASSY, straw rack right rear

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

611386R1

BLOCK, straw rack rear wear

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4 x 3/4 slt-f-hd mach.

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

585044R1

SHAFT, straw rack front

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

Q3850

BOLT

WASHER, 1-3/32 x 2 x 16ga

4шт.

9

554557R1

BEARING, straw rack front

4шт.

10

554907R3

PLATE, straw rack front brg

4шт.

15088R1

BOLT

5/16 x 2-1/4 sq-nk crg

16шт.

274881R1

NUT, 5/16-18 stover lock

16шт.

11

583743R1

BLOCK, straw rack left front wear

1шт.

11

583744R1

BLOCK, straw rack right front wear

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4 x 3/4 slt-f-hd mach.

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

12

153974C1

STRIP, check flap support

2шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

153975C1

SHEET, check flap support

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach.

9шт.

109084

NUT,1/4"-20, G5

9шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

14

606857R21

FLAP ASSY, check

1шт.

15

451313R1

GROMMET, w/washer

9шт.

16

610783R91

CHAIN, flap support check

1шт.

17

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cot.

1шт.

18

619811R1

RISER, straw rack front, special

4шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach.

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

19

558392R1

SCREEN, straw rack, special when ordered

7шт.

20

154056C91

PAN ASSY, return

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

8шт.

21

619898R92

SUPPORT ASSY, return pan left rear

1шт.

21

619899R92

SUPPORT ASSY, return pan right rear

1шт.

22

554547R91

COMPOSITE RING

BUSHING ASSY, return pan rear hanger

4шт.

17522R1

BOLT, 7/16 x 2 hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

615062R1

WASHER

15/32 x 7/8 x 11 ga

2шт.

23

619897R11

HANGER

ASSY, return pan rear

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

154059C91

SUPPORT ASSY, return pan left

1шт.

24

154060C91

SUPPORT ASSY, return pan right

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

25

585256R91

LEVER

ARM ASSY, left rocker

1шт.

25

585257R91

ARM ASSY, right rocker

1шт.

26

585263R1

BUSHING

rocker arm pivot

2шт.

27

585264R1

BUSHING

rocker arm upper

2шт.

28

585265R1

SHAFT, rocker arm

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

6шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-3/4 std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

17675R1

BOLT, 1/2 x 3-1/2 hex-hd mach

2шт.

12026R1

WASHER

17/32 x 1 x 16 ga

2шт.

29

562622R11

PITMAN

ASSY, shaker shaft

2шт.

30

562623R1

BUSHING

shaker shaft pitman

2шт.

31

571340R91

BEARING

ASSY, shaker shaft pitman

2шт.

32

UA20551

RING

pitman brg external snap

4шт.

33

359894R1

RING, SNAP

RING, pitman brg internal snap

4шт.

34

585251R91

SHAFT ASSY, shaker

1шт.

35

455960R91

BALL BEARING

BEARING ASSY, shaker shaft

2шт.

36

557115R11

COLLAR

COLLAR W/SET SCREW LOCKING

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

37

571425R1

FLANGED BEARING

shaker shaft brg

4шт.

38

554545R91

PULLEY ASSY, shaker shaft driven

1шт.

39

585253R1

HUB, shaker shaft driven pulley

1шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

40

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib, shaker shaft driven pulley hub

1шт.

41

564103R91

COMPOSITE RING

BUSHING, return pan support

2шт.

17625R1

BOLT, 1/2 x 3-1/2 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
