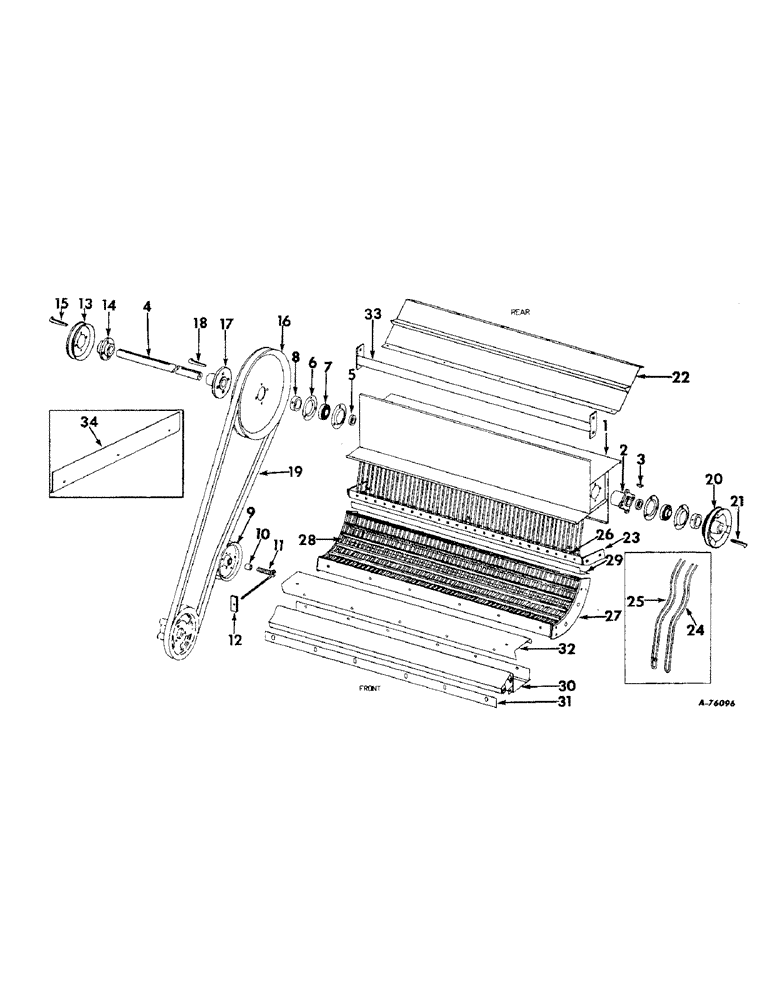

Запчасти Case IH 82 (38) - CYLINDER BEATER, DRIVE, GRATE, CONCAVES AND STONE RETARDER COVER (72) - SEPARATION
№
Артикул
Название
Примечание
Количество
1
585085R91
BEATER ASSY, cylinder steel blade
1шт.
2
619802R1
HUB, cyl beater
2шт.
106899
RIVET, 1/4 x 5/8 wagon box-hd solid
8шт.
4
585220R1
SHAFT, cylinder beater
1шт.
Q121
WASHER
1-9/32 x 2 x 16 ga
2шт.
5
619803R1
SPACER
cyl beater shaft brg
2шт.
6
617863R1
FLANGED BEARING
cyl beater shaft brg
4шт.
7
619040R91
BEARING
ASSY, cyl beater shaft
2шт.
8
619041R11
COLLAR
W/SET SCREW CYL BEATER SHAFT
2шт.
9
566518R91
PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W
ASSY, cyl beater drive belt tightener
1шт.
10
SA2502
SPACER, cyl beater drive belt tightener pulley
1шт.
11
153973C91
BOLT ASSY, cyl beater drive belt tightener draw
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
16038R1
WASHER
17/32 x 1 x 11 ga
1шт.
Q5035
WASHER
17/32 x 1 x 16 ga
1шт.
12
585209R1
STOP, belt tightener draw bolt
1шт.
13
564696R11
PULLEY
ASSY, tailings conveyor drive
1шт.
14
619808R1
HUB, tailings conveyor drive pulley
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
15
Q3950
KEY,Gib, 3/8" Sq x 2 1/4"
3/8 x 3/8 x 2-1/4 gib, tailings conveyor drive pulley
1шт.
16
564568R11
PULLEY ASSY, cyl beater driven
1шт.
17
585254R1
HUB, cyl beater driven pulley
1шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
4шт.
18
Q3950
KEY,Gib, 3/8" Sq x 2 1/4"
3/8 x 3/8 x 2-1/4 gib, cyl beater driven pulley hub
1шт.
19
550950R1
V-BELT,0.88" W
Cylinder beater drive 0.88" W
1шт.
20
585234R1
PULLEY, grain conveyor and fan drive
1шт.
21
Q3950
KEY,Gib, 3/8" Sq x 2 1/4"
3/8 x 3/8 x 2-1/4 gib
1шт.
22
154066C91
SHEET ASSY, cyl. beater baffle
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
5шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
5шт.
23
573943R91
BAR ASSY, finger grate support
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
2шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 sq-nk crg
25шт.
102635
NUT,3/8"-16, G5
29шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
29шт.
Q1505
WASHER
13/32 x 1 x 16 ga
22шт.
24
583334R1
FINGER, grate
22шт.
25
583333R91
FINGER ASSY, grate
3шт.
26
619805R1
CLAMP, finger grate
1шт.
27
588220R91
CONCAVE ASSY, wire grate
1шт.
27
619816R93
CONCAVE ASSY, heavy duty wire
1шт.
28
589861R1
ELECTRICAL WIRE
WIRE, concave
50шт.
28
589861R1
ELECTRICAL WIRE
WIRE, bundle concave, service, grass crop
53шт.
29
583386R1
EXTENSION, concave rear
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach.
6шт.
102635
NUT,3/8"-16, G5
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
30
583803R91
RETARDER ASSY, stone
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
3шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
3шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
6шт.
31
583807R1
RETAINER, stone retarder support
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
Q1505
WASHER
13/32 x 1 x 16 ga
6шт.
32
583805R11
COVER ASSY, stone retarder, special when ordered
1шт.
17411R1
BOLT,Hex, 5/16"-18 X 3/4", G2
5/16 x 3/4 hex-hd mach.
5шт.
33
584856R91
STRIPPER ASSY, cylinder
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
80680
LOCK WASHER,3/8 0.381 CST ZND
WASHER, LOCK, 3/8"
16шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
34
583338R1
PLATE, finger grate cover, special when ordered
1шт.
Выбрано товаров: 76
