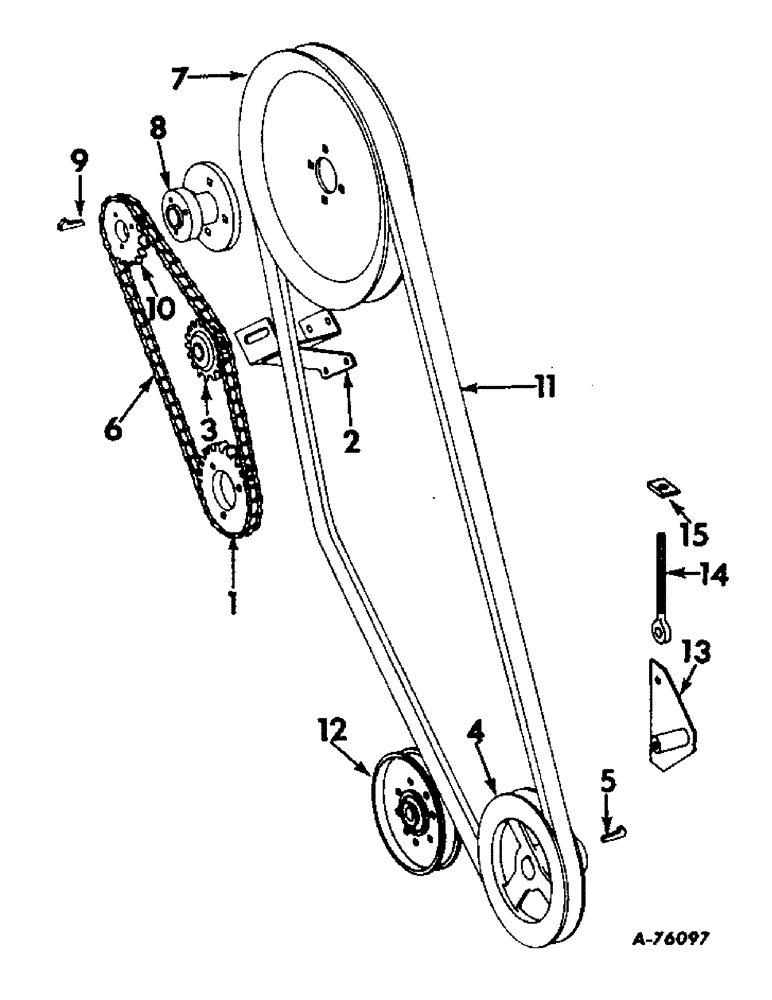

Запчасти Case IH 82 (37) - SLOW SPEED CYLINDER DRIVE (66) - THRESHING
№
Артикул
Название
Примечание
Количество
1
587924R1
SPROCKET, cyl drive 22-T, chain or belt drive
1шт.
1
587925R1
SPROCKET, cyl drive 27-T, chain or belt drive
1шт.
1
587926R1
SPROCKET, cyl drive 38-T, chain or belt drive
1шт.
2
588725R91
BRACKET ASSY, cyl drive chain tightener
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach.
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
3
582389R91
DRIVE SPROCKET
SPROCKET ASSY, drive chain tightener 15-T
1шт.
18823R1
BOLT,Hex, 5/8"-11 x 2", G2
5/8 x 2 C-Z hex-hd mach.
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
551177R1
WASHER
21/32 x 1-1/4 x 16 ga
2шт.
4
587919R3
PULLEY, cyl beater drive
1шт.
5
Q3953
KEY,Gib, 3/8" Sq x 3"
3/8 x 3/8 x 3 gib
1шт.
6
587922R91
CHAIN ROLLER ARM CYL DRIVE
1шт.
7
568937R21
PULLEY
ASSY, cyl beater driver
1шт.
15022R1
BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 sq-nk crg
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex.
4шт.
8
587920R1
HUB, cyl beater driven pulley
1шт.
9
Q3950
KEY,Gib, 3/8" Sq x 2 1/4"
3/8 x 3/8 x 2-1/4 gib, cyl beater driven pulley hub
1шт.
10
587923R1
SPROCKET, cyl drive 17-T
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
11
588723R2
V-BELT 1.26" W, Cyl beater drive 1.26" W
1шт.
12
628798R11
PULLEY ASSY, cyl beater drive belt tightener
1шт.
13
628799R91
BRACKET ASSY, cyl beater drive belt tightener
1шт.
15010R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 sq-nk crg
1шт.
179881
BOLT,1/2" - 13 x 1", Gr 5
2шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
615090R1
WASHER
17/32 x 2 x 11 ga
1шт.
552423R1
WASHER
1-13/32 x 2-1/4 x 11 ga
4шт.
14
628802R1
BOLT, beater drive belt tightener
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
15
628803R1
ANCHOR, drive belt tightener draw bolt
1шт.
Выбрано товаров: 36
