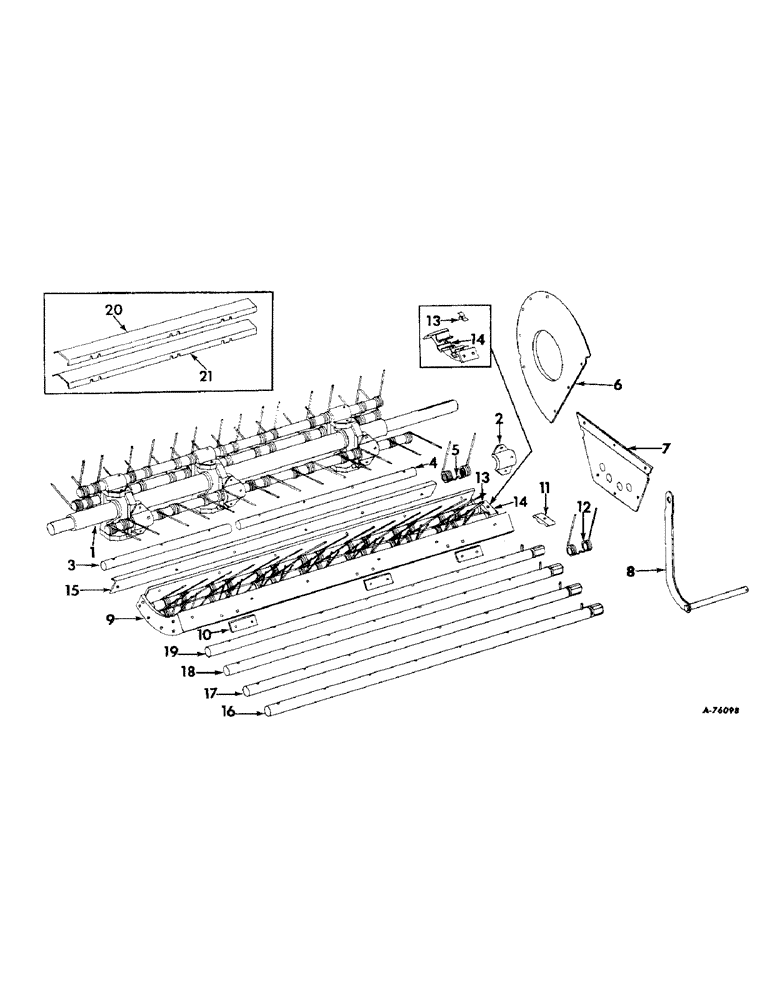

Запчасти Case IH 82 (36) - SPRING TOOTH CYLINDER, CONCAVE AND FILLER PLATES (66) - THRESHING

1

584128R91

CYLINDER ASSY, spring tooth

1шт.

2

584116R11

CLAMP ASSY, spring shaft

8шт.

2

584116R1

CLAMP, spring clamp

4шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16 x 1-1/4 hex-hd cap

24шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

24шт.

3

584118R1

SHAFT, cylinder spring left

4шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16 x 2 C-Z hex-hd cap

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 x 2 C-Z hex.

12шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

Q5028

WASHER

15/32 x 1 x 11 ga

12шт.

4

584117R1

SHAFT, cylinder spring right

4шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16 x 2 C-Z hex-hd cap

16шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

16шт.

Q5028

WASHER

15/32 x 1 x 11 ga

16шт.

5

571312R1

TOOTH

SPRING, cylinder

28шт.

6

153988C1

COVER ASSY, cyl right end

1шт.

7

584125R1

COVER, concave end

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

584135R91

ARM ASSY, cyl drive belt tightener pivot

1шт.

9

584119R91

CONCAVE ASSY

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

584124R1

SPACER, concave spring support

6шт.

11

584133R1

ANCHOR, spring shaft

4шт.

17626R1

BOLT, 7/16 x 3 hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga

2шт.

12

571312R1

TOOTH

SPRING, concave

28шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 hex-hd cap

28шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

28шт.

Q5028

WASHER

15/32 x 1 x 16 ga

28шт.

13

571307R1

SUPPORT, spring shaft

3шт.

14

571309R1

CLAMP, spring shaft

6шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

583386R1

EXTENSION, concave rear

1шт.

16

584122R11

SHAFT ASSY, concave spring 1st row

1шт.

17

584123R11

SHAFT ASSY, concave spring 2nd row

1шт.

18

589119R11

SHAFT ASSY, concave spring 3rd row

1шт.

19

589120R11

SHAFT ASSY, concave spring 4th row

1шт.

20

631805R1

PLATE, 1st and 3rd filler

2шт.

21

631806R1

PLATE, 2nd and 4th filler

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

24шт.
