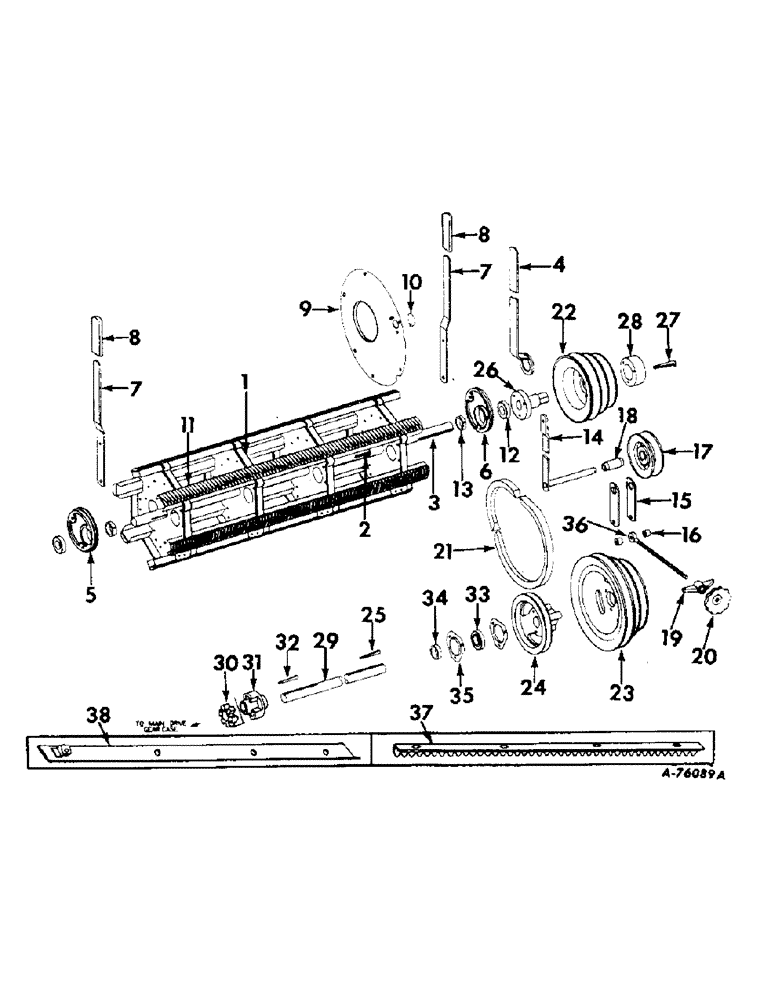

Запчасти Case IH 82 (34) - CYLINDER, CYLINDER DRIVE AND CYLINDER BAR ATTACHMENT (66) - THRESHING

1

936193R91

CYLINDER ASSY, less shaft

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach.

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

2шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach.

2шт.

17495R1

BOLT, 5/16 x 1-3/4 hex-hd mach.

2шт.

181656

SCREW, 7/16-20 x 5/8 C-Z hex-hd cap

42шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

42шт.

PO10534

WASHER

15/32 x 1-1/4 x 11 ga

42шт.

557265R1

WASHER

11/32 x 1 x 11 ga

16шт.

575806R1

WASHER

11/32 x 1-1/4 x 11 ga

12шт.

2

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 3/8 x 2-1/2 gib-hd, cylinder hub

2шт.

3

585439R1

SHAFT, cylinder

1шт.

4

585423R91

WRENCH ASSY, cyl rocking

1шт.

5

153984C1

HOUSING

cyl brg left

1шт.

6

153985C1

HOUSING, cyl brg right

1шт.

7

153986C11

LEVER ASSY, cylinder adj.

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16 x 1-1/4 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, 7/16 int-tooth lock

2шт.

NLS

NO LONGER SERVICED

WASHER, 7/16 ext-tooth lock

2шт.

8

632519R1

GRIP

HANDLE, cyl adj lever

2шт.

9

153987C91

COVER ASSY, cyl right end

1шт.

NLS

NO LONGER SERVICED

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

10659K

DOOR, cyl inspection

1шт.

11

613850R91

SPARE PART

BARS, cylinder set of two, consisting of one 613848R1 left bar and one 613849R1 right bar

1шт.

12

585497R91

BEARING

ASSY, cyl shaft ball

2шт.

13

585498R11

COLLAR

W/SET SCREW LKG

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

14

585445R91

ARM ASSY, cyl drive belt tightener pivot

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach.

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

28407K

WASHER

17/32 x 1-1/4 x 22 ga

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

3шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

15

585449R1

BRACKET, cyl drive belt tightener

1шт.

15

585449R1

BRACKET, cyl drive belt tightener, slow speed

2шт.

17627R1

BOLT

1/2 x 3 hex-hd mach.

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

12545K

SPACER

drive belt tightener bracket

2шт.

17

574403R91

PULLEY

ASSY, cyl drive belt tightener

1шт.

18

583358R1

HUB, belt tightener pulley brg

1шт.

19

583341R1

TRUNNION, cyl drive belt tightener

1шт.

20

583342R1

HANDLE, cyl drive belt tightener

1шт.

21

585457R1

BELT,1.26" W

V-BELT , Cylinder drive 1.26" W

1шт.

22

585458R1

PULLEY, cylinder driven small

1шт.

23

585459R1

PULLEY, cylinder driven large

1шт.

24

585460R1

PULLEY, cyl beater drive

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/2 hex-hd cap

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

Q3953

KEY,Gib, 3/8" Sq x 3"

3/8 x 3/8 x 3 gib

1шт.

26

585461R2

HUB, cyl driven pulley

1шт.

17521R1

BOLT,Hex, 3/8" - 16 x 2", Gr 2

3/8 x 2 hex-hd mach.

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3 1/2 hex-hd cap

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

Q3953

KEY,Gib, 3/8" Sq x 3"

3/8 x 3/8 x 3 gib, cyl driven pulley hub

1шт.

28

585462R1

SPACER, cyl driven hub

1шт.

29

585440R1

JACKSHAFT, cyl drive

1шт.

30

936685R1

MEMBER

BUSHING, cyl jackshaft coupling ( replaced 936985R1 )

1шт.

31

936687R1

COUPLING

cyl jackshaft driven

1шт.

32

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 3/8 x 1-1/2 gib, cyl jackshaft driven coupling

1шт.

33

256557R91

BEARING

ASSY, cyl jackshaft ball

1шт.

34

557113R11

COLLAR

W/SET SCREW LKG

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

1шт.

35

571426R1

PLATE

FLANGE, cyl jackshaft brg mounting

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

36

585455R1

BOLT

drive belt tightener draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

37

935178R1

BAR, cylinder notched, special

3шт.

181696

1/2-20 x C-Z hex-hd cap

12шт.

120371

NUT,1/2"-20, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

Q5035

WASHER

17/32 x 1 x 16 ga

12шт.

38

936198R91

FILLER ASSY, cylinder, special

6шт.

181693

SUPPORT

SCREW, 1/2-20 x 3/4 C-Z hex-hd cap

24шт.

120371

NUT,1/2"-20, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.
