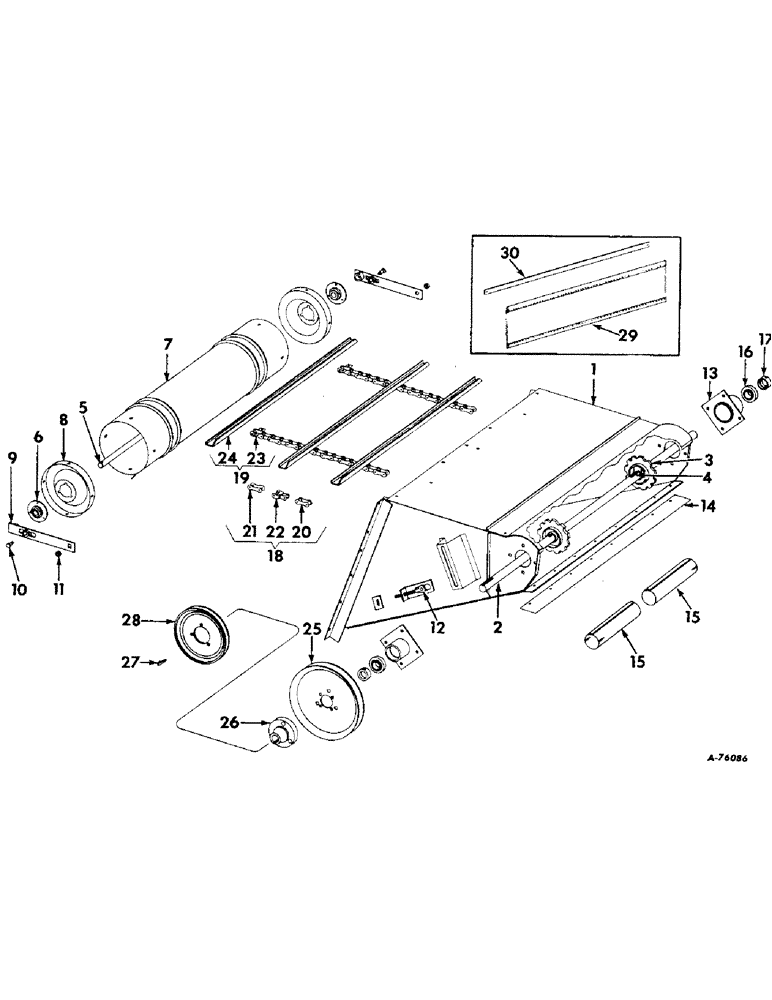

Запчасти Case IH 82 (24) - FEEDER, FEED CONVEYOR CHAIN, FEEDER DRIVE AND FEEDER CHECK FLAP (60) - PRODUCT FEEDING

1

585095R91

FEEDER ASSY

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

8шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

650137R1

PIN,3/4" x 4 3/16"

3/4 x 4-3/16 std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

585110R1

SHAFT, feeder drive

1шт.

3

556991R1

SPROCKET, feeder upper

2шт.

4

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 5/16 x 1-1/2 taper

2шт.

5

585111R1

SHAFT, feeder lower

1шт.

6

565337R91

BALL BEARING

BEARING ASSY, feeder lower shaft

2шт.

7

585112R1

DRUM, feeder conveyor

1шт.

14896R1

BOLT, 5/16-18 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

570140R1

HEAD, feed conveyor drum

2шт.

562335R1

CARRIAGE BOLT,5/16" - 18 x 3/4", Class 5

BOLT, 5/16-18 x 3/4 sq-nk crg

6шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 ESSNA lock

6шт.

9

610200R11

ARM ASSY, feed conveyor chain adj

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

551654R1

WASHER

15/32 x 1-1/2 x 16 ga

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

615062R1

WASHER

15/32 x 7/8 x 11 ga

2шт.

10

611139R1

BOLT

feed conveyor adj arm locking

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x1 x16 ga

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

11

588289R1

SPACER, conveyor chain adj arm

2шт.

12

619199R1

BOLT,7/16" - 14 x 3 3/8"

conveyor chain adj

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

4шт.

13

583745R91

BOX ASSY, feeder pivot brg

2шт.

14

587671R1

SEAL, feed plate extension

1шт.

15

584051R1

SHIELD, feeder drive shaft

2шт.

16

935984R91

BEARING, NEEDLE

BEARING ASSY, feeder upper shaft

2шт.

17

588094R11

COLLAR

W/SET SCREW LOCKING

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

18

585113R91

CONVEYOR W/SLATS FEEDER

1шт.

19

935031R91

SLAT W/ ATTACHING LINK CONVEYOR

1шт.

20

567006R91

CHAIN LINK

LINK, roller feed conveyor 1-1/2

1шт.

21

567007R91

DRAG LINK

LINK, connecting feed conveyor

1шт.

22

567008R91

LINK, offset feed conveyor 1-1/2

1шт.

23

611380R91

LINK

attaching feed conveyor

1шт.

24

SLAT, feed conveyor, not serviced separately

1шт.

25

564569R11

PULLEY ASSY.

PULLEY ASSY, feeder drive

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8 x 1-3/4 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

26

585119R1

HUB, feeder driven pulley

1шт.

27

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

1шт.

28

587622R11

PULLEY

ASSY, auger jackshaft drive

1шт.

29

619840R1

FLAP, feeder check, for soy bean

1шт.

30

619841R1

STRAP, feeder check, for soy bean

1шт.
