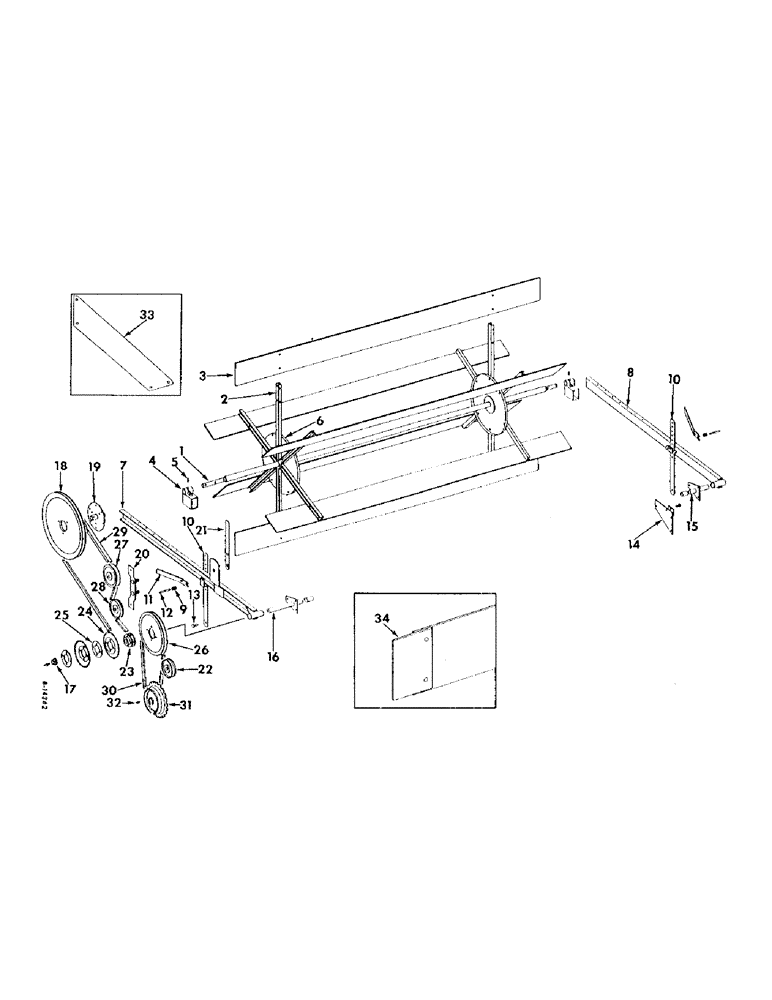

Запчасти Case IH 82 (22) - REEL, REEL SUPPORTS, REEL DRIVE AND REEL GUARDS (58) - ATTACHMENTS/HEADERS

1

585132R91

SHAFT ASSY, reel

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

4шт.

2

585134R1

ARM, reel

12шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach.

12шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

12шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

3

585135R1

BAT, reel

6шт.

15419R1

BOLT, 1/4 x 3/4 step

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

4

564847R1

BEARING, reel shaft

2шт.

102908

BOLT

SCREW, 7/16 x 1-1/4 sq-hd cup pt set

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

2шт.

6

564841R1

SUPPORT, reel arm

2шт.

7

585136R91

ARM ASSY, reel left support

1шт.

8

585137R91

ARM ASSY, reel right support

1шт.

9

T7761-2

SPRING, reel adj latch

2шт.

10

585157R1

BAR, reel lift

2шт.

11

564861R1

LEVER, reel adj latch

2шт.

M92150

PIN

5/16 x 3/4 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

12

564862R1

PIN, reel adj latch

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

13

585079R1

PIN, reel support lower

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

14

583791R91

SUPPORT ASSY, reel lift right arm

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

7/16 x 3/4 hex-hd

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

15

610177R11

SHAFT ASSY, reel right arm pivot

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

3шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16

610176R11

JACKSHAFT ASSY, reel drive

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

5шт.

17

H4689M

COLLAR ASSY.

COLLAR, reel jackshaft

1шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

SCREW, 3/8 x 1/2 hex-soc-hd set

1шт.

18

554575R91

PULLEY ASSY, reel driven

1шт.

18

588227R11

PULLEY

ASSY, reel driven, slow speed reel drive

1шт.

19

588225R91

HUB ASSY, reel driven pulley

1шт.

Q3529

AXLE PIN

PIN, 5/16 x 1-5/8 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach.

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

610518R11

BRACKET ASSY, reel drive idler pulley

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

610514R1

HANDLE, idler puller adj

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

585255R91

PULLEY

ASSY, reel jackshaft drive belt tightener

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3019

NUT

WASHER, 17/32 sq x 1-1/4 x 14 ga

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

23

585154R1

HUB, reel jackshaft pulley

1шт.

24

587768R91

PULLEY ASSY, reel drive

2шт.

17573R1

BOLT, 5/16 x 2-1/2 hex-hd mach.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

21659K

RING

SPACER, reel drive pulley used loose

5шт.

26

564697R11

PULLEY ASSY, reel jackshaft driven

1шт.

27

559087R92

PULLEY

ASSY, reel drive belt tightener

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28

585255R91

PULLEY

ASSY, reel drive belt idler

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

29

580026R1

V-BELT

Reel drive

1шт.

29

18413KA

BELT,0.66" W x 146.17" L

V-BELT , Reel drive, Slow speed reel drive 0.66" W x 146.17" L

1шт.

30

24510K

BELT

reel jackshaft drive

1шт.

31

610504R1

SPROCKET, auger drive

1шт.

32

113879

KEY

5/16 x 1-1/4 woodruff

1шт.

33

588748R1

GUARD, reel end

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach.

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

557263R1

WASHER, 17/64 x 3/4 x 22 ga

32шт.

34

619844R1

SWEEP, reel bat end

12шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4 x 1 hex-hd mach.

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

557263R1

WASHER, 17/64 x 3/4 x 22 ga

48шт.
