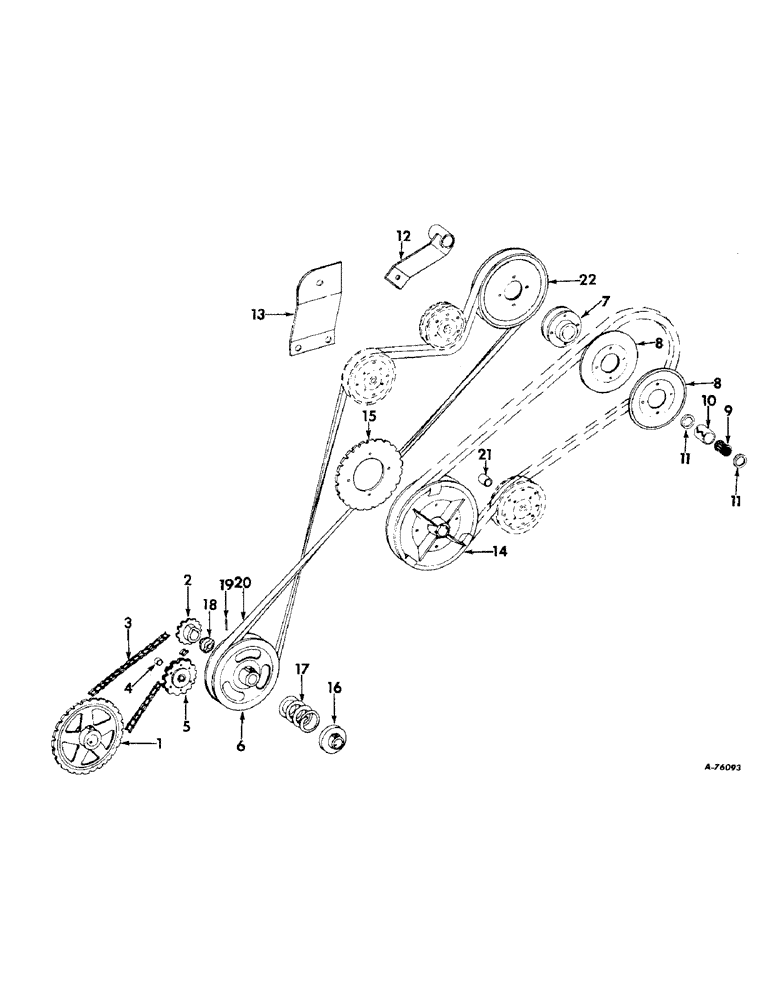

Запчасти Case IH 82 (18) - WINDROW PICKUP DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
552271R1
SPROCKET, main shaft driven
1шт.
551680R1
DOWEL
PIN, 5/16 x 2-7/16 std-hd-dld
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
2
2562KA
SPROCKET, roller drive
1шт.
Q480
KEY, 5/16 x 1/4 x 1
1шт.
3
552288R91
CHAIN, pickup drive
1шт.
4
576271R1
SPACER
drive chain tightener sprocket
1шт.
5
565336R91
BEARING
SPROCKET ASSY, drive chain tightener
1шт.
15126R1
BOLT, 1/2-13 x 2-3/4 crg
1шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
Q5035
WASHER
17/32 x 1 x 16 ga
1шт.
6
583597R1
PULLEY, pickup driven
1шт.
7
583586R1
HUB, jack-shaft driven pulley
1шт.
8
587768R91
PULLEY ASSY, jack-shaft driven
2шт.
17547R1
BOLT, 5/16-18 x 2-1/4 mach
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
9
583587R91
BEARING ASSY, jack-shaft driven pulley
1шт.
10
552439R1
SPARE PART
RACE, jack-shaft driven pulley brg
1шт.
11
564592R91
SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk
jack-shaft driven pulley oil
2шт.
12
583588R91
SUPPORT ASSY, jack-shaft outer
1шт.
13
583591R1
BRACKET, drive belt tightener
1шт.
14
583584R1
PULLEY, jack-shaft driven
1шт.
17446R1
BOLT,3/8" - 16 x 1 1/4", Gr 2
3/8-16 x 1-1/4 mach
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
15
583585R1
SPROCKET, platform auger driven
1шт.
16
M5508
COLLAR, jack-shaft throw-out
1шт.
Q3516
PIN
1/4 x 2 std-hd-dld
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
17
M1456
SPRING, jack-shaft throw-out
1шт.
18
550959R1
RATCHET, jack-shaft throw-out
1шт.
19
U18183
PIN, throw-out ratchet
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
20
13988K
V-BELT,115.23" L
Pickup Drive 115.23" L
1шт.
21
48193K
SPACER, jack-shaft drive belt tightener
1шт.
15144R1
BOLT
1/2-13 x 3 crg
1шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
22
575441R91
PULLEY ASSY, pickup drive
1шт.
Выбрано товаров: 41
