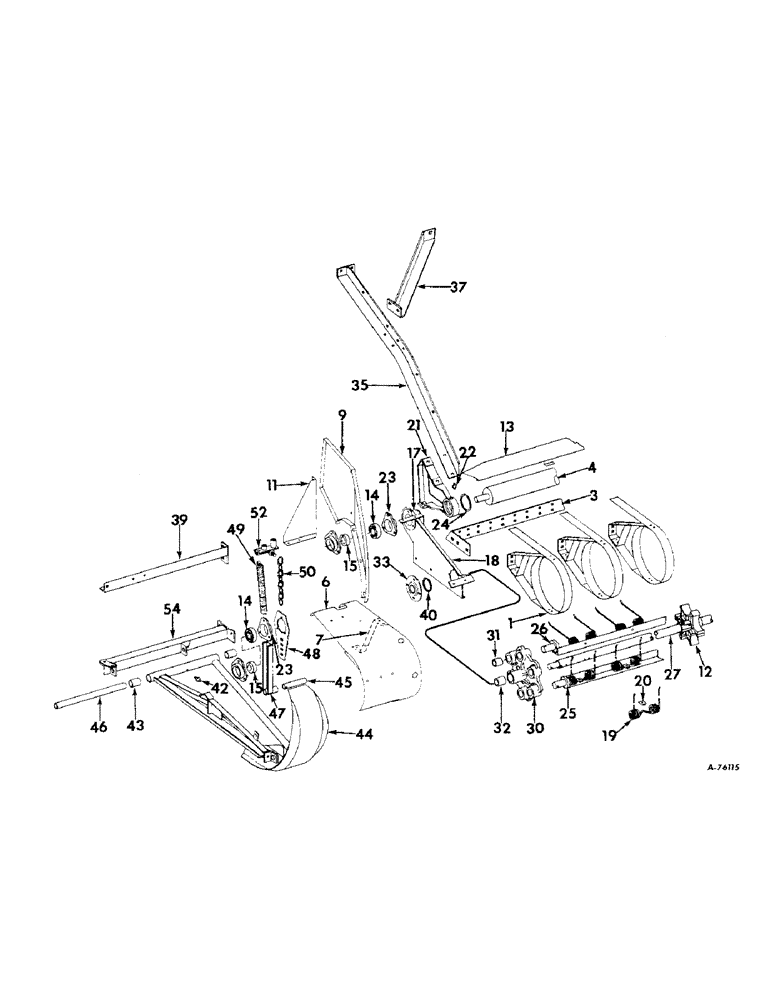

Запчасти Case IH 82 (14) - WINDROW PICKUP ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

584184R92

STRIP ASSY, grain deck

31шт.

106884

RIVET

3/16 x 1/2 wb-hd

62шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

62шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

62шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

62шт.

2

584189R1

ARM, cam

6шт.

15072R1

BOLT

7/16-14 x 2 crg

6шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

3

587887R91

ANCHOR ASSY, grain deck strip

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

583519R91

ROLLER ASSY

1шт.

5

587889R1

SHIELD, left end

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SCREW, no. 10-24 x 3/8 slt-rd-hd

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

109084

NUT,1/4"-20, G5

4шт.

110633

NUT,#10-24

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

587890R1

SHIELD, right end

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SCREW, no. 10-24 x 3/8 slt-rd-hd

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

109084

NUT,1/4"-20, G5

4шт.

110633

NUT,#10-24

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

584198R1

STIFFENER, end shield

1шт.

8

567768R1

DIVIDER, end shield left

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd

5шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd

1шт.

109084

NUT,1/4"-20, G5

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

4шт.

9

567769R1

DIVIDER, end shield right

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd

6шт.

109084

NUT,1/4"-20, G5

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

6шт.

10

583615R1

STIFFENER, left divider

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

568036R1

STIFFENER, right divider

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 slt-rd-hd

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

561090R1

SPIDER, center

2шт.

17600R1

BOLT, 5/16-18 x 2-3/4 mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

583611R91

EXTENSION ASSY, platform

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

14

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, roller shaft

4шт.

15

455102R11

COLLAR

ASSY, w/set screw

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt set

4шт.

16

584274R91

BRACKET ASSY, main shaft left

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

584075R1

HOUSING, roller shaft brg

2шт.

18

584280R91

BRACKET ASSY, main shaft right

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

588735R1

TOOTH

TINE

48шт.

20

27513K

CUP WASHER

WASHER, tine cup

48шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

48шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

48шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

48шт.

21

583511R1

BRACKET, pivot

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8-16 x 1-3/4 mach

2шт.

17574R1

BOLT (SPREADER)

BOLT, 3/8-16 x 2-1/2 mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

23

571424R1

FLANGE

main shaft brg

8шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

3шт.

24

583564R1

SNAP RING,#250, 2.356, Ext

RING, roller shaft brg snap

2шт.

25

588717R91

HOLDER ASSY, left tine

3шт.

615240R1

WASHER

1-3/32 x 1-1/2 x 16 ga

12шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

3шт.

26

588718R91

HOLDER ASSY, right tine

3шт.

615240R1

WASHER

1-3/32 x 1-1/2 x 16 ga

12шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

3шт.

27

588733R91

SHAFT ASSY, main

1шт.

F18476

WASHER

1-9/32 x 1-3/4 x 16 ga

5шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

4шт.

28

584301R91

CRANKSHAFT BEARING

BEARING ASSY, cam

6шт.

29

935602R3

CAM

tine control

1шт.

15108R1

BOLT, 3/8-16 x 2-1/2 crg

3шт.

30

584376R1

SPIDER, main shaft

2шт.

551680R1

DOWEL

PIN, 5/16 x 2-7/16 std-hd-dld

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

31

584377R1

BUSHING

spider

12шт.

32

584114R1

SPACER

main shaft right brg

1шт.

33

584147R91

BEARING ASSY,1.258" ID x 4.4375" OD x 0.9"

ASSY, main shaft right

2шт.

34

583600R91

SUPPORT ASSY, left

1шт.

14986R1

BOLT, 5/16-18 x 1/2 crg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 crg

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

17447R1

BOLT

7/16-14 x 1-1/4 mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

35

583554R91

SUPPORT ASSY, right

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 mach

1шт.

17447R1

BOLT

7/16-14 x 1-1/4 mach

2шт.

102635

NUT,3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

36

583565R91

BRACE ASSY, left support

1шт.

15008

KEY

BOLT, 3/8-16 x 1 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

583570R91

BRACE ASSY, right support

1шт.

15008

KEY

BOLT, 3/8-16 x 1 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

38

583543R91

STIFFENER ASSY, left support brace rear

1шт.

14986R1

BOLT, 5/16-18 x 1/2 crg

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

39

583545R91

STIFFENER ASSY, right support brace rear

1шт.

14986R1

BOLT, 5/16-18 x 1/2 crg

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

40

583976R1

SNAP RING,#125, 1.179", Ext

RING, main shaft snap

1шт.

41

583532R92

RUNNER ASSY, left

1шт.

17494R1

BOLT

1/4-20 x 1-3/4 mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 in. lubrication

2шт.

43

551957R1

BUSHING, runner tube pivot

4шт.

44

583533R92

RUNNER ASSY, right

1шт.

17494

STRAP

BOLT, 1/4-20 x 1-3/4 mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

45

583529R1

PIN

runner pivot

2шт.

46

583520R1

TUBE, runner pivot 0.656" ID, 0.875" OD, 12.156" Length

2шт.

18123R1

BOLT, 5/8-11 x 13-1/2 mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

47

583530R91

BRACKET ASSY, runner lower adjusting

2шт.

48

583528R1

BRACKET, runner upper adjusting

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

49

P303

SPRING

balance

2шт.

50

583598R91

CHAIN ASSY, runner retainer

2шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

7/16-14 x 1-1/2 crg

2шт.

17497R1

BOLT, 7/16-14 x 1-3/4 crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

12шт.

51

583512R91

BRACKET ASSY, left retainer chain anchor

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

1шт.

15055R1

BOLT, 7/16-14 x 1-3/4 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

52

583523R91

BRACKET ASSY, right retainer chain anchor

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

17574R1

BOLT (SPREADER)

BOLT, 3/8-16 x 2-1/2 mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

53

583559R91

SUPPORT ASSY, left runner pivot

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 mach

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

54

583556R91

SUPPORT ASSY, right runner pivot

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 mach

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
