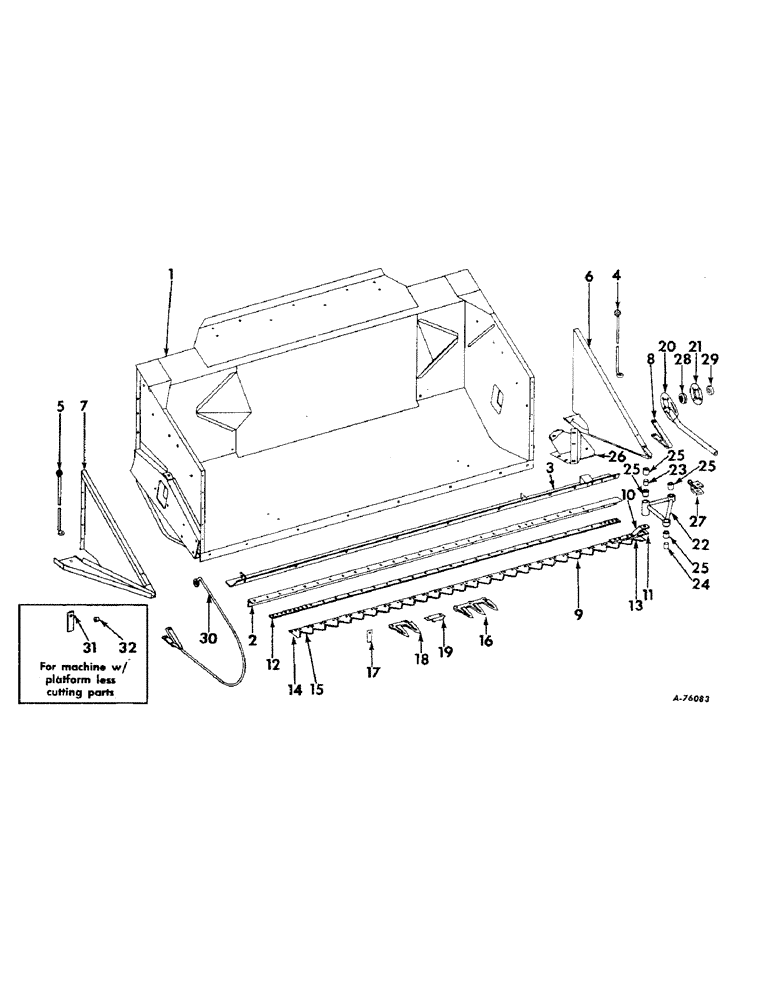

Запчасти Case IH 82 (12) - PLATFORM, DIVIDERS, KNIFE AND GUARDS AND KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

588615R91

PLATFORM ASSY.

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 hex-hd mach.

9шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16 x 3/4 hex. hd. mach.

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach.

2шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach.

1шт.

17522R1

BOLT, 7/16-14 x 2 hex-hd mach.

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

9шт.

102635

NUT,3/8"-16, G5

11шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

W6652

WASHER

15/32 x 1 x 16 ga.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

585071R1

ANGLE, cutter bar

1шт.

2

935847R1

ANGLE, cutter bar for Canada

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

BOLT, 3/8-16 x 1-3/8 sq-nk crg

17шт.

102635

NUT,3/8"-16, G5

18шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

Q1505

WASHER

13/32 x 1 x 16 ga.

1шт.

3

585072R91

SUPPORT ASSY, cutter bar

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

11шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13 x 1 hex-hd mach.

4шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

7/16-14 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

102635

NUT,3/8"-16, G5

11шт.

102637

NUT,1/2"-13, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga.

3шт.

4

588619R1

BRACE, left side sheet

1шт.

5

585078R1

BRACE, right side sheet

1шт.

6

588267R91

DIVIDER ASSY, left

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach.

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

588272R91

DIVIDER ASSY, right

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach.

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

585904R1

POINT, divider

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

585904R1

POINT, dividers, less cutting platform

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

585187R91

KNIFE ASSY

serrated

1шт.

9

629624R91

KNIFE ASSY

green crop

1шт.

9

935846R91

KNIFE ASSY, under serrated, heavy duty for Canada

1шт.

10

583775R1

SUPPORT

LEG, knife head upper

1шт.

14767R1

RIVET,Oval Hd, .203" x 1"

no. 6 x 7/8 small ov-hd

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16 x 2-1/4 hex-hd

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

585186R1

BAR

LEG, knife head lower

1шт.

14763R1

RIVET,Oval Hd, .203" x 7/8"

no. 6 x 7/8 small ov-hd

1шт.

12

585188R1

BACK, knife

1шт.

13

559269R1

CUTTER BAR

SECTION, left half

1шт.

13

618017R1

KNIFE

SECTION, left half, green crop

1шт.

13

608128R1

KNIFE

SECTION, left half, Canada

1шт.

14

26108K

KNIFE SECTION

SECTION, right half

1шт.

14

619097R1

KNIFE SECTION

SECTION, right half, green crop

1шт.

14

608129R1

KNIFE SECTION

SECTION, right half, Canada

1шт.

14751R1

RIVET, no. 6 x 9/16 small ov-hd Oval Hd, .203" x 9/16"

2шт.

15

49896K

KNIFE SECTION

SECTION, knife

26шт.

15

618019R1

KNIFE SECTION

SECTION, knife, green crop

26шт.

15

MA1389

KNIFE SECTION

SECTION, knife, Canada

26шт.

14751R1

RIVET, no. 6 x 1-3/16 small ov-hd Oval Hd, .203" x 9/16"

49шт.

16

585189R11

GUARD

ASSY, triple

1шт.

17

11943K

PLATE ASSY.

PLATE, guard ledger

3шт.

13888R1

RIVET, no. 6 x 1-3/16 csk-hd solid

1шт.

18

633098R1

GUARD

knife double

12шт.

19

552082R1

GUIDE

CLIP, knife

5шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

BOLT, 3/8 x 1-3/8 sq-nk crg

10шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

20

585179R91

PITMAN

ASSY, knife

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

572572R1

FLANGE, pitman brg

1шт.

22

585182R92

LEVER

BELLCRANK ASSY, knife drive

1шт.

23

583773R1

SPACER

bushing hub

1шт.

24

583774R1

BUSHING

SPACER, front bushing

1шт.

25

583768R91

COMPOSITE RING

BUSHING ASSY, bellcrank

4шт.

26

588600R91

BRACKET ASSY, bellcrank support

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

1шт.

17794R1

BOLT, 5/8 x 4-3/4 hex-hd mach.

1шт.

102635

NUT,3/8"-16, G5

1шт.

102639

NUT,5/8"-11, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

552416R1

WASHER, 21/32 x 1-1/4 x 22 ga

2шт.

27

583765R91

ROD

END ASSY, knife drive pitman

1шт.

17552R1

BOLT, 5/8 x 2-1/4 hex-hd mach.

1шт.

102639

NUT,5/8"-11, G5

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16NF hex. jam

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

455960R91

BALL BEARING

BEARING ASSY, knife pitman

1шт.

29

557115R11

COLLAR

COLLAR W/SET SCREW

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

1шт.

30

584340R91

ROD ASSY, right divider

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach.

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

3шт.

102635

NUT,3/8"-16, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

936544R1

SUPPORT, platform extension

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

15441K

SPACER

right runner retainer chain bracket

1шт.
