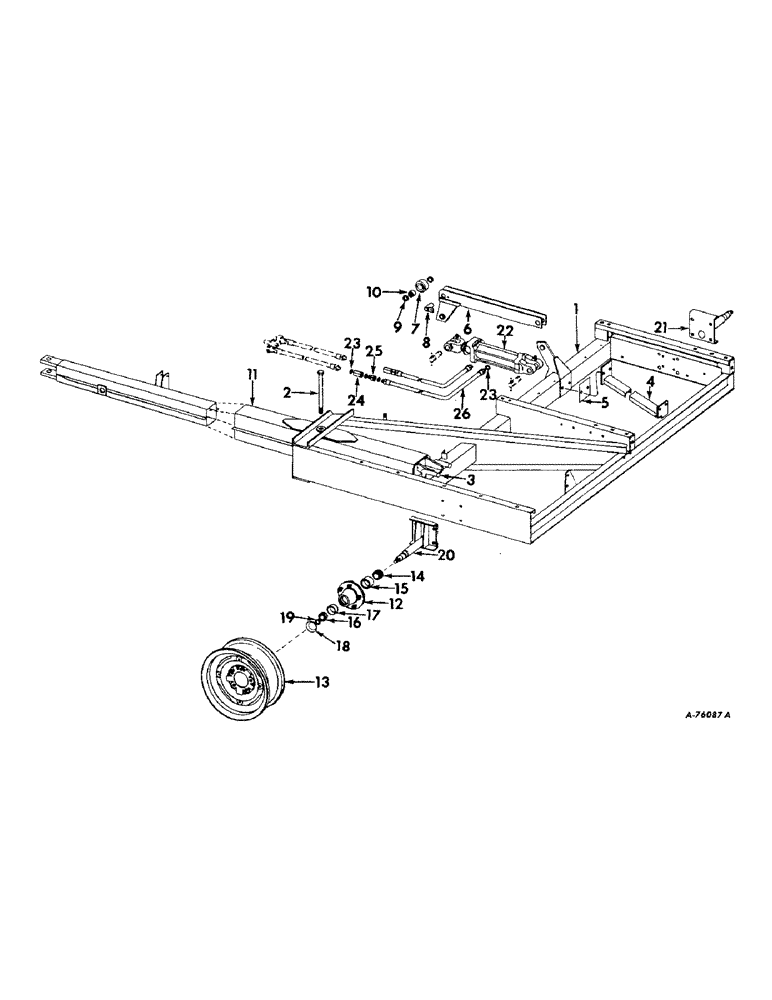

Запчасти Case IH 82 (26) - MAIN FRAME AND MAIN WHEELS (39) - FRAMES AND BALLASTING

1

153900C91

FRAME ASSY, main

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

10шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach.

2шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach.

2шт.

17523R1

BOLT, 1/2 x 2 hex-hd mach

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 hex-hd cap, Course Threads

2шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

2шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

SCREW, 3/4 x 5-1/2 hex-hd cap

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

102635

NUT,3/8"-16, G5

8шт.

102637

NUT,1/2"-13, G5

14шт.

102639

NUT,5/8"-11, G5

4шт.

220081

NUT

3/4 hex.

4шт.

NLS

NO LONGER SERVICED

7/16 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

585020R1

BOLT, 7/8 x 9-1/2 hex-hd

1шт.

427642

SLOTTED NUT,7/8"-9, G5

NUT, 7/8 sltd-hd

1шт.

Q3648

PIPE

29/32 x 2 x 16 ga

2шт.

453599R1

WASHER

29/32 x 2 x 1/4

4шт.

551659R1

WASHER

29/32 x 1-1/2 x 22 ga

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

3

584904R1

PIN, tongue locating

2шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

2шт.

455184R1

LOCK PIN,5/16" x 3", Slotted

Pin, 5/16" x 3", Slotted

2шт.

4

583715R91

BRACE ASSY, main fram axle

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach.

2шт.

17792R1

BOLT, 1/2 x 4-3/4 hex-hd mach.

2шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

584176R1

SHIM, main frame axle brace

2шт.

6

585465R91

ARM ASSY, feeder lift upper link

1шт.

457696R1

PIN

1 x 2-7/16 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

572783R1

ROLLER, platform lift

1шт.

8

583711R91

SLEEVE ASSY, lift roller

1шт.

179812

GEAR

5/16 x 1/2 hex-hd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

584912R91

OIL SEAL

assy, lift roller oil

2шт.

10

586633R91

NEEDLE BEARING

ASSY, lift roller

1шт.

11

584914R92

TONGUE ASSY, hitch

1шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach.

2шт.

17548R1

BOLT, 3/8 x 2-1/4 hex-hd mach.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

102635

NUT,3/8"-16, G5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

584260R11

HUB ASSY, wheel

2шт.

12

654341R91

HUB

ASSY, wheel, for 7-50-20 tires

2шт.

13

584259R91

RIM AND DISC ASSY

2шт.

13

654340R91

RIM AND DISC ASSY, for 7-50-20 tires

2шт.

14

459913R91

BEARING CONE

BEARING ASSY, hub inner cone

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, hub outer cone

2шт.

17

651817R1

BEARING CUP

CUP, outer bearing

2шт.

18

518842R1

CAP

hub

2шт.

19

584253R1

WASHER

25/32 x 1-3/4 x 3/16

1шт.

20

153918C91

AXLE ASSY, left stub

1шт.

21

153922C91

AXLE ASSY, right stub

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

22

371292R91

HYDRAULIC CYLINDER

CYLINDER ASSY, hydraulic, 3-1/2 x 8 in., 7/8 and 3/4 port hole, see note

1шт.

22

360997R91

CYLINDER ASSY, hydraulic, 3-1/2 x 8 in., 1/2 port hole, see note

1шт.

23

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, see note

8шт.

24

584802R1

CONNECTOR, ELEC

COUPLING, see note

2шт.

25

373984R91

VALVE

restrictor, see note

1шт.

26

372437R91

HOSE

ASSY, extension, 112 in. long, see note

2шт.
