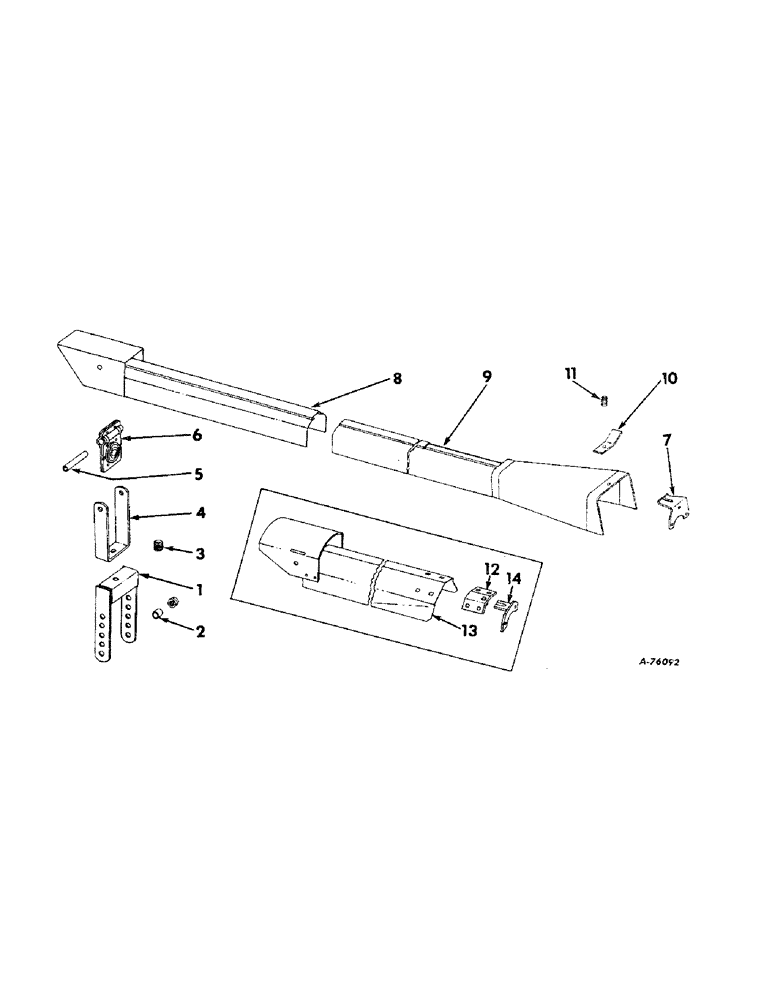

Запчасти Case IH 82 (55) - DRIVE SHAFT SHIELD AND SUPPORT (31) - IMPLEMENT POWER TAKE OFF

1

585484R91

SUPPORT ASSY, power drive shaft

1шт.

17586R1

BOLT, 3/4 x 2-1/2 dld hex-hd mach

1шт.

18651R1

BOLT, 3/4 x 8-1/2 hex-hd mach

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 slt-hex

2шт.

10152K

WASHER, 13/16 x 2

1шт.

575814R1

WASHER

25/32 x 2 x 11 ga

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

2

H29432

SPACER, support strap pivot

1шт.

3

55770D

SPRING

support strap pivot

2шт.

4

631804R1

YOKE, drive shaft brg

1шт.

17864R1

BOLT, 1/2 x 5-3/4 hex-hd mach.

1шт.

9413941

NUT,1/2"-13, GA

1/2 stover lock

1шт.

5

631803R1

TUBE

drive shaft brg pivot

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

2шт.

6

ST669

BEARING ASSY,35mm ID

power drive shaft

1шт.

7

572864R1

BRACKET, drive shaft shield rear

1шт.

8

631801R91

SHIELD ASSY, drive shaft

1шт.

9

556723R92

SHIELD ASSY, drive shaft rear

1шт.

10

C33463

LATCH, drive shaft rear shield

1шт.

17583R1

BOLT, 3/8 x 2-1/2 dld hex-hd mach.

1шт.

102635

NUT,3/8"-16, G5

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

33464

SPRING, rear shield latch

1шт.

12

462162R91

BRACKET ASSY, drive shaft shield rear, 1000 rpm

1шт.

13

935929R91

SHIELD ASSY, power drive shaft, 1000 rpm

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

935926R91

BRACKET ASSY, drive shaft shield rear support, 1000 rpm

1шт.
