(52[1]) - POWER DRIVE ATTACHMENT, 1000 RPM

Запчасти Case IH 82 (52[1]) - POWER DRIVE ATTACHMENT, 1000 RPM (31) - IMPLEMENT POWER TAKE OFF

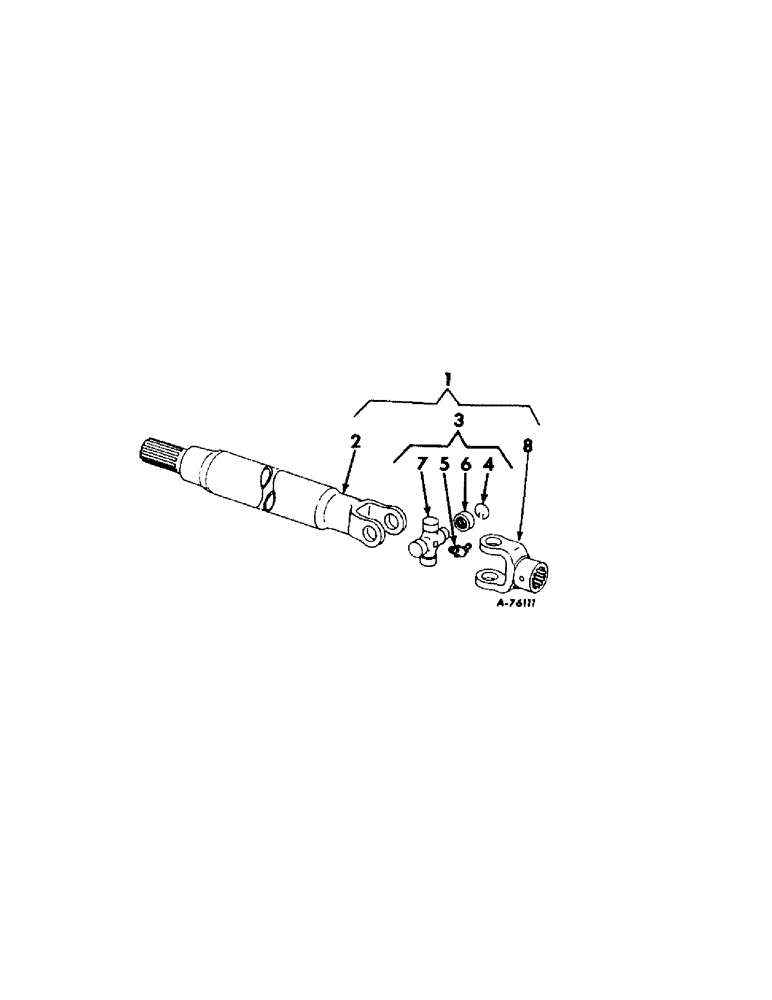

Схема запчастей Case IH 82 - (52[1]) - POWER DRIVE ATTACHMENT, 1000 RPM (31) - IMPLEMENT POWER TAKE OFF
8
6
7
1
4
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

1

155465C91

SHAFT ASSY, power drive

1шт.

2

155596C91

YOKE, tube and stud

1шт.

3

660116C91

KIT, center cross repair

1шт.

4

425962R1

RING, snap

4шт.

5

271284

YOKE

lub

1шт.

6

661671R91

JOINT

CUP, needle

4шт.

7

CROSS, center, order cross assy, 660116R91

1шт.

8

155595C1

YOKE

1шт.

Выбрано товаров: 0
