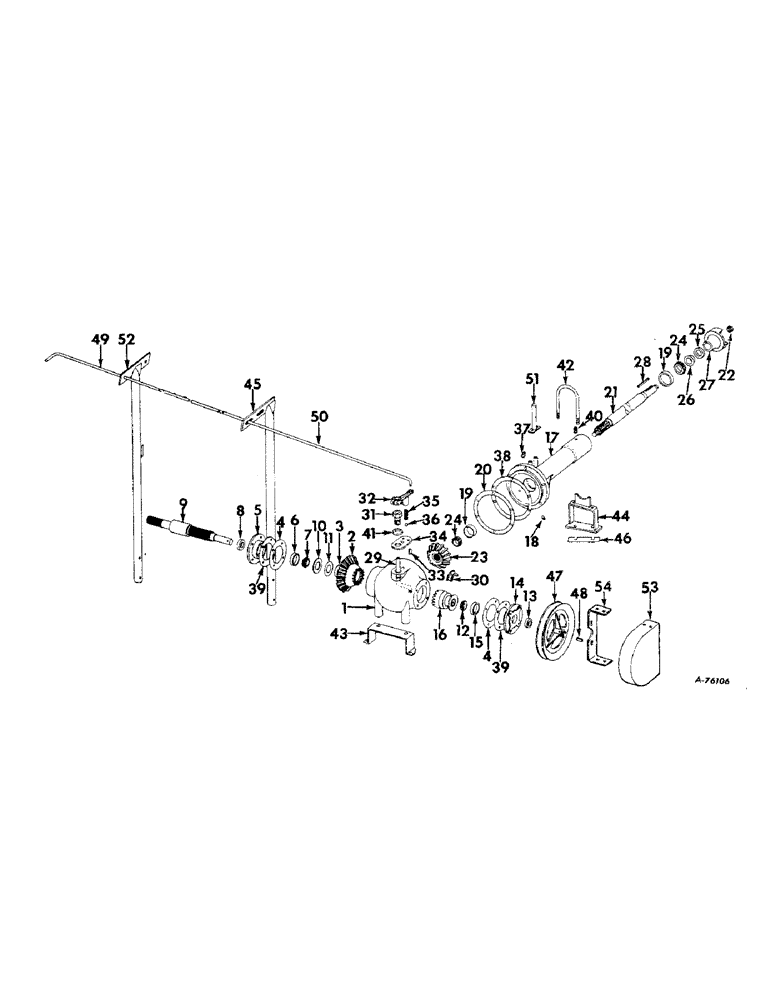

Запчасти Case IH 82 (53) - MAIN DRIVE GEAR CASE (14) - MAIN GEARBOX & DRIVE

585407R91

CASE ASSY, main drive gear, 540 rpm

1шт.

583278R91

CASE ASSY, main drive gear, 1000 rpm

1шт.

1

585500R1

CASE, main drive gear

1шт.

2

573252R11

GEAR ASSY, main drive, 540 rpm

1шт.

2

583280R11

GEAR ASSY, main drive, 1000 rpm

1шт.

3

573305R1

BUSHING, min drive gear

1шт.

4

585502R1

SHIM, front and rear brg cap, 10 or as required

1шт.

5

585501R11

CAP ASSY, gear case front brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Main drive shaft front

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, main drive shaft front

1шт.

8

584913R91

SEAL

ASSY, main drive shaft front brg oil

1шт.

9

629748R1

SHAFT, main drive gear

1шт.

10

584913R91

SEAL

WASHER, 1-21/32 x 2-1/2 x 16 ga

1шт.

11

573318R1

WASHER, 1-25/64 x 2-1/2 x 11 ga

1шт.

12

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE #L44649

1шт.

13

130612H

SEAL

main drive shaft rear brg oil

1шт.

14

573255R11

CAP ASSY, main drive shaft rear brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

572564R1

BEARING CUP

CUP, main drive shaft rear brg

1шт.

16

572524R1

ENGAGER, drive clutch

1шт.

17

573258R11

HOUSING ASSY, pinion shaft

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

103865

PLUG, 1/8 sq-hd pipe

1шт.

19

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Pinion shaft brg

2шт.

20

585503R1

SHIM, pinion shaft housing .010

6шт.

21

585408R2

SHAFT, pinion

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 nf slt-hex

1шт.

584253R1

WASHER

25/32 x 1-3/4 x 3/16

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

22

565249R1

NUT

3/4-16 hex. self lock

1шт.

23

573257R1

GEAR, pinion, 540 rpm

1шт.

23

583279R1

GEAR, pinion, 1000 rpm

1шт.

24

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, pinion shaft roller

2шт.

25

573259R91

SEAL

pinion shaft brg oil

1шт.

26

573260R1

SPACER, pinion shaft

1шт.

27

936686R1

COUPLING

cyl jackshaft drive

1шт.

28

581306R1

KEY,5/16" Sq x 1 1/4", Par

Cylinder jackshaft drive coupling 5/16" Sq x 1 1/4", Par

1шт.

29

573262R11

CRANK ASSY, shifting lever

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

3шт.

30

1864K

SHOE, gear shifting

1шт.

31

573261R1

BUSHING, shifting lever

1шт.

32

585410R1

LEVER, shifting

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

106751

KEY

3/16 x 3/4 woodruff

1шт.

34

585411R1

PLATE, shifter lever detent

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

35

567729R1

SPRING

shifting lever

1шт.

36

D2616

BALL

shifting lever detent

1шт.

37

2778F

PLUG

oil vent

1шт.

38

584251R1

GASKET, pinion housing

1шт.

39

584252R1

GASKET, gear case end cap

2шт.

40

103865

PLUG, 1/8 sq-hd gear case drain pipe

1шт.

41

583325R1

STOP, shifting lever bushing

1шт.

42

585403R1

BOLT, gear case u

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

43

584905R1

SUPPORT, gear case left

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach.

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach.

3шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

44

589629R91

SUPPORT ASSY, gear case right

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

45

154006C91

POST ASSY, control rod rear

1шт.

17548R1

BOLT, 3/8 x 2-1/4 hex-hd

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

634409R1

SHIM, gear case right support

1шт.

47

629749R1

PULLEY, unloader drive, 540 rpm

1шт.

47

2210K

PULLEY, unloader drive, 1000rpm

1шт.

48

Q3702

KEY, 1/4 x 1/4 x 1-5/8 sq taper Gib, 1/4" Sq x 1 5/8" Tap

1шт.

49

936699R11

HANDLE ASSY, gear case control

1шт.

102583

SET SCREW,Hex Skt, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 hex-soc-hd cup-pt set

2шт.

50

936700R1

ROD, gear case control

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

Q1505

WASHER

13/32 x 3/4 x 16 ga

1шт.

51

585378R91

PIVOT, bellcrank

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

615131R1

WASHER

21/32 x 1 x 22 ga

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

52

154008C91

POST ASSY, control rod front

1шт.

53

154851C91

SHIELD ASSY, unloader drive pulley

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

54

154854C1

CHANNEL, drive pulley shield

1шт.
