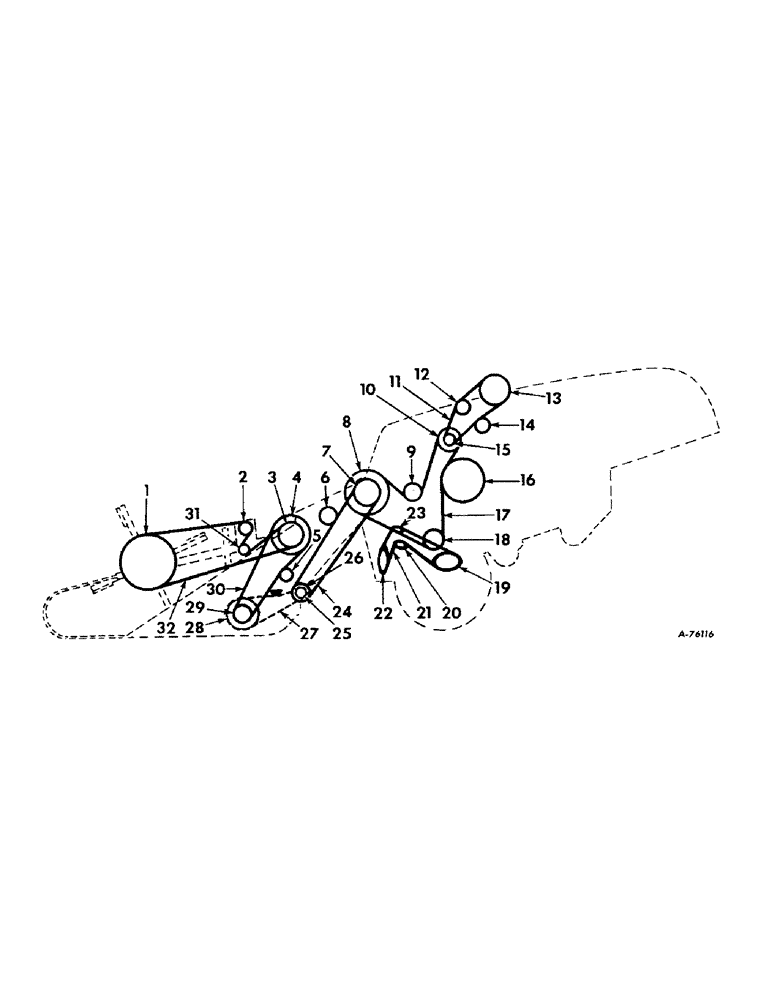

Запчасти Case IH 82 (09) - BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE OF MACHINE (05) - SERVICE & MAINTENANCE

1

554575R91

PULLEY, reel driven, see unit listed under reel, reel supports reel drive and reel guards

1шт.

2

559087R92

PULLEY

reel drive belt tightener, see unit listed under reel, reel supports reel drive and reel guards

1шт.

3

587768R91

PULLEY, reel drive, see unit listed under reel, reel supports, reel drive and reel guards

1шт.

4

564697R11

PULLEY, reel jackshaft driven, see unit listed under reel, reel supports, reel drive and reel guards

1шт.

5

585255R91

PULLEY

reel jackshaft drive belt tightener, see unit listed under reel, reel supports, reel drive and guards

1шт.

6

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

auger jackshaft drive belt tightener, see unit listed under

1шт.

7

587622R91

PULLEY, auger jackshaft drive, see unit listed under auger and auger drive

1шт.

8

564569R11

PULLEY ASSY.

PULLEY, feeder driven, see unit listed under auger and auger driven

1шт.

9

154742C91

PULLEY

fan feeder and shaker shaft drive belt tightener, see unit listed under fan, fan drive and lower shield attachment

1шт.

10

585234R1

PULLEY, fan feeder and shaker shaft drive, see unit listed under cylinder beater, drive, grate, concaves and stone retarder cover

1шт.

11

610521R1

V-BELT

Grain elevator and delivery auger drive, See unit listed under grain elevator, drive, auger, trough and special conveyor chain flight

1шт.

12

564696R11

PULLEY

grain elevator delivery auger driven, see unit listed under grain elevator, drive, auger trough and special conveyor chain flight

1шт.

13

584967R11

PULLEY

grain elevator driven, see unit listed under grain elevator, drive, auger, trough and special conveyor chain flight

1шт.

14

585255R91

PULLEY

grain elevator drive belt tightener, see unit listed under grain elevator, drive, auger trough and special conveyor chain flight

1шт.

15

585234R1

PULLEY, grain elevator and fan drive, see unit listed under fan, fan drive and lower shield attachment

1шт.

16

555545R91

PULLEY, shaker shaft driven, see unit listed under straw rack, straw rack risers and screens, return pan, shaker shaft and drive

1шт.

17

561133R1

BELT

fan, feeder and shaker shaft drive, see unit listed under fan, fan drive and lower shield attachment

1шт.

18

588821R1

PULLEY, fan driven, see unit listed under fan, fan drive and lower shield attachment

1шт.

587768R91

PULLEY, fan driven, see unit listed under fan, fan drive an lower shield attachment

1шт.

19

553605R91

PULLEY

unloader driven, see unit listed under unloader auger drive

1шт.

20

566517R91

PULLEY

unloader drive belt tightener, see unit listed under unloader auger drive

1шт.

21

13988K

V-BELT,115.23" L

Unloader Auger Drive, 540 RPM, See Unit Listed Under Unloader Auger Drive 115.23" L

1шт.

21

935721R1

V-BELT,0.63" W

Unloader auger drive, 1000 RPM, See unit listed under unloader auger drive 0.63" W

1шт.

22

585370R2

PULLEY, unloader auger drive, 540 RPM, see unit listed under unloader auger drive

1шт.

2210K

PULLEY, unloader auger drive, 1000 RPM, see unit listed under main drive gear case

1шт.

629749R1

PULLEY, unloader auger drive, 540 RPM, see unit listed under main drive gear case

1шт.

23

567872R91

PULLEY

unloaded drive belt idler, see unit listed under unloader auger drive

1шт.

24

581832R1

BELT

Auger jackshaft drive, See unit listed under auger and auger drive

1шт.

25

585201R1

SPROCKET, auger drive, 19T, see unit listed under auger and auger drive

1шт.

26

587768R91

PULLEY, auger jackshaft driven, see unit listed under auger and auger drive

1шт.

27

CHAIN, auger drive, use 46 links of 1 in. extended pitch roller chain from a 10 ft roll marked 569088r91, two connecting links 457113R91 and 1 offsetconnecting link 457114R91, see unit listed under auger and auger drive

1шт.

28

610504R1

SPROCKET, auger drive, 24T, see unit listed under reel, reel supports, reel drive and reel guards

1шт.

29

610504R1

PULLEY, reel jackshaft drive, see unit listed under auger and auger drive

1шт.

30

24510K

BELT

reel jackshaft drive, see unit listed under reel, reel supports, reel drive and reel guards

1шт.

31

585255R91

PULLEY

reel drive belt idler, see unit listed under reel, reel supports, reel drive and reel guards

1шт.

32

580026R1

V-BELT

Reel drive, See unit listed under reel, reel supports, reel reel drive and reel guards

1шт.
