(040[1]) - HEADER BRACES

Запчасти Case IH 460 (040[1]) - HEADER BRACES (90) - PLATFORM, CAB, BODYWORK AND DECALS

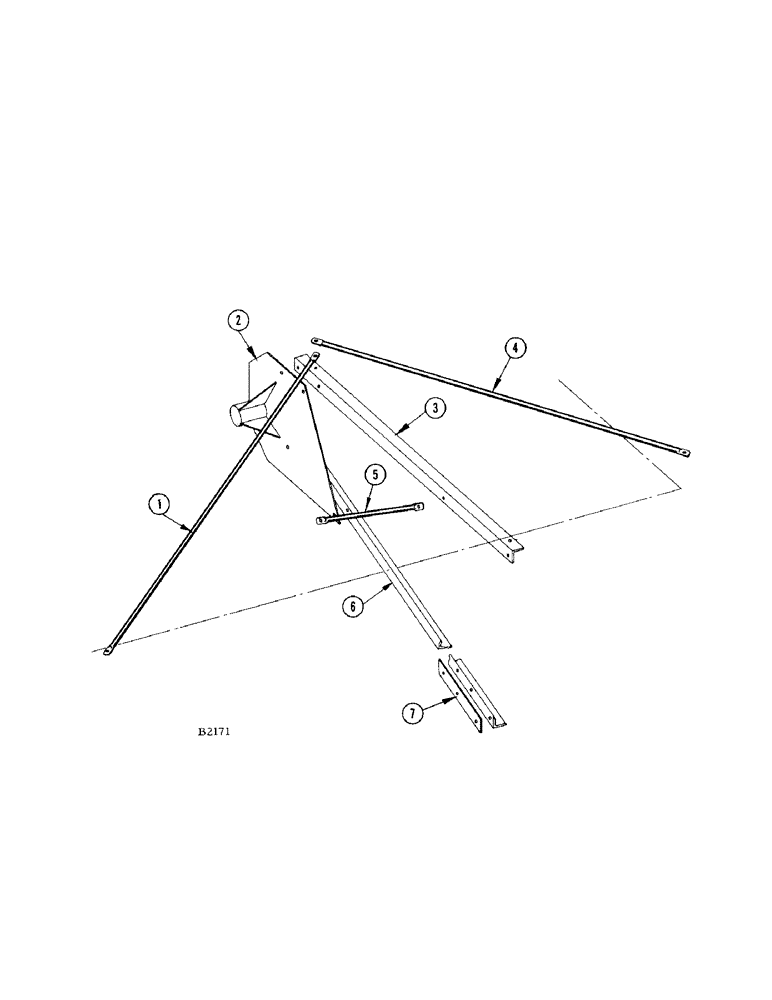

Схема запчастей Case IH 460 - (040[1]) - HEADER BRACES (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
7
6
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F83669

BRACE - outer (10 ft. header)

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.; nut (25-118) L.W. (92-8), header braces

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6), header braces

1шт.

F89188

BRACE - outer (12 ft. header) (Replaces F85838 when exh.), header

1шт.

F85838

BRACE - outer (12 ft. header) (Replaced by F89188 when exh.)

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.; nut (25-118) L.W. (92-8), header braces

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6), header braces

1шт.

2

F83666

PLATE - R.H. pivot, header braces

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5), header braces Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), , header braces 3/16" x 3"

1шт.

3

F20617

ANGLE - upper R.H., reinforcement pivot, header braces

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5), header braces Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5), Header braces Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5), header braces

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.; nut (25-118) L.W. (92-8), header braces

1шт.

4

F83665

BRACE - inner, header

1шт.

5

F83668

BRACE - truss, 3rd pivot point, header

1шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5), Header braces Hex, 5/16"-24 x 1 1/4", G5

1шт.

6

F20607

ANGLE - R.H., lower reinforcing, header braces

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5), Header braces Hex, 5/16"-24 x 7/8", G5, Full Thd

3шт.

7

F20608

SHIM - R.H., lower reinforcement pivot, header braces

1шт.
