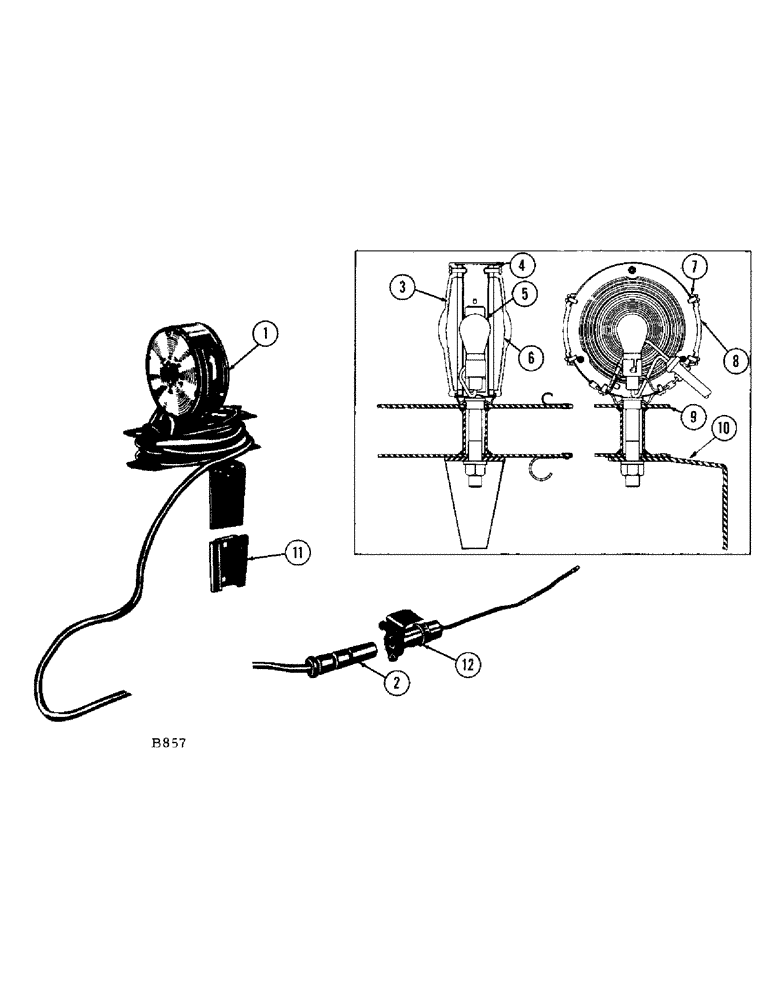

Запчасти Case IH 460 (118) - WARNING LAMP ATTACHMENT, DECAL KIT (88) - ACCESSORIES

A11066M

LAMP - warning (Complete)

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - warning (Order A11066M)

1шт.

2

B50259

PLUG

- lamp

1шт.

3

B50337

LENS

- amber

1шт.

169-61

SCREW - #6-32 x 1/2" rhd. slotted

3шт.

4

B50317

GASKET - lens

2шт.

5

33865

BULB - lamp (6 volt)

1шт.

33686

BULB

- lamp (12 volt)

1шт.

6

B53962

LENS

- red

1шт.

169-61

SCREW - #6-32 x 1/2" rhd. slotted

3шт.

7

B50329

GASKET - outlook lens

2шт.

8

B50328

LENS - outlook

2шт.

182-161

SCREW - #6-20 x 5/16" pan hd.

4шт.

9

B50330

SPOOL

1шт.

10

B50331

BRACKET - mounting

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. L.W. (92-7)

1шт.

11

A8179

SOCKET

BRACKET

2шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, L.W. (192-20) and nut (129-102)

4шт.

12

A8170

SOCKET

- outlet

1шт.

173-240

SCREW - #10-32 x 3/4" rhd. N.C. mach.; and nut (129-37) L.W. (192-18)

2шт.

A27213

CONNECTOR - (Not shown)

1шт.

A27039

CLIP - (Not shown)

4шт.

A27033

CLIP - wire (Not shown)

1шт.

F8875

WIRE - (Not shown)

1шт.

B17122

DECAL KIT - For "460" combine

1шт.

321-17

DECAL

PATENTS - (L.H. rear side sheet), decal kit

1шт.

321-265

X

NAME AND ADDRESS - (Tool box), decal kit

1шт.

321-584

DECAL

TAILINGS CHECK - (Tailings inspection door), decal kit

1шт.

321-588

DECAL

CYLINDER SPEED - (R.H. front side sheet), decal kit

1шт.

321-589

DECAL

CONCAVE SETTING - (R.H. front side sheet), decal kit

1шт.

321-808

DECAL

EAGLE - (Rear hood), decal kit

2шт.

321-902

"CASE" - (Rear hood), decal kit

1шт.

321-914

"CASE" - (Front of grain bin), decal kit

1шт.

321-939

"460" - (Tailings discharge housing), decal kit

1шт.

321-610

DECAL

BE CAREFUL - (Top of tailings elevator), decal kit

1шт.
