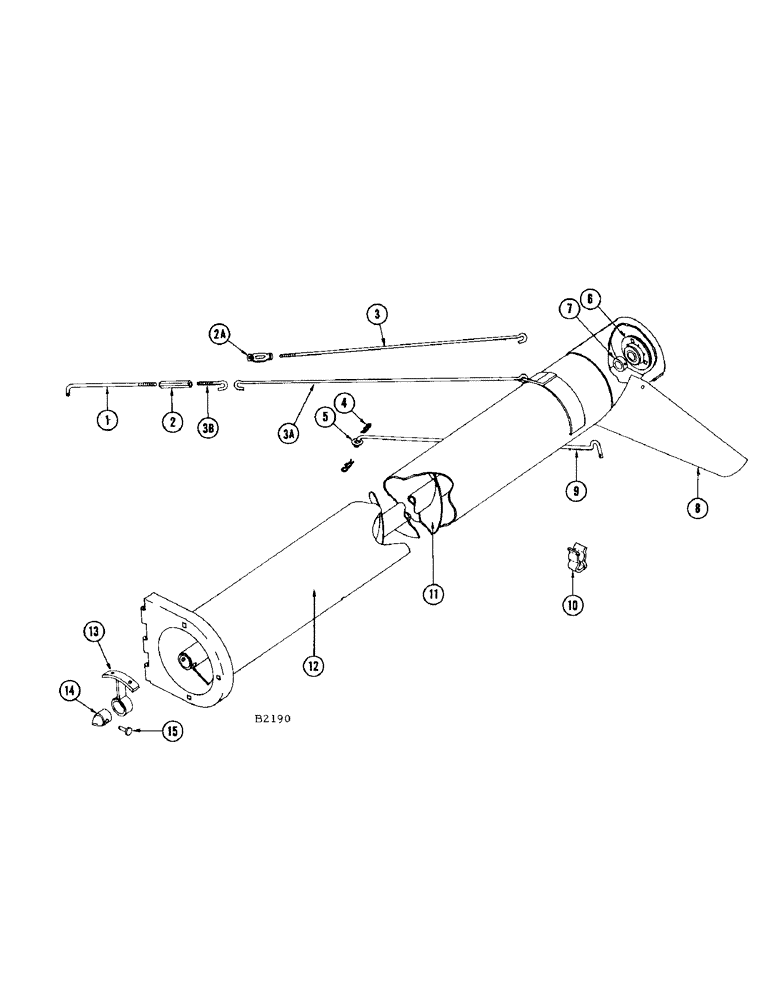

Запчасти Case IH 460 (080) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

1

F41324

ROD - hook

1шт.

195-525

WASHER,3/8", SAE

- 3/8" flat

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

2

F22267

TURNBUCKLE

- (Replaces F1461 when stocks exhausted)

1шт.

2a

F1461

TURNBUCKLE

- (Replaced by F22267 when stocks exhausted)

1шт.

3

F17087

BRACE - (Replaced by F22396 and F22397 when stocks are exhausted)

1шт.

3a

F22397

BRACE - auger (Replaces F17087 when stocks exhausted)

1шт.

3b

F22396

HOOK - brace (Replaces F17087 when stocks exhausted)

1шт.

4

TB10698

COTTER - hair pin

2шт.

5

195-37

WASHER,9/16"

- flat 9/16"

1шт.

6

F78749

COLLAR

BEARING

1шт.

7

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

8

F40654

SPOUT - auger

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; dbl. nut (25-116)

2шт.

9

F41242

ROD - support (Transport)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

10

F21245

CLIP - support rod

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

1шт.

11

F85579

AUGER - (Before #8361801)

1шт.

F94232

AUGER - (#8361801 and after)

1шт.

12

F85828

TUBE - auger

1шт.

13

F82312

BEARING - center

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14

F22752

PLOW BOLT

PIN - discharge auger

1шт.

15

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.
