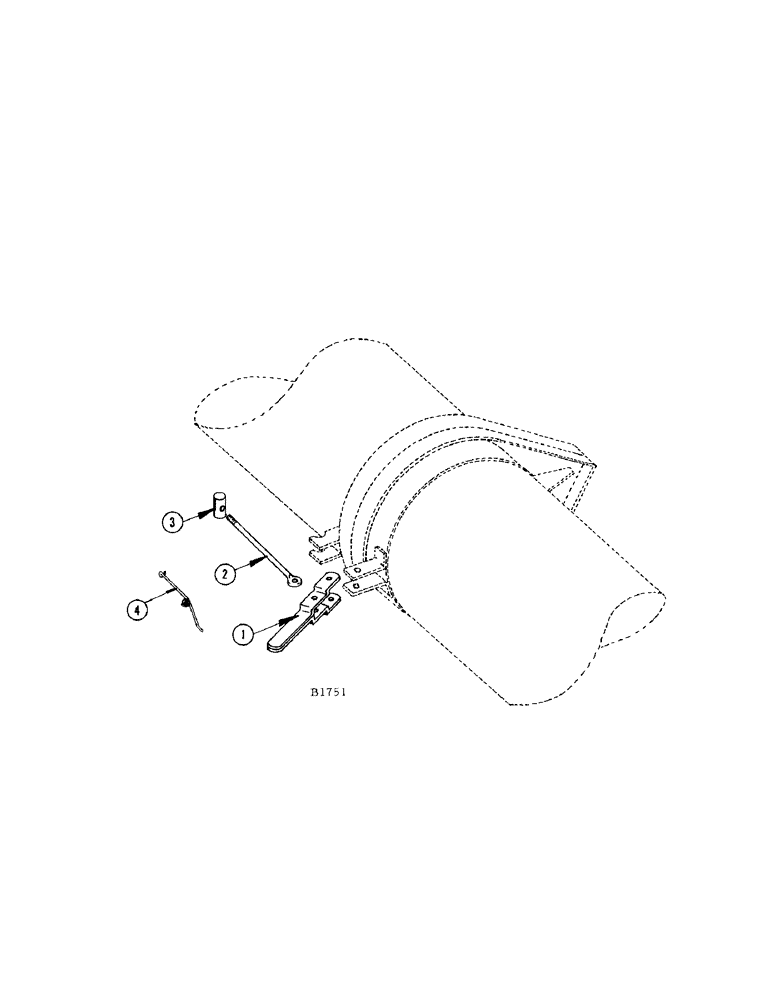

Запчасти Case IH 460 (080[1]) - GRAIN BIN DISCHARGE AUGER LATCH (80) - CROP STORAGE/UNLOADING

1

F79141

HANDLE, grain bin discharge auger latch

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.; Flexloc nut (131-506), grain bin discharge auger latch

4шт.

2

F11524

ROD, grain bin discharge auger latch

2шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex.; dbl. nut (129-123) and L.W. (192-21), grain bin discharge auger latch

2шт.

3

F11525

BLOCK, grain bin discharge auger latch

2шт.

4

F41376

CLIP - spring (Use with lower handle), grain bin discharge auger latch

1шт.
