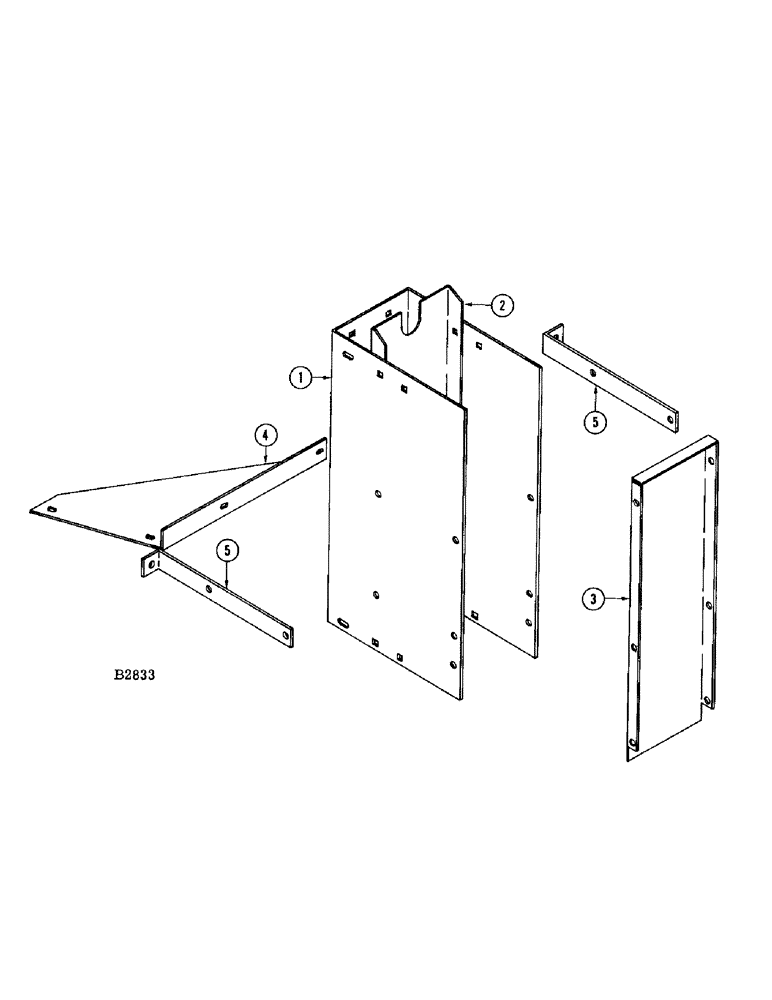

Запчасти Case IH 460 (079A[1]) - GRAIN ELEVATOR EXTENSION (80) - CROP STORAGE/UNLOADING

1

F41857

WRAPPER - elevator extension, grain

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.; nut (25-104) L.W. (92-4), grain elevator extension

8шт.

14-46

BOLT - 1/4" x 3/8" N.F. hex.; nut (25-114) L.W. (92-4), grain elevator extension

2шт.

2

F41858

DIVIDER - elevator extension, grain

1шт.

14-46

BOLT - 1/4" x 3/8" N.F. hex.; nut (25-114) L.W. (92-4), grain

2шт.

3

F41859

BOTTOM - elevator extension, grain

1шт.

14-46

BOLT - 1/4" x 3/8" N.F. hex.; nut (25-114) L.W. (92-4), grain elevator extension

2шт.

4

F41860

SUPPORT, grain elevator extension

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5), Grain elevator extension Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

5

F41861

STRAP - support, grain elevator extension

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4), Grain elevator extension Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.
