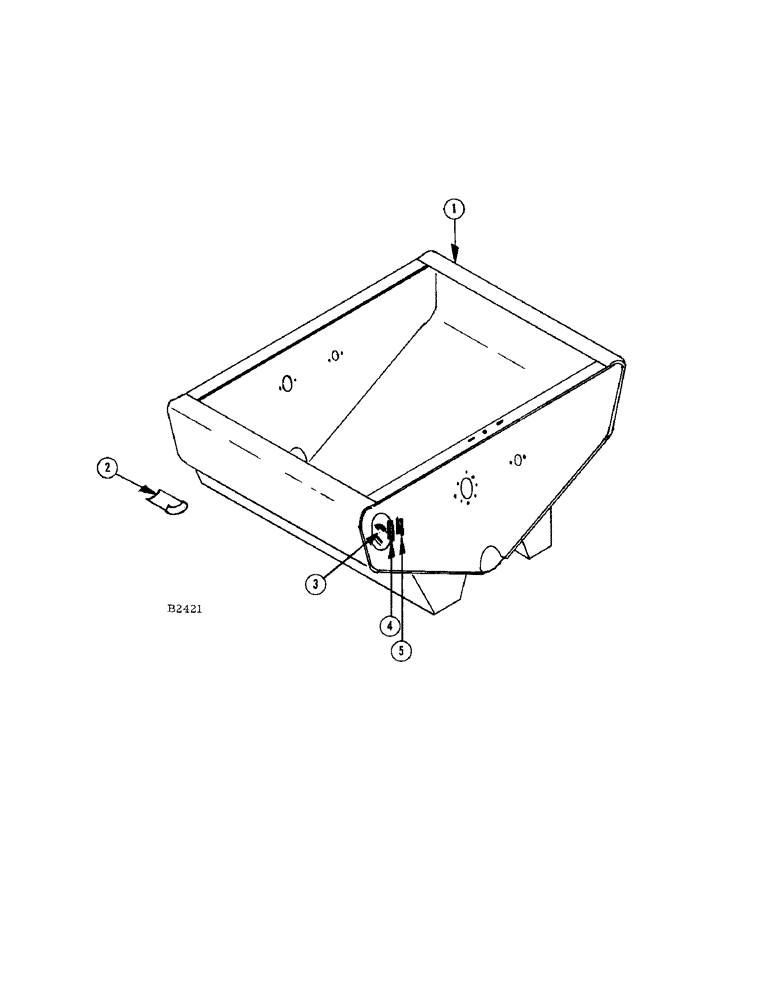

Запчасти Case IH 460 (078) - GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F85787

BIN - grain

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4) and wshr. (95-4)

6шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

4шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex.; nut (25-116) L.W. (92-6)

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-714

SCREW,Hex, 7/16" - 20 x 7/8", Gr 5

BOLT - 7/16" x 7/8" N.F. hex.; nut (25-117) L.W. (92-7)

8шт.

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. truss hd.; nut 924-104) and L.W. (92-4)

24шт.

2

F9188

DOOR

- clean out

1шт.

3

F41321

WINDOW

1шт.

4

F41322

MOLDING - window (28.5")

1шт.

5

F41323

STRIP - locking, grain bin window (28.5")

1шт.
