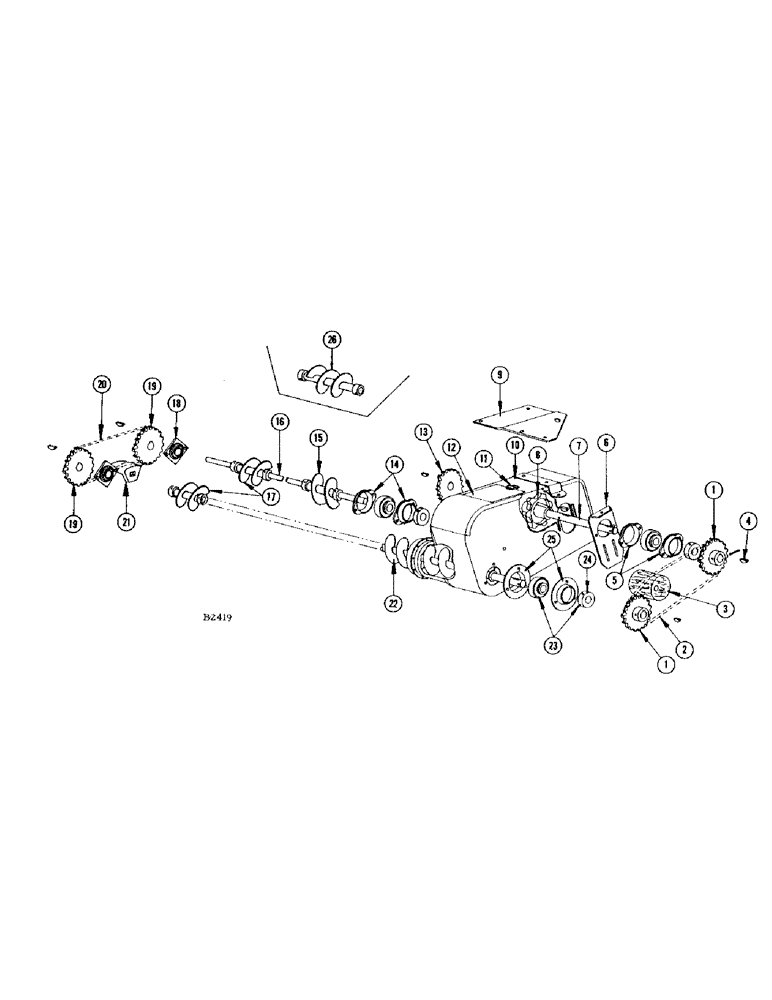

Запчасти Case IH 460 (076) - GRAIN BIN DISTRIBUTION AUGERS (80) - CROP STORAGE/UNLOADING

1

F76981

SPROCKET - (22T) distribution auger drive

2шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

2

F51206

ROLLER

CHAIN - distribution auger drive (See chain page)

1шт.

3

F4718

BLOCK - idler

1шт.

11-660

BOLT - 3/8" x 3-3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6) and wshr. (95-6)

1шт.

4

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Elevator and auger shafts #A, 1/4" x 7/8"

6шт.

5

F9417

FLANGE

TTE - upper elevator shaft bearings

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk.; nut (25-105) L.W. (92-5)

4шт.

6

F17592

HOLDER - bearing

2шт.

114-112

BOLT - 5/16" x 2-1/2" N.F. hex.; dbl. nut (25-115)

2шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4) and wshr. (95-5)

4шт.

7

F41258

SHAFT - upper, elevator

1шт.

8

51B

SPROCKET ASSY.

SPROCKET - upper elevator

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

9

F41262

BRACE - upper head

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

10

F85798

HEAD - upper

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (24-114) L.W. (92-4)

7шт.

11

F86525

CLIP

- upper head door

1шт.

151-123

RIVET - 3/16" x 8/16" steel split

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4)

7шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.; nut (25-104) L.W. (92-4)

4шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut (25-104) L.W. (92-4) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

WASHER - 5/16" flat

6шт.

12

F20546

DOOR - upper head

1шт.

13

F85804

SPROCKET - (30T) grain elevator drive (Before #8361801)

1шт.

F89215

SPROCKET - grain elevator drive (#8361801 and after)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

14

F9417

FLANGE

TTE - auger shaft (L.H. grain bin head)

2шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk.; nut (25-105) L.W. (92-5)

2шт.

15

F87033

AUGER - sliding distribution, rear L.H.

1шт.

85-510

SCREW - 5/16" x 5/8" N.C. sq. hd. set; and jam nut (24-145)

2шт.

16

F41234

SHAFT - rear distribution augers

1шт.

17

F85790

AUGER - sliding distribution, R.H.

2шт.

85-510

SCREW - 5/16" x 5/8" N.C. sq. hd. set; and jam nut (25-145)

4шт.

18

F7902

BALL BEARING

BEARING - R.H. auger shafts

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-4) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

19

F85791

SPROCKET ASSY.

SPROCKET - (24T) rear distribution auger drive (Before #8361801)

2шт.

F89212

SPROCKET ASSY.

SPROCKET - rear dist. auger drive (#8361801 and after)

2шт.

85-410

SET SCREW,Sq Hd, 1/4"-20 x 5/8"

SCREW - 1/4" x 5/8" N.C. sq. hd. set; nut (25-104)

2шт.

20

F41263

CHAIN - drive, rear distribution augers (See chain page) (Before #8361801)

1шт.

F41864

CHAIN - drive, rear dist. auger (See chain page) (#8361801 and after)

1шт.

21

F2159

IDLER - chain tightener

1шт.

12-820

BOLT - 1/2" x 1-1/4" rhd. sq. nk.; nut (25-108) L.W. (92-8)

1шт.

95-10

WASHER,5/8"

- 5/8"

2шт.

22

F85799

AUGER - 5/16" x 5/8" N.C. sq. hd. set; jam nut (25-145)

2шт.

23

F94134

HOUSING ASSY.

BEARING - L.H.

4шт.

24

F52076

COLLAR

- bearing

1шт.

25

B18282

FLANGE

TTE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

26

F89213

AUGER - distribution, adjustable

1шт.
