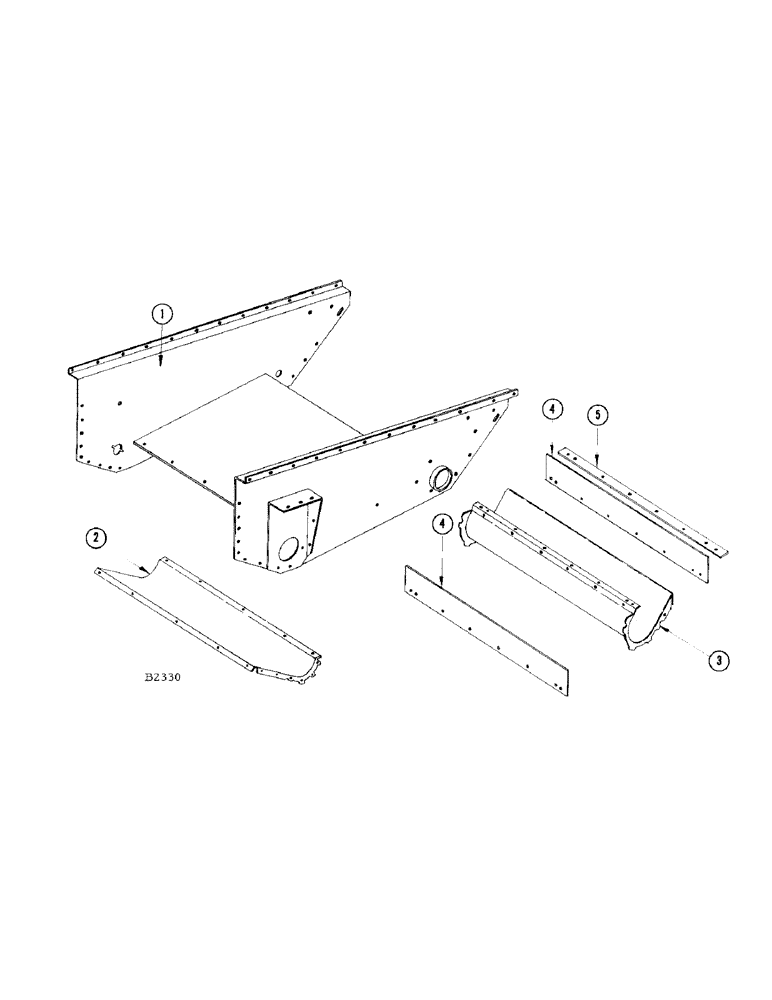

Запчасти Case IH 460 (070) - GRAIN AND TAILINGS AUGER TROUGH (80) - CROP STORAGE/UNLOADING

1

F85774

EXTENSION - side sheet

1шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex.; nut (25-116) L.W. (92-6)

4шт.

14-444

BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5

- 1/4" x 2-3/4" N.F. hex.; nut (25-114) L.W. (92-4)

2шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4)

33шт.

2

F16058

TROUGH - grain auger

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

19шт.

195-18

WASHER,1/4"

- 1/4"

7шт.

3

F21455

TROUGH - tailings auger

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

8шт.

4

F21446

SEAL - tailings auger trough

2шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.; nut (25-114) L.W. (92-4)

7шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Speed nut (131-107) Hex, 1/4"-20 x 1/2", G5, Full Thd

9шт.

5

F21447

STRIP - bolting

1шт.
