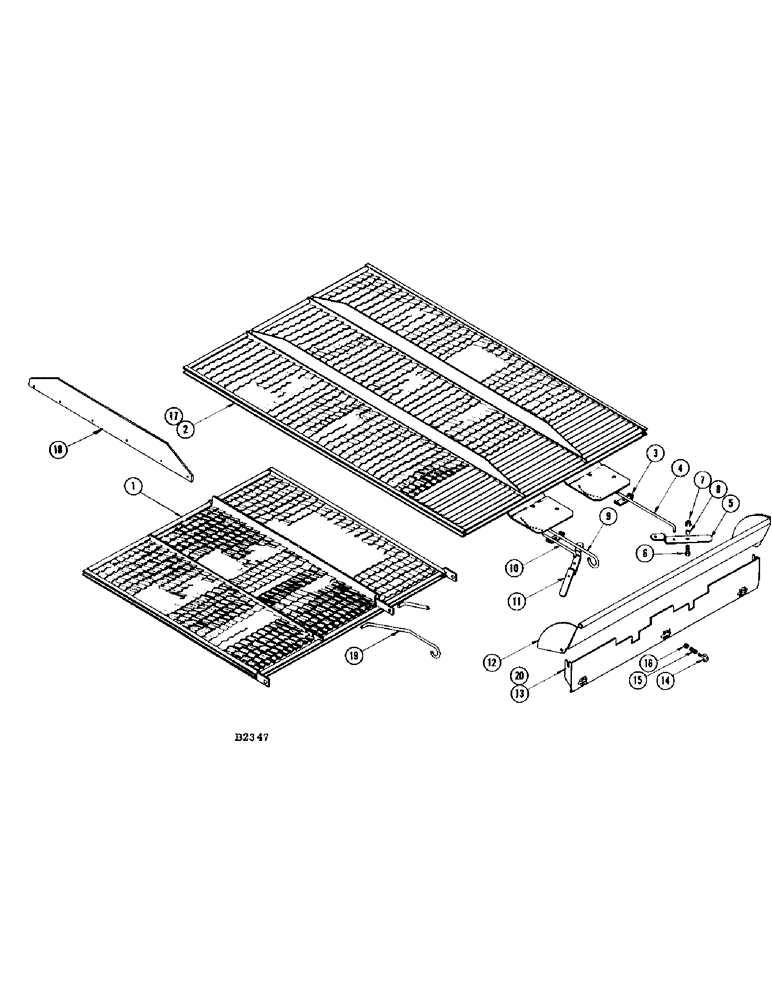

Запчасти Case IH 460 (068) - CHAFFER AND CLEANING SIEVES, "CLOSZ" CHAFFER SIEVE ATTACHMENT (74) - CLEANING

1

F84413

CLEANER

SIEVE - cleaning, less adjustments

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. (92-5) Fl. Wshr (195-21) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

2

F84416

CLEANER

SIEVE - chaffer, less adjustments

1шт.

3

F8107

CLAMP - adjustment rods

2шт.

117-107

BOLT

BOLT - 5/16" x 1-1/2" N.C. sq. hd.; locknut (131-4) and fl. wshr. (195-521)

2шт.

4

F21645

ROD - cleaning sieve adjustment

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

5

F21657

LEVER

- cleaning sieve adjustment

1шт.

6

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

7

131-3

LOCK NUT,5/16"-24, GB

- 5/16" N.F. hex

1шт.

8

F62196

SPACER,1/4" Pipe x 7/16"

1шт.

9

O464CS

ROD - chaffer sieve extension adjustment

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

10

F21656

ROD - chaffer sieve adjustment

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

F21658

LEVER - chaffer sieve adjustment

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Lock nut (131-3) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

12

F84418

GATE - tail

1шт.

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk.; Flexloc nut (131-591) and fl. wshr. (195-525)

2шт.

13

F21672

BOARD - tail

1шт.

14

F19960

LATCH

BOLT - tail board latching (Replaces F21477 when exhausted)

3шт.

F21477

BOLT (SPREADER)

BOLT - tail board latching (Replaced by F19960 when exhausted)

3шт.

15

117EB

SPRING

- latching bolt

3шт.

16

131-516

LOCK NUT - 1/4" N.C. hex

3шт.

17

F84598

"closz" chaffer sieve attachment

1шт.

18

F22593

RISER - divider, "closz" chaffer sieve attachment

3шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex.; nut (129-121) L.W. (192-19), "closz" chaffer sieve attachment

18шт.

19

F22594

ROD - adjusting, "closz" chaffer sieve attachment

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , "closz" chaffer sieve attachment 3/32" x 5/8"

1шт.

20

F21898

BOLT

TAILBOARD - shoe, "closz" chaffer sieve attachment

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

and locknut (131-149), fixed hole finishing sieves Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

195-521

WASHER,5/16", SAE

- 5/16" flat, fixed hole finishing sieves

4шт.

F81071

SIEVE - Flax (3/16" dia. rd. hole), fixed finishing

1шт.

F81072

SIEVE - Rice and Corn (5/8" dia. rd. hole), fixed hole finishing

1шт.

F81073

SIEVE - Fenugreek, Flax Millet, and Lespedeza (5/32" dia. rd. hole), fixed hole finishing

1шт.

F81074

SIEVE - Sugar Beets, Buckwheat, Grain and Sorghum (9/32" dia. rd. hole), fixed

1шт.

F81075

SIEVE - Buckwheat, Crotolaria, Wheat, Rye, Vetch, and Fenugreek (1/8" x 3/4" slotted hole), fixed hole finishing

1шт.

F81076

SIEVE - (9/64" triangular hole), fixed finishing

1шт.

F81077

SIEVE - Grasses and Timothy (5-64" dia. rd. hole),, fixed finishing

1шт.

F81078

SIEVE - Alfalfa, Clover, Grasses, and Mustard (3/32" dia. rd. hole), fixed finishing

1шт.

F81079

SIEVE - Clover, Grasses, Mustard (1/8" dia. rd. hole), fixed finishing

1шт.

F81080

SIEVE - Buckwheat (7/32" dia. rd. hole), fixed finishing

1шт.

F81081

SIEVE - Corn, Beans, Peas, and Spelt (3/8" dia. rd. hole), fixed finishing

1шт.

F81082

SIEVE - Rice, Peas, and Beans (1/2" dia. rd. hole), , fixed finishing

1шт.
