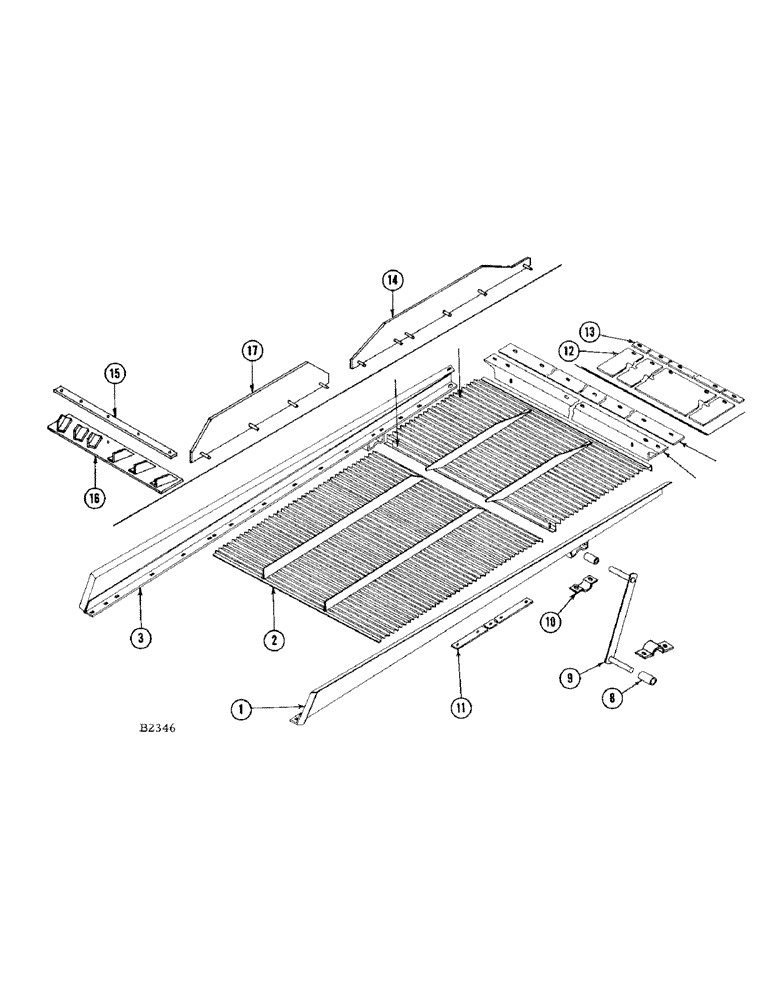

Запчасти Case IH 460 (066[1]) - GRAIN PAN (74) - CLEANING

1

F84320

ANGLE - shoe frame, R.H., grain pan

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-105) L.W. (92-6), grain pan Short NK, 3/8"-16 x 1", G2

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5), Grain pan Short NK, 5/16"-18 x 3/4", G2

3шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Wshr. (195-18) L.W. (92-4), grain pan Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

2

F84321

FLOOR - grain pan, rear

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5), Grain pan Short NK, 5/16"-18 x 3/4", G2

8шт.

175-95

SCREW - #10-24 x 3/4" truss hd., grain pan

7шт.

131-121

SPRING NUT,Tinn, U, #10-24

Grain pan Tinn, U, #10-24

7шт.

3

F84325

ANGLE - shoe frame, L.H., grain pan

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6), grain pan Short NK, 3/8"-16 x 1", G2

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5), Grain pan Short NK, 5/16"-18 x 3/4", G2

3шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Wshr. (195-18) L.W. (92-4), grain pan Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

4

F84324

FLOOR - grain pan, front

1шт.

5

F21478

SEAL

- center, grain pan

1шт.

6

F21486

STRIP - bolting, front seal, grain pan

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4), grain pan

7шт.

195-18

WASHER,1/4"

- , grain pan 1/4"

2шт.

7

F21484

CHANNEL - front, grain pan

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5), Grain pan Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rhd. nut (129-7) L.W. (92-3), grain pan

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4), Grain pan Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

8

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, grain pan

4шт.

9

F22686

ARM

- grain pan swinger (Replaces F84779 when exhausted), grain pan

2шт.

F85779

ARM

- grain pan swinger (Replaced by F22686 when exhausted), grain pan

2шт.

10

O770BF

STRAP

CLAMP - strap, grain pan

4шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5), Grain pan Hex, 5/16"-24 x 1 1/4", G5

8шт.

11

F21476

STRIP - bolting, grain pan

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5), Grain pan tine shield attachment Short NK, 5/16"-18 x 3/4", G2

10шт.

12

F84137M

COVER - tine, grain pan shield attachment

1шт.

13

F18347

STRIP - bolting, grain pan tine shield attachment

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Tinnerman nut (131-129), Grain pan tine shield attachment Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

14

F94007

RISER - diver, grain pan, medium slope attachment

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Medium slope attachment

12шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and 1/4" L.W. (192-19), medium slope attachment

12шт.

15

F18347

BOLTING STRIP - grain deflector, medium slope attachment

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Tinnerman speed nut (131-129), medium slope attachment Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

16

F94009

DEFLECTOR - grain, medium slope attachment

1шт.

17

F94008

RISER - divider, chaffer sieve, medium slope attachment

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Medium slope attachment

8шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and L.W. (192-19), medium slope attachment

8шт.
