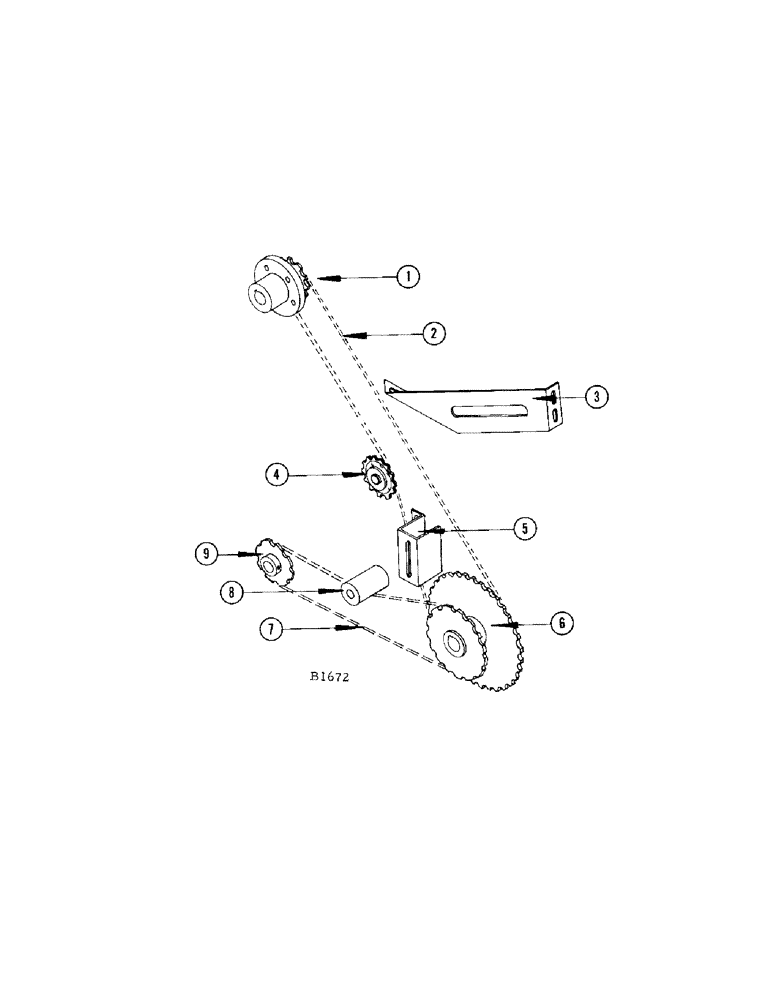

Запчасти Case IH 460 (058) - CRANKSHAFT DRIVE CHAIN, FAN JACKSHAFT DRIVE (74) - CLEANING

1

F83088

HUB AND SPROCKET - (16T) on beater shaft

1шт.

2

F16228

X

CHAIN - crankshaft drive (See chain page)

1шт.

3

F18516

BRACKET - idler support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

195-21

WASHER,5/16"

FLATWASHER - 5/16"

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16"

2шт.

4

F6078

SPROCKET ASSY.

SPROCKET - idler (17T)

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.; nut (25-1110) L.W. (92-10)

1шт.

95-10

WASHER,5/8"

- flat 5/8"

3шт.

5

F20325

BRACKET - jackshaft idler, fan drive

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5), Fan jackshaft drive Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

6

F81348

SPROCKET - (45T and 17T) on crankshaft, fan drive

1шт.

7

F16079

X

CHAIN - fan jackshaft drive (See chain page)

1шт.

8

3162-1/2HT

BLOCK - tightener, fan jackshaft drive

1шт.

11-548

BOLT - 5/16" x 3" rhd. sq. nk.; wshr. (195-21), fan jackshaft drive

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5), fan jackshaft drive

1шт.

9

F80859

HUB AND SPROCKET - fan jackshaft drive

1шт.
