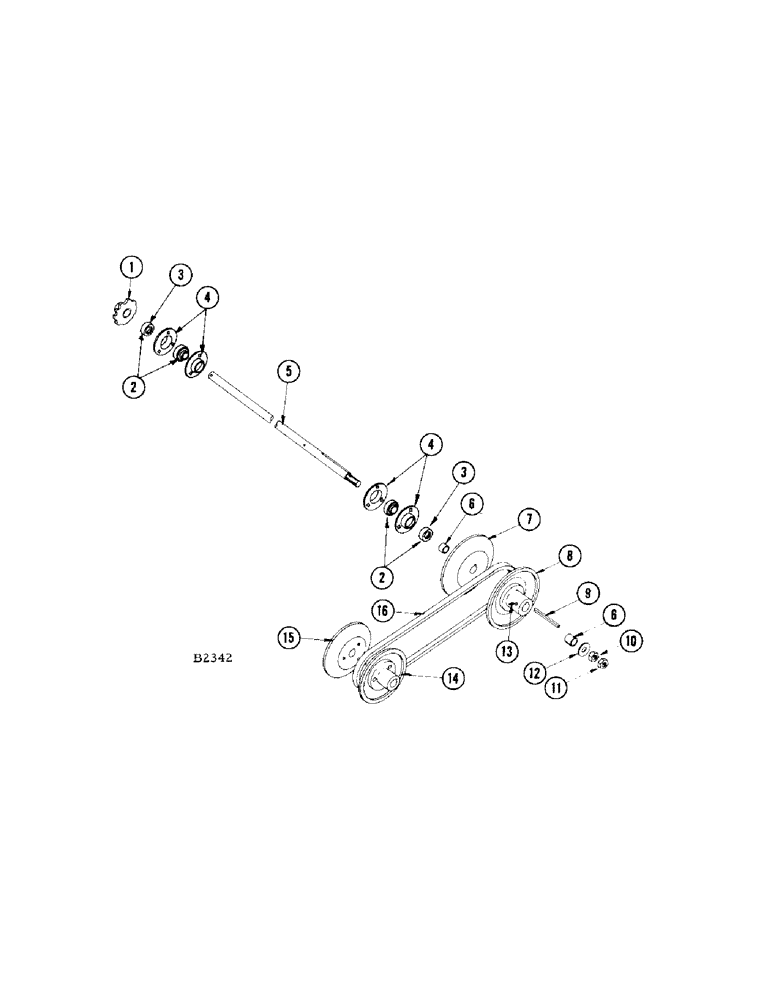

Запчасти Case IH 460 (058[1]) - FAN DRIVE (74) - CLEANING

1

F80859

SPROCKET - (11T) jackshaft drive, fan

1шт.

135-368

PIN, GROOVED

PIN - 5/16" x 1-3/4" Drive-loc, fan

1шт.

2

F94133

HOUSING ASSY.

BEARING - R.H., fan drive

2шт.

3

F10138

COLLAR

fan drive

1шт.

4

B18282

FLANGE

TTE, fan drive

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5), Fan drive Short NK, 5/16"-18 x 3/4", G2

4шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5), Fan drive Short NK, 5/16"-18 x 1", G2

2шт.

5

F21435

JACKSHAFT

fan drive

1шт.

O906B

WASHER

- fan jackshaft, fan drive

2шт.

6

B18238

SPACER - (1-5/16" O.D. x 1"), fan drive

2шт.

7

F1697

SHEAVE - half, inner, drive, fan

1шт.

8

F1696

SHEAVE - half, outer, drive, fan

1шт.

9

F41422

KEY - square, fan drive

1шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex, fan drive

1шт.

11

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex jam, fan drive

1шт.

12

A15783

SPACER

WASHER - (1-1/4" I.D. x 25/32" I.D. x 3/16" long), fan drive

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str., grease, fan drive

1шт.

14

F1699

SHEAVE HALF - outer, driven, fan

1шт.

15

F1700

SHEAVE HALF - inner, driven, fan

1шт.

16

F16080

V-BELT

Fan Drive

1шт.

F16079

X

CHAIN - fan jackshaft drive (See chain page)

1шт.
