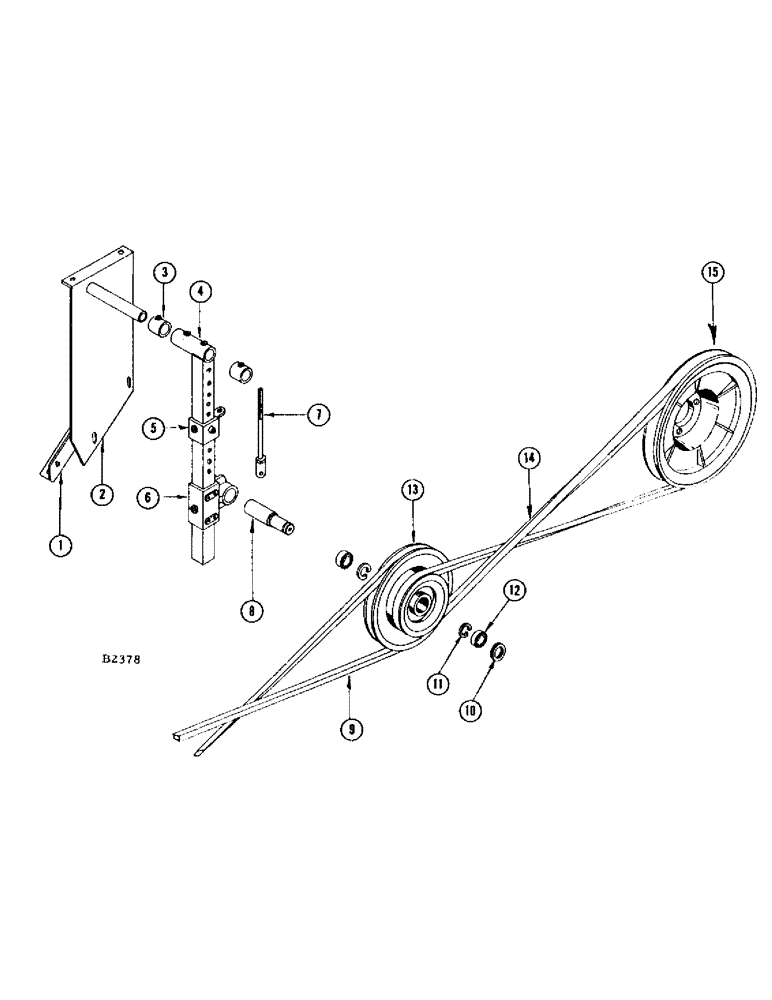

Запчасти Case IH 460 (098) - STRAWCHOPPER DRIVE (73) - RESIDUE HANDLING

1

F21899

ANGLE - attaching

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) and fl. wshr. (195-21) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut (129-102) L.W. (192-20) and fl. wshr. (195-521) Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

2

F84604

BRACKET - hanger

1шт.

3

F1601

COLLAR

2шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

2шт.

4

F82884

HANGER

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Jam nut (25-146) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

5

F1602

BRACKET - jackshaft

1шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/4" N.C. sq. hd. set; and jam nut (25-146)

1шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.C. hex

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5) and wshr. (195-521)

1шт.

6

F1600

STOP

1шт.

85-608

SCREW - 3/8" x 1/2" N.C. sq. hd. set

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

L.W. (92-6) Hex, 3/8"-16 x 2 1/4", G5

1шт.

7

F82878

SCREW - adjusting

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam 3/8" N.C.

2шт.

8

F19543

JACKSHAFT

1шт.

9

F19550

V-BELT

BELT - rear

1шт.

10

F19544

RING - retaining

1шт.

11

A27150

RING

- snap

2шт.

12

F19545

BEARING, BALL

BEARING

2шт.

13

F1603

PULLEY - (Step) intermediate idler

1шт.

14

F19549

V-BELT,153.00" L

Front 153.00" L

1шт.

15

F1693

SHEAVE - drive

1шт.

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

BOLT - 3/8" x 2-1/4" N.F. hex.; nut (25-116) L.W. (92-6)

3шт.
