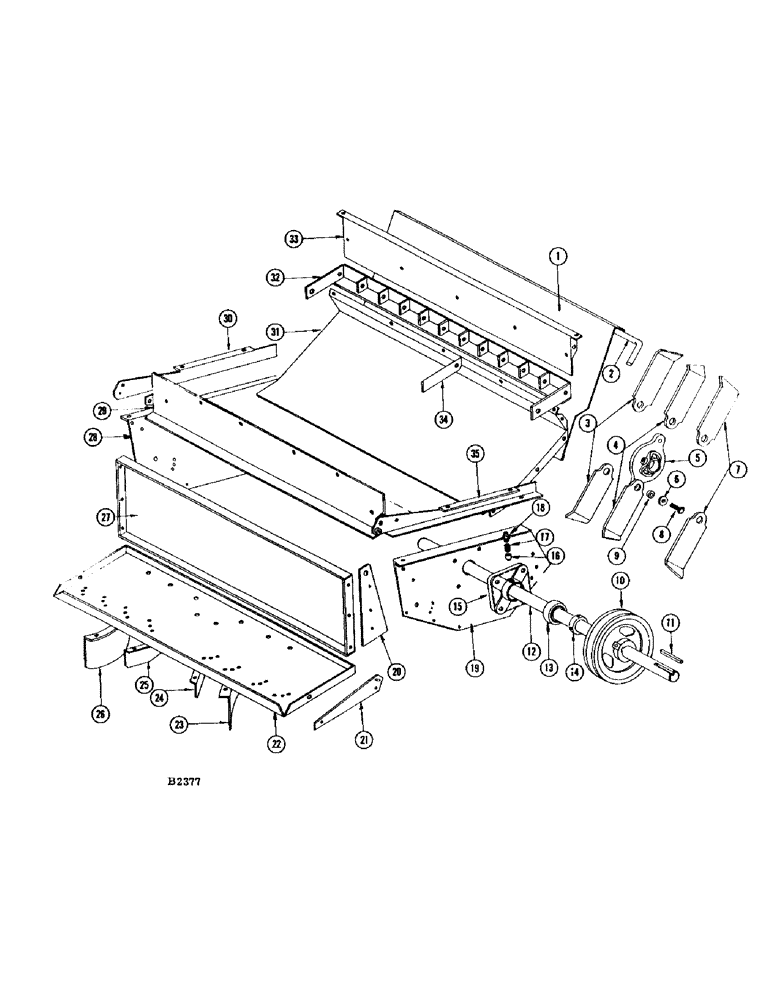

Запчасти Case IH 460 (096) - STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F84608

SLIDE

STRAWSLIDE

1шт.

2

F19548

ROD - strawslide

1шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

2шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

3

F82876

HAMMERS - L.H. pair

1шт.

4

F82874

HAMMERS - L.H. and R.H. pair

9шт.

5

F1599

HOLDER - hammer

11шт.

86-612

SCREW - 3/8" x 3/4" N.F. sq. hd. set; and jam nut (25-156)

22шт.

6

F19530

WASHER - (1-1/8" O.D. x 25/64" I.D. x 3/16" thick)

22шт.

7

F82875

HAMMERS - R.H. pair

1шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex

22шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F.; L.W. (92-6)

22шт.

9

F19529

BUSHING - (3/4" O.D. x 3/8" I.D. x 1/4" long)

22шт.

10

F1694

SHEAVE - cutter drive, driven

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. socket head set

2шт.

11

O5685HT

KEY - (5/16" x 5/16" x 1-1/2")

1шт.

12

F19528

SHAFT - cutter

1шт.

F84273

BEARING - complete, cutter shaft

1шт.

13

F84274

BEARING

- cutter shaft

1шт.

14

F21378

COLLAR

1шт.

84-57

SCREW - 5/16" - 24 x 7/16" hex set

2шт.

15

F1695

HOUSING - bearing

1шт.

16

F21379

CARRIAGE BOLT

RETAINER - race

1шт.

17

F21380

SPRING

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- 1/2" x 1-1/4" N.C. hex.; nut (25-108) L.W. (92-8)

8шт.

19

F13180

PANEL - side, R.H.

1шт.

20

F13184

PLATE - hinge

2шт.

21

F13186

BRACE - spreader pan

2шт.

22

F22019

PAN - spreader

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

; Nut (129-102) L.W. (192-20) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-21) fl. wshr. (195-525) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" truss hd.; nut (129-101) L.W. (192-19)

16шт.

23

F13188

WING - (Long) R.H. deflector

3шт.

24

F19536

WING - (Short) R.H. deflector

1шт.

25

F19535

WING - (Short) L.H. deflector

1шт.

26

F13187

WING - (Long) L.H. deflector

3шт.

27

F22018

PANEL - rear

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Spinlock nut (191-904) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

28

F13168

PANEL - side, L.H.

1шт.

29

F21900

PANEL - rear mounting

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

; Nut (192-102) L.W. (192-20) Hex, 5/16"-18 x 5/8", G5, Full Thd

10шт.

30

F84606

PANEL - L.H. mounting

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

F22016

SHEET - bottom

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Spinlock nut (191-904) Hex, 5/16"-18 x 5/8", G5, Full Thd

12шт.

32

F82872

FRAME - retarder knife

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

; Nut (25-108) L.W. (92-8) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

33

F22017

SHEET - front

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Spinlock nut (191-904) Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

77-510

SCREW,Spcl, #6

- 5/16" x 5/8" N.C. truss hd. mach.; and spinlock nut (191-904)

9шт.

34

F19527

KNIFE

- retarder

10шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

10шт.

35

F84607

PANEL - R.H. mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.
