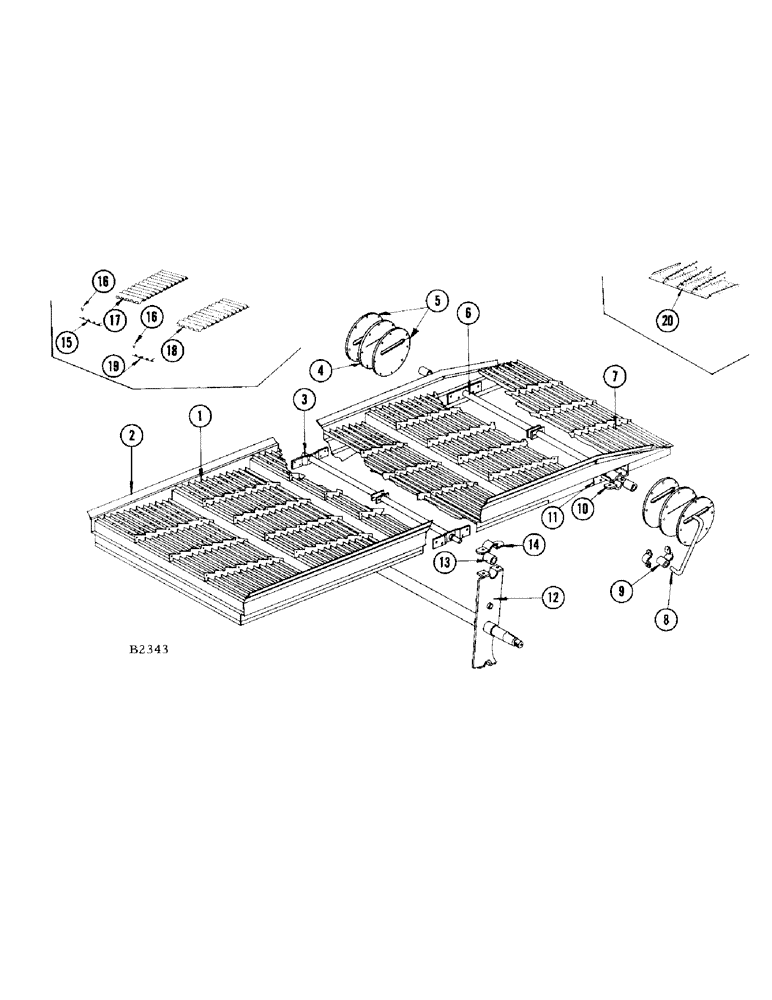

Запчасти Case IH 460 (062) - STRAWRACK, STRAWRACK GRID COVER ATTACHMENT (72) - SEPARATION

1

F83992

STRAWRACK

1шт.

2

F16197

SEAL - strip

2шт.

128-572

STAPLE - 3/8" x .048 gal. Bostich

90шт.

3

F80909

PIPE - rear cross

2шт.

15-612

BOLT (SPREADER)

BOLT - 5/16" x 3/4" N.F. hex.; nut 925-115) L.W. (92-5)

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

8шт.

4

F21497

COVER - slot

2шт.

5

F21498

COVER

- swinger arm

4шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

16шт.

131-107

NUT

- 1/4" - 20 "J" speed nut

12шт.

25-104

NUT,1/4"-20, G5

and L.W. (92-4) 1/4"-20, G5

4шт.

6

F80908

PIPE - front cross

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

7

F83994

GRID - removable, strawrack

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

24шт.

8

F22497

ARM

- swinger (Replaces F18453 when stocks exhausted)

2шт.

F18453

ARM - swinger (Replaced by F22497 when stocks exhausted)

2шт.

9

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, swinger arms

4шт.

F22498

WASHER - For F22497 arm

4шт.

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

10

O770BF

STRAP

CLAMP - swinger arms

6шт.

14-250

BOLT - 5/16" x 1-1/4" N.F. hex.; nut (25-115) L.W. (92-5)

8шт.

11

F82432

CLAMP - support

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

8шт.

12

F88433

SHAFT - rocker (Replaces F83848 when stocks exhausted)

1шт.

F83848

SHAFT - rocker (Replaced by F88433 when stocks exhausted)

1шт.

13

F16808

BUSHING

- torsion

2шт.

14

O770BF

STRAP

CLAMP - rocker shaft

2шт.

14-250

BOLT - 5/16" x 1-1/4" N.F. hex.; nut (25-115) L.W. (92-5)

4шт.

15

F21663

CLAMP - narrow cover, strawrack grid cover attachment

10шт.

16

F21193

STUD - tri mount, strawrack grid cover attachment

18шт.

17

F21661

COVER - grid, narrow rear, strawrack grid cover attachment

5шт.

18

F21660

COVER - grid, wide rear, strawrack grid cover attachment

4шт.

19

F21662

CLAMP - wide cover, strawrack grid cover attachment

8шт.

20

F83981

GRILLE ASSY

GRID - removable, front, strawrack grid cover attachment

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex.; nut (129-121) L.W. (192-19), strawrack grid cover attachment

24шт.
